Crate CA30D User Manual

5
CA30D Acoustic Amplifier

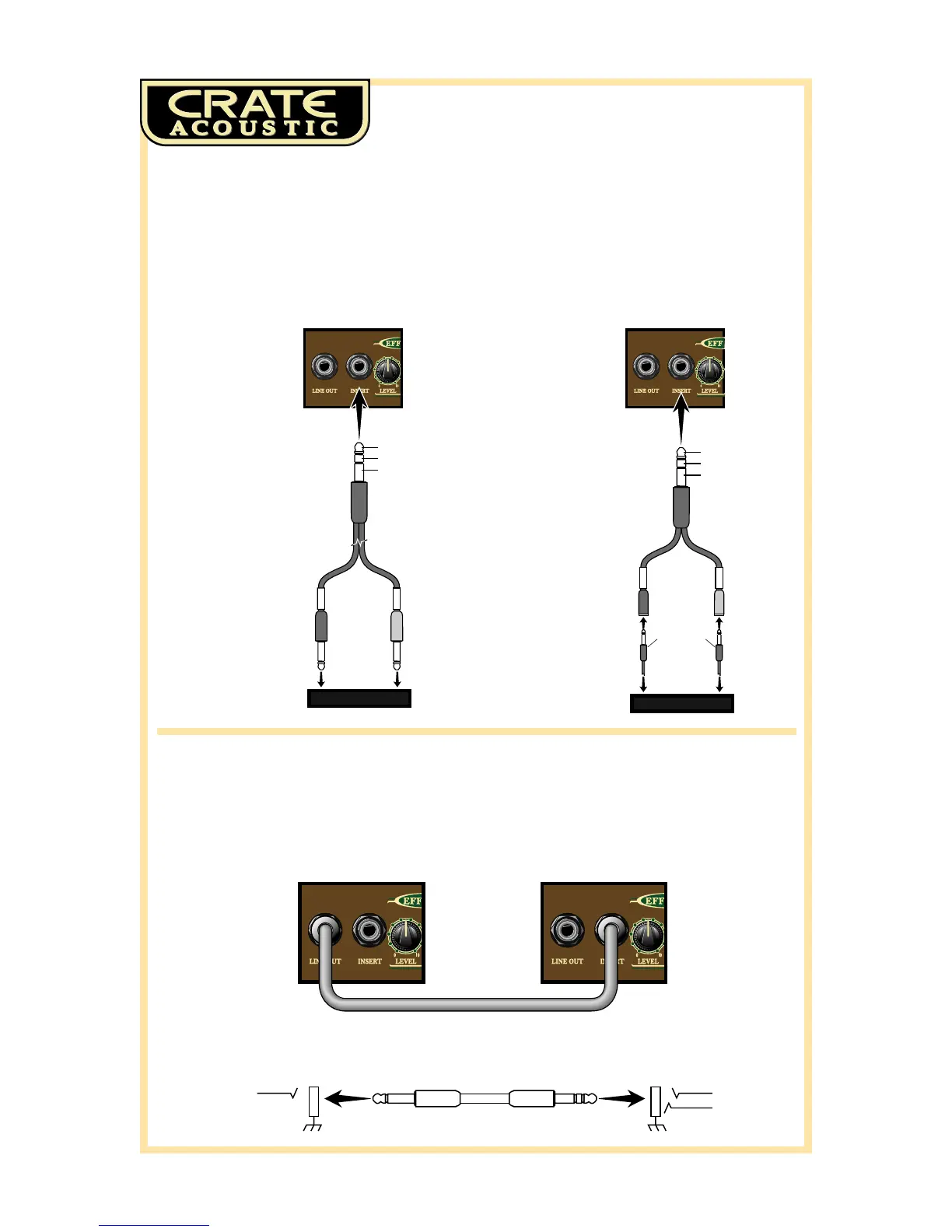

Connecting to the Insert Jack:
The Insert jack (#3) allows you to patch external effects into the amplifier just prior to
its power amp stage. To connect the effect to the Insert jack use Crate’s STP201, STP202,
or STP203 stereo-to-mono Y-cord, ar an adapter such as Crate’s YPP117 and two shielded
signal cables terminated with 1/4” tip/sleeve connectors as shown below.
TIP = RETURN
RING = SEND
SLEEVE = GROUN
D
(STP201, 3'
STP202, 6'
STP203, 9')
(YPP117)
(1/4"-TO-1/4"
MONO CABLES)
to
effect
"OUT"
jack
to
effect
"IN"
jack
RING
RING
TIP
TIP
to
effect
"OUT"
jack
to
effect
"IN"
jack
TIP = RETURN
RING = SEND
SLEEVE = GROUND
For longer runs, use
Crate's YPP117 stereo-
to-mono 1/4" adapter
and two mono 1/4"
signal cables to connect
an effects device to the
Insert jack:
For short runs,
use Crate's STP201,
STP202 or STP203
adapter to connect an
effects device to the
Insert jack:
External Effect
External Effect
“Chaining” Amplifiers:
The Line Out jack (#2) on one CA30D can be connected to the Insert jack of another, to
chain the amps together as shown below. (This frees up the Input jacks of the second
amplifier.) Use a shielded cable terminated with 1/4” tip/sleeve connectors as shown.
AMP 2:
AMP 1: AMP 2:
INSERT
AMP 1:
LINE OUT

Crate CA30D Specifications

Power

output power rating	30 watts RMS @ 1% distortion
power requirements	120VAC, 60Hz, 50VA 100/115VAC, 50/60Hz, 50VA 230VAC, 50/60Hz, 50VA

Frequency and Impedance

high frequency adjustment	+/-15dB @ 10kHz
mid frequency adjustment	+/-15dB @ 400–1.2kHz (Contour)
low frequency adjustment	+/-15dB @ 80Hz
input impedance	1.5M ohm
input sensitivity	20mV RMS
max input signal	10v RMS (28v peak to peak)
insert jack input impedance	44k ohm
insert jack output impedance	2.2k ohm
line out output impedance	2.2k ohm (Lo-Z), 2.2k ohm (Hi-Z)

Speaker

internal speaker	8” Poly cone coaxial with dome tweeter
speaker impedance	4 ohms
speaker power	50 watts
voice coil	1”

Weight and Dimensions

height	13”
width	15”
depth	12”
weight	30 lbs
