Applications: DJ Setup:

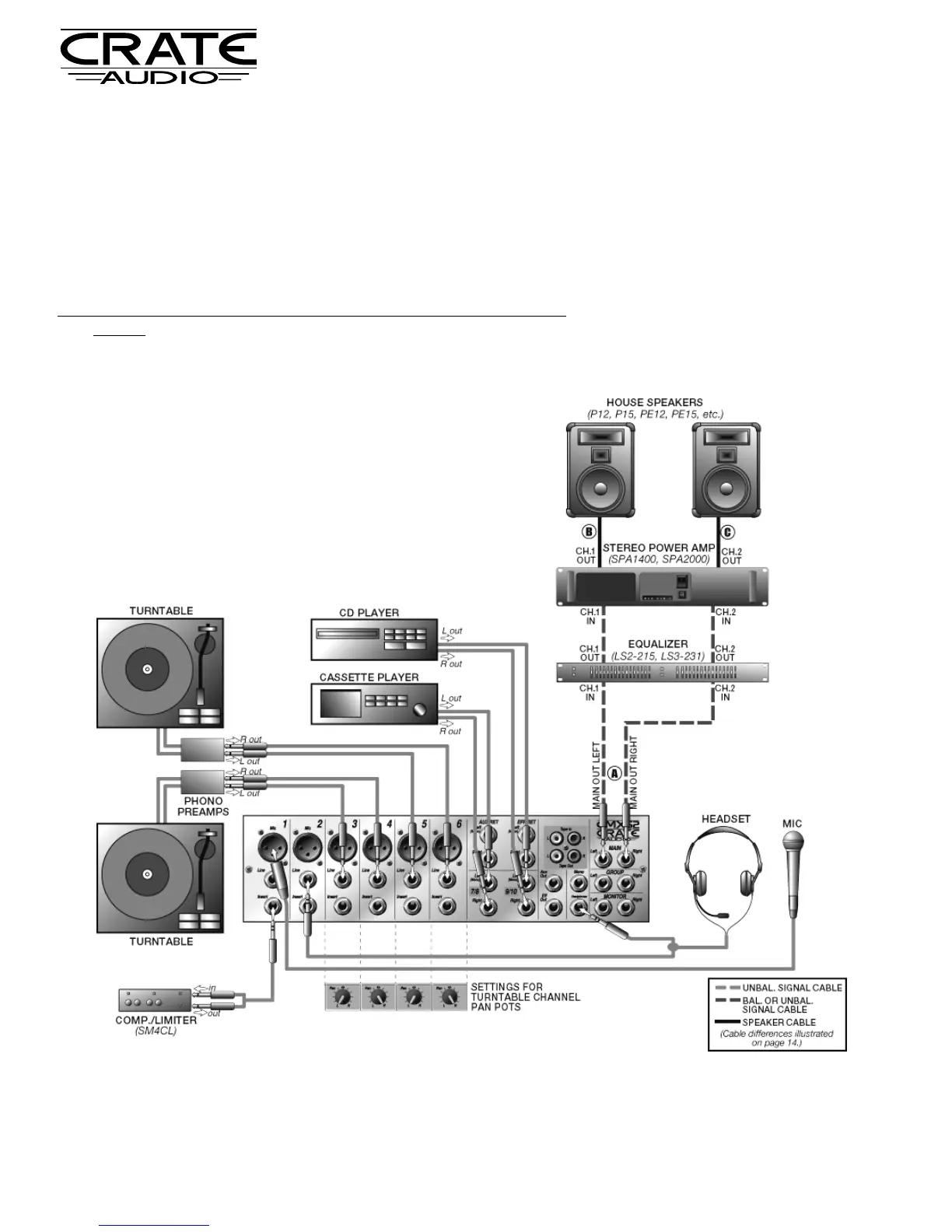

In this example the mixer is connected to a stereo power amplifier which drives the house speakers.
Connect a pair of signal cables between the mixer’s Main Left and Right jacks and the stereo power amplifier’s* Channel
1 and Channel 2 Input jacks (A).
Connect a speaker cable between the power amp’s Channel 1 Speaker Output and one of the house speakers (B). Connect
another speaker cable between the power amp’s Channel 2 Speaker Output and the other house speaker (C).
Use the mixer’s Main L/R fader to adjust the house volume level. (To keep the turntable signals in true stereo, the Pan pots for
the left channels must be rotated fully counterclockwise and the Pan pots for the right channels must be rotated fully clockwise.
*Two matched
mono amplifiers may be used in place of the stereo power amplifier.
CMX62 Stereo Console Mixer

Crate CMX62 Specifications

System Inputs

mono mic/line input channels	6
stereo line input channels	2
stereo aux return	1

Channel Specifications

Low-Z Mic load impedance	1k ohm
High-Z Line load impedance	10k ohm
High-Z Line 2 load impedance	22k ohm

Noise and Distortion

Equivalent input noise	< -129dB
Common mode rejection	-90dB min., -70dB @ 50Hz
Total harmonic distortion	< 0.1% @ 1kHz

Power Requirements

power supply voltage	16.8VAC x 2
power supply current	1A
phantom power	+48VDC

Size and Weight

height	2.75 inches
width	11.625 inches
depth	13 inches
weight	11 lbs
