Crate CMX62 User Manual

11

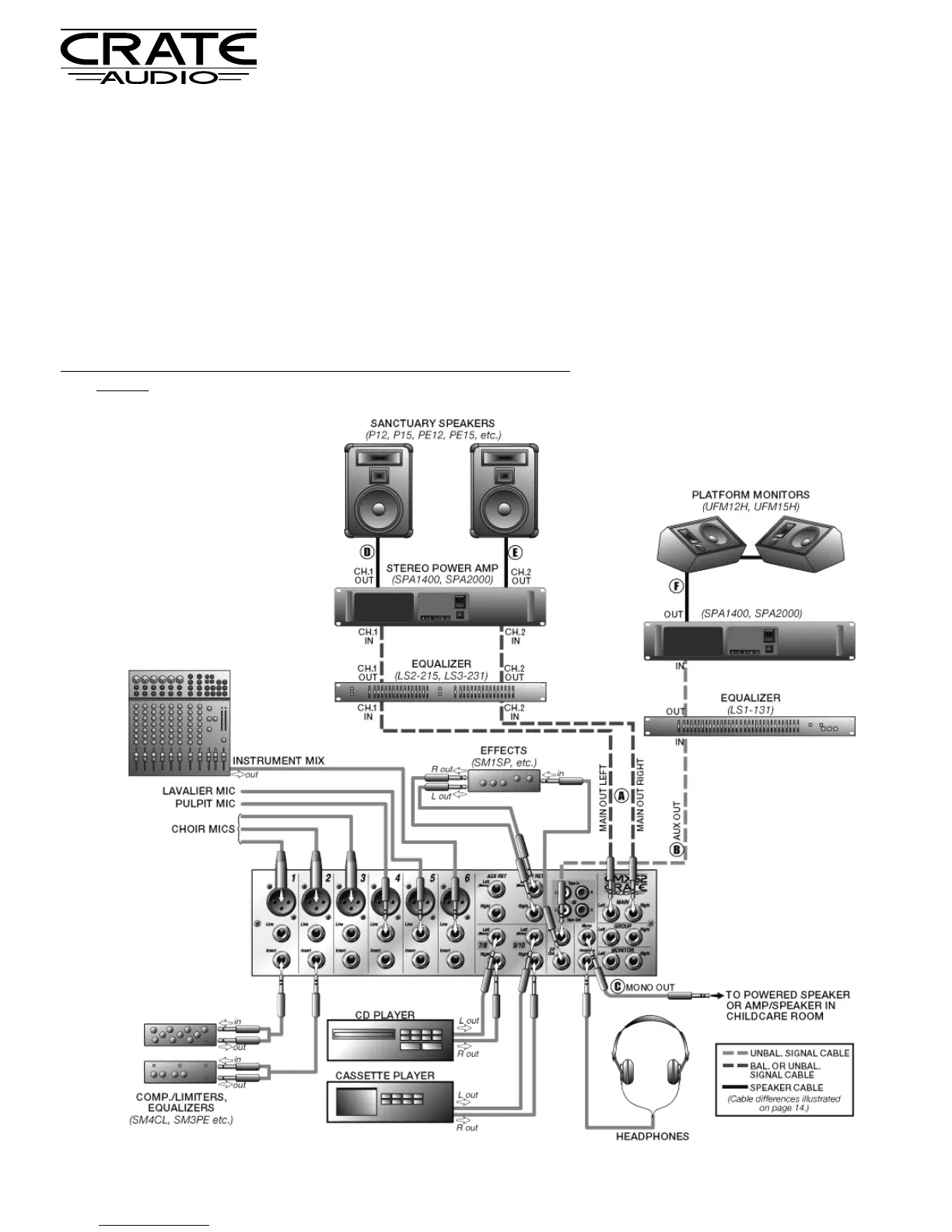

Applications: House of Worship:
In this example the mixer’s Main Outs are used for the sanctuary mix, the Aux outs are used for a platform mix, and a
mono signal is provided for the childcare room (or other remote location).
Connect signal cables between the mixer’s Main Left and Right jacks and the Input jacks of the sanctuary speakers’ stereo
power amp* (A). Connect another set of signal cable between the mixer’s Aux Out jack between the Input jack of the moni-
tor speakers’ power amp (B). Connect another signal cable between the mixer’s Mono Out jack and a powered speaker sys-
tem or an amplifier/speaker combination for the childcare room (C).
Connect speaker cables between the sanctuary power amp’s Speaker Outputs and the sanctuary speakers (D,E). Connect
another speaker cable between the monitor power amp’s Speaker Output and the platform monitor speakers (E,F).
Use the Main L/R fader to adust the level of the sanctuary speakers. Use the Aux controls to adjust the mix going to the
platform monitors. Use the Mono control to adjust the level of the signal sent to any remote location (childcare room, etc.).
*Two matched
mono amplifiers may be used in place of the stereo power amplifier.
CMX62 Stereo Console Mixer

Crate CMX62 Specifications

System Inputs

mono mic/line input channels	6
stereo line input channels	2
stereo aux return	1

Channel Specifications

Low-Z Mic load impedance	1k ohm
High-Z Line load impedance	10k ohm
High-Z Line 2 load impedance	22k ohm

Noise and Distortion

Equivalent input noise	< -129dB
Common mode rejection	-90dB min., -70dB @ 50Hz
Total harmonic distortion	< 0.1% @ 1kHz

Power Requirements

power supply voltage	16.8VAC x 2
power supply current	1A
phantom power	+48VDC

Size and Weight

height	2.75 inches
width	11.625 inches
depth	13 inches
weight	11 lbs
