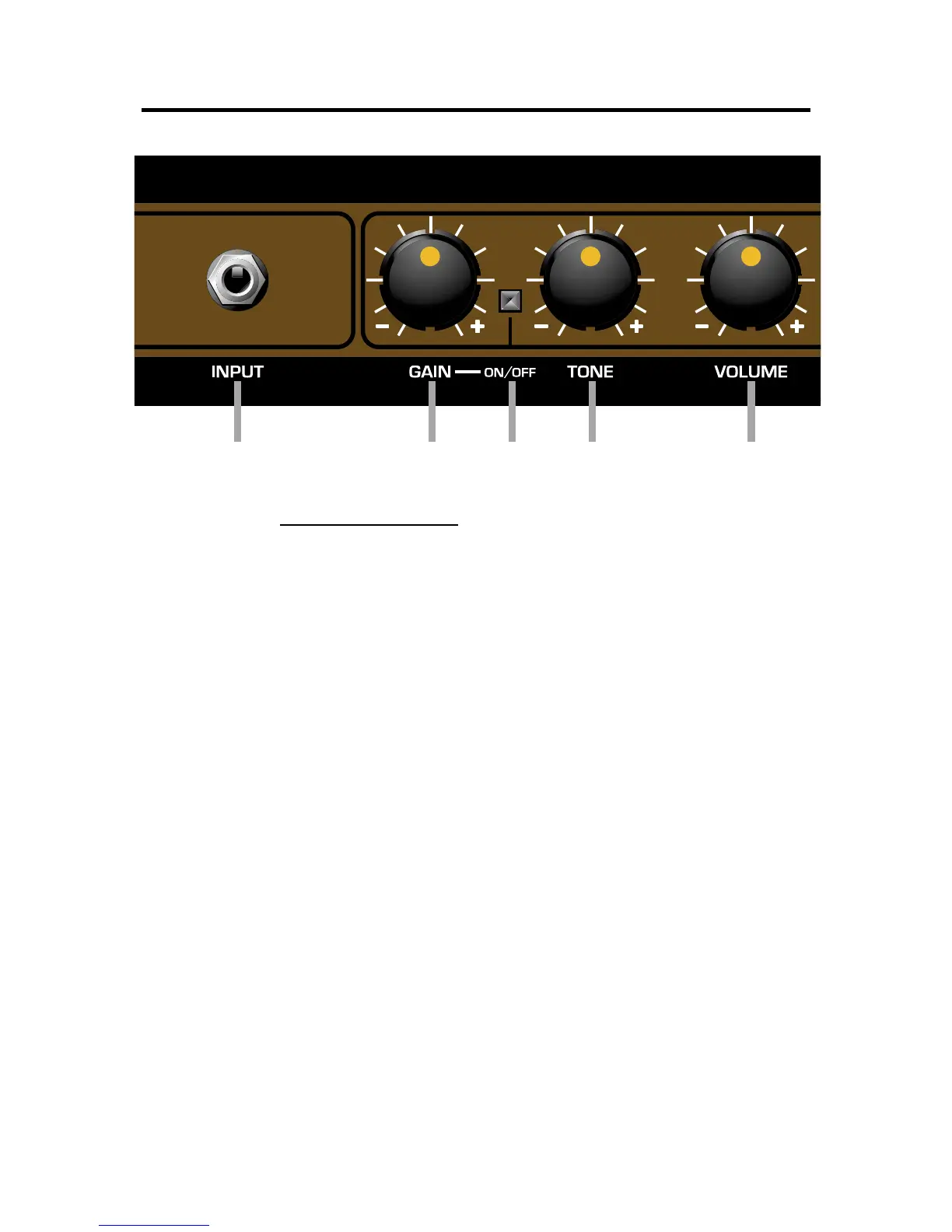

The Front Panel:
1. Input: Connect your instrument here by
means of a shielded signal cable.
2. Gain: This control is only active when the
Gain On/Off switch (#3) is depressed. Use the
Gain control to boost the gain of the input sig-
nal. The maximum amount of additional gain
available is 30dB with this control rotated fully
clockwise.
3. Gain On/Off: This switch, when depressed,
activates the Gain control (#2).
4. Tone: Use this control to adjust the tonal
variations of the amplifier.
5. Volume: Use this control to adjust the output
level of the amplifier. At lower settings of the
Volume control the sound is usually brighter,
and the Tone control (#4) has more effect. Used
in conjunction with the Gain control (#2, switch
#3 depressed), this offers many sonic possibili-
ties. (See Suggested Settings, page 10.)
CRATE CR-1 LIMITED EDITION GUITAR AMPLIFIER
