Crate GFX-65T User Manual

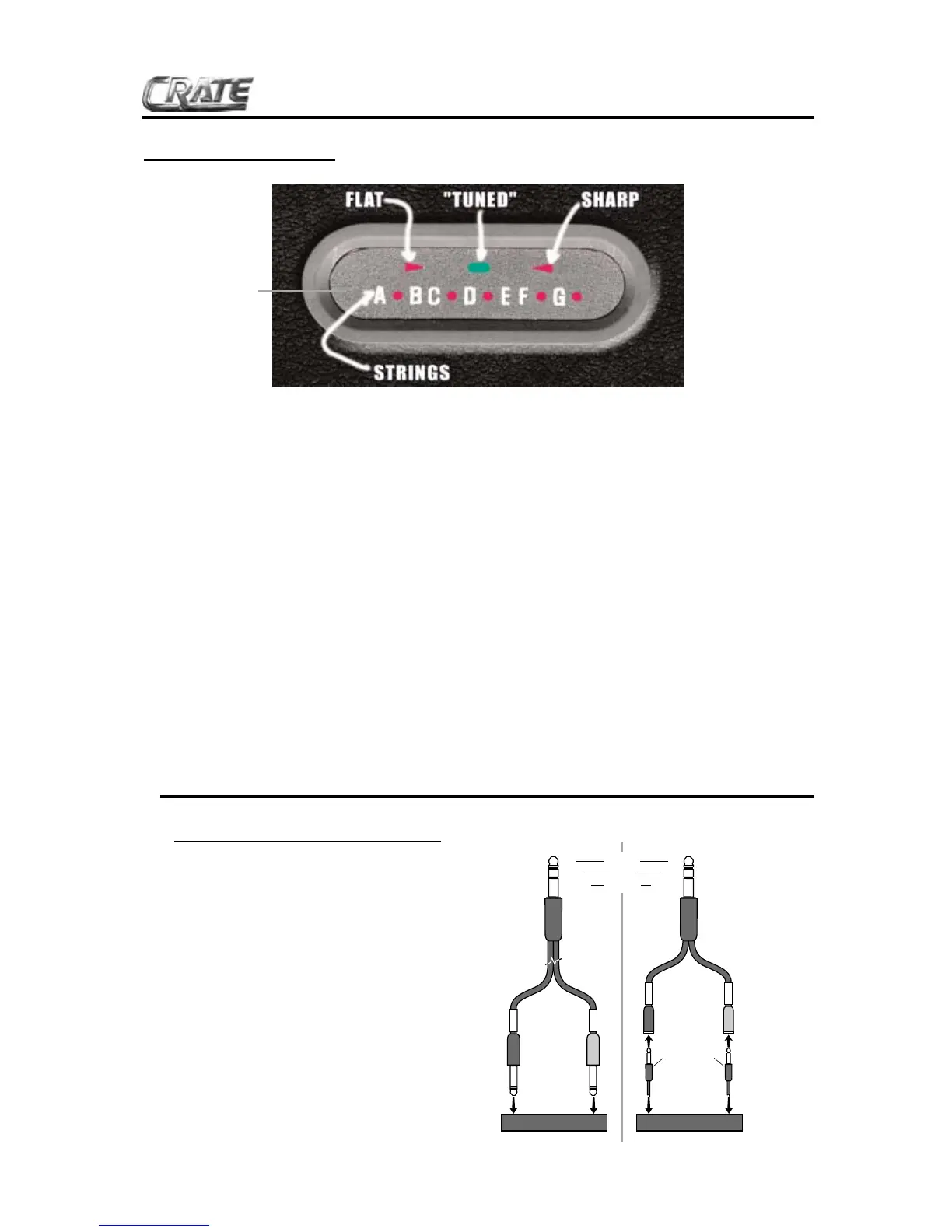

The Electronic Tuner:
5
20. ELECTRONIC TUNER (top panel): This active electronic tuner is on whenever the amplifier is turned
on, allowing you constant, “real-time” tuning. The bottom row of LEDs indicate which string is being tuned,
while the top row of LEDs are your guiding lights: use the flat and sharp indicators until the center LED illu-
minates. This indicates a properly tuned string.
21: AC LINE CORD (rear panel, not shown): This grounded power cord is to be plugged into a ground-
ed power outlet, wired to current electrical codes and compatible with the voltage, power, and frequency
requirements stated on the rear panel. Do not attempt to defeat the safety ground connection.
21: FUSE (rear panel, not shown): The fuse protects the amplifier from damages caused by a faulty
AC power source and/or other problems. If the fuse opens, replace it ONLY with the same size and type.
If fuses continue to fail, check the AC source – if the source is okay, contact your Crate dealer for serv-
ice information.
22: CHANNEL SELECT / GAIN FOOTSWITCH JACK (rear panel, not shown): Use this jack to con-
nect the stereo 1/4” plug of the supplied three-button footswitch for remote control of channel selection
and gain selection.
23: REVERB FOOTSWITCH JACK (rear panel, not shown): Use this jack to connect the mono 1/4”
plug of the supplied three-button footswitch for remote control of DSP on and off.
CONNECTING T
O THE INSERT JACK:
The Insert jack (#16) allows
you to patch an external
effects device into the amplifier
prior to its power amp stage.
Use Crate’s STP201, STP202
or STP203 stereo-to-mono Y
cord or an adapter such as
Crate’s YPP117 and two 1/4”
mono signal cables to connect
the effect as shown to the
immediate right.
TIP
RING
SLEEVE
RETURN
SEND
GROUND
Stereo-to-mono Y-cord:
to Insert
jack
to Insert
jack
(STP201, 3'
STP202, 6'
STP203, 9')
(YPP117)
(1/4"-TO-1/4"
MONO CABLES)
to
effect
"OUT"
jack
to
effect
"IN"
jack
External Effect
TIP
RING
SLEEVE
Y-adapter and 2 cables:
External Effect
RING
RING
TIP
TIP
to
effect
"OUT"
jack
to
effect
"IN"
jack
GFX-65T Guitar Amplifier with DSP & Channel Tracking
20

Crate GFX-65T Specifications

Power

output power rating	65W RMS @ 5% THD, 4Ω, 120 VAC
power requirements	120 VAC, 60Hz, 90VA; 100/115VAC, 50/60Hz, 90VA

Audio Characteristics

input impedance	470kΩ
total system gain overdrive channel gain 1	88dB, all controls @10
total system gain overdrive channel gain 2	110dB
total system gain clean channel	58dB, all controls @10
maximum input signal accepted	7 volts peak-to-peak

Dimensions and Weight

speaker size and rating	12”, 4Ω
size	17-1/2” H x 20” W x 11” D
weight	34 lbs
