Crate GFX-65T User Manual

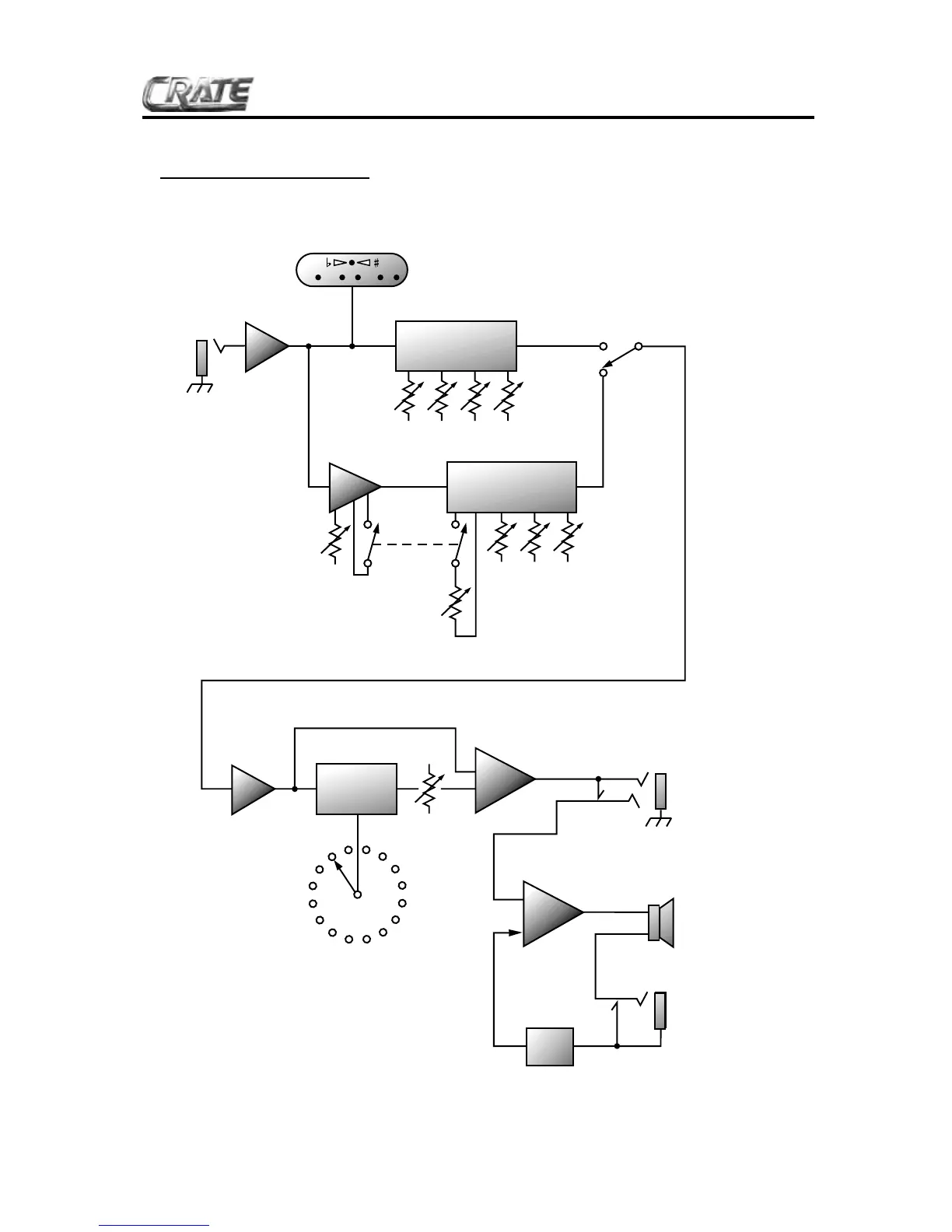

System Block Diagram:
7
INPUT
CHANNEL
SELECT
FLEX WAVE
STAGE
LOWLEVEL MID HIGH
LOW
SHAPE
HIGH LEVEL
LEVEL
MODE
GAIN
GAIN
SHAPE
ACTIVE
BUFFER
MIX
AMP
INSERT
CLEAN
CHANNEL
DSP
OVERDRIVE
CHANNEL
DAMPING
CIRCUIT
POWER
AMP
EXT.
SPEAKER
SPEAKE
R
EQ
TUNER
A BC D EF G
GFX-65T Guitar Amplifier with DSP & Channel Tracking

Crate GFX-65T Specifications

Power

output power rating	65W RMS @ 5% THD, 4Ω, 120 VAC
power requirements	120 VAC, 60Hz, 90VA; 100/115VAC, 50/60Hz, 90VA

Audio Characteristics

input impedance	470kΩ
total system gain overdrive channel gain 1	88dB, all controls @10
total system gain overdrive channel gain 2	110dB
total system gain clean channel	58dB, all controls @10
maximum input signal accepted	7 volts peak-to-peak

Dimensions and Weight

speaker size and rating	12”, 4Ω
size	17-1/2” H x 20” W x 11” D
weight	34 lbs
