Crate GFX-65T User Manual

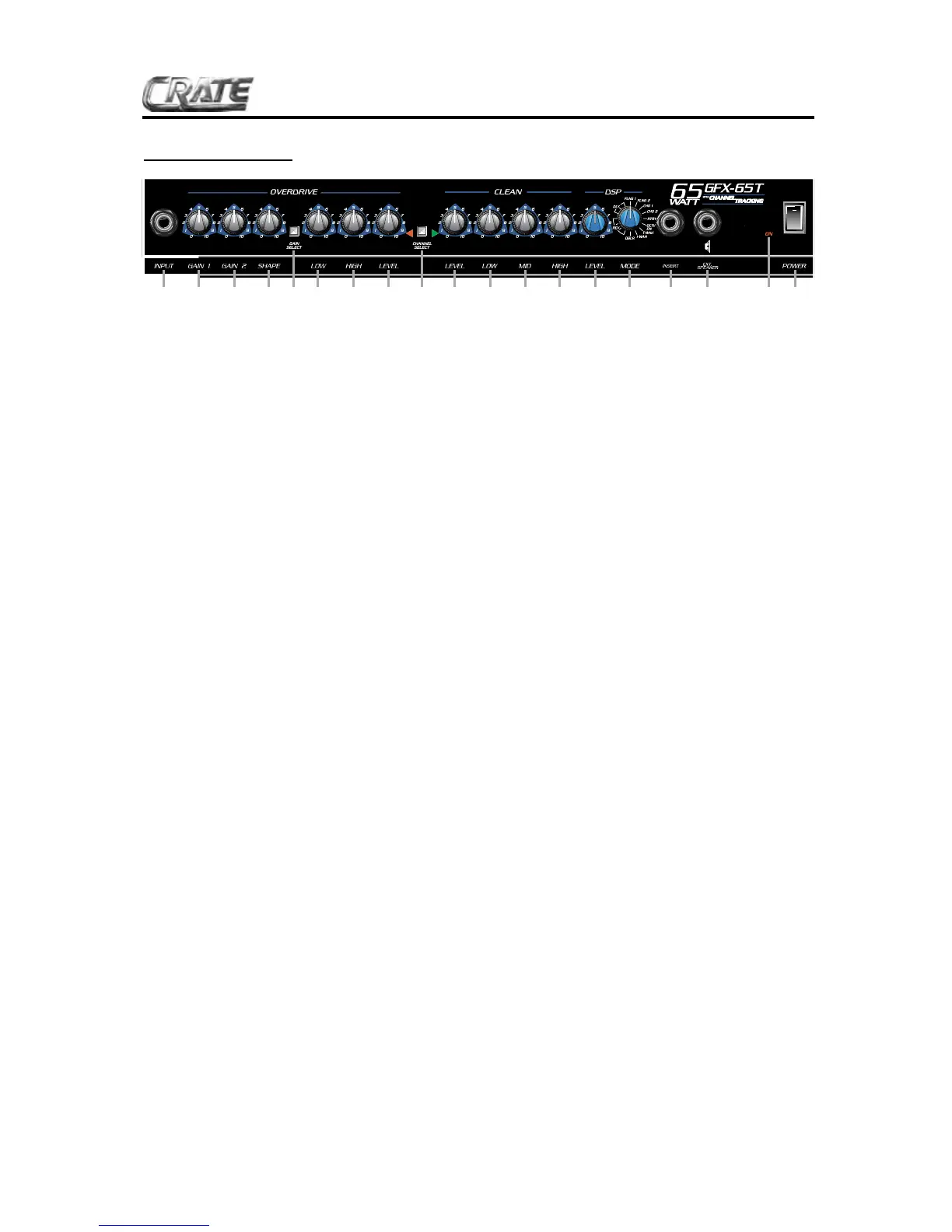

The Front Panel:
4
1 2 3 4 6 7 8 10 11 12 13 14 15 16 17 19185 9
1: INPUT: Use this 1/4” jack to connect your guitar to the amplifier by means of a shielded instrument cable.
OVERDRIVE CHANNEL: A high gain channel giving you sounds from a slight edge to serious overdrive.
2: GAIN 1: Use this control to adjust the amount of light distortion for the Overdrive channel. Gain 1 pro-
duces less intense distortion than Gain 2 (#3) and is active when the Gain switch (#5) is in the out position.
3: GAIN 2: Use this control to adjust the amount of heavy distortion for the Overdrive channel. Gain 2 pro-
duces more intense distortion than Gain 1 (#2) and is active when the Gain switch (#5) is depressed.
4: SHAPE: Use this control to “dial in” the tone for the Overdrive channel when Gain 2 is selected. Rotating
the control counterclockwise enhances the mid frequencies, while rotating the control clockwise enhances
the low and high frequencies. This control is active only when Gain 2 is selected.
5: GAIN SELECT: Use this switch to select which gain control is active for the Overdrive channel. With the
switch in the out position, Gain 1 is selected. When the switch is depressed, Gain 2 is selected.
6: LOW: Use this control to adjust the low frequency level of the Overdrive channel.
7: HIGH: Use this control to adjust the high frequency level of the Overdrive channel.
8: LEVEL: Use this control to adjust the output level of the Overdrive channel.
9: CHANNEL SWITCH: Use this switch to select either channel. With the switch in the out position, the
Clean channel is selected. When the switch is depressed, the Overdrive channel is selected.
CLEAN CHANNEL: A normal gain channel designed to give you crystal clear sounds to medium distortion.
10: LEVEL: Use this control to adjust the output level of the Clean channel.
11: LOW: Use this control to adjust the low frequency level of the Clean channel.
12: MID: Use this control to adjust the midrange frequency level of the Clean channel.
13: HIGH: Use this control to adjust the high frequency level of the Clean channel.
14: DSP LEVEL: Use this control to adjust the amount of digital effect: in its fully counterclockwise posi-
tion the signal will be “dry” (without any effect). As you rotate the control clockwise the amount of effect
increases.
15: DSP MODE: Use this control to select one of the 16 built-in digital effects. Alisting of the effects is shown
on page 3 of this manual.
16: INSERT: Use this jack to connect an external effects device to the amplifier. Use a stereo 1/4” male Y
connector: ring = send, tip = return, sleeve = ground. (Refer to the illustration at the bottom of page 5.)
17: EXTERNAL SPEAKER: Use this jack to connect the amplifier to an external speaker. The internal
speaker is disconnected when this jack is used. The minimum impedance for the external speaker is 4 ohms.
18: ON LED: This LED will illuminate when power is applied to the amplifier.
19: POWER: Use this switch to turn the amplifier on (top of the switch depressed) and off (bottom of the
switch depressed).
GFX-65T Guitar Amplifier with DSP & Channel Tracking

Crate GFX-65T Specifications

Power

output power rating	65W RMS @ 5% THD, 4Ω, 120 VAC
power requirements	120 VAC, 60Hz, 90VA; 100/115VAC, 50/60Hz, 90VA

Audio Characteristics

input impedance	470kΩ
total system gain overdrive channel gain 1	88dB, all controls @10
total system gain overdrive channel gain 2	110dB
total system gain clean channel	58dB, all controls @10
maximum input signal accepted	7 volts peak-to-peak

Dimensions and Weight

speaker size and rating	12”, 4Ω
size	17-1/2” H x 20” W x 11” D
weight	34 lbs
