Crate V58 User Manual

5
V58 Guitar Amplifier
The Line Out jack can also serve as an Insert jack, allowing you to
patch external effects into the amplifier prior to its power amp stage.
Use St. Louis Music’s STP201, STP202 or STP203 stereo-to-mono
Y-cord or an adapter such as St. Louis Music’s YPP117 and two 1/4”
mono shielded cables to connect to the effect as shown:

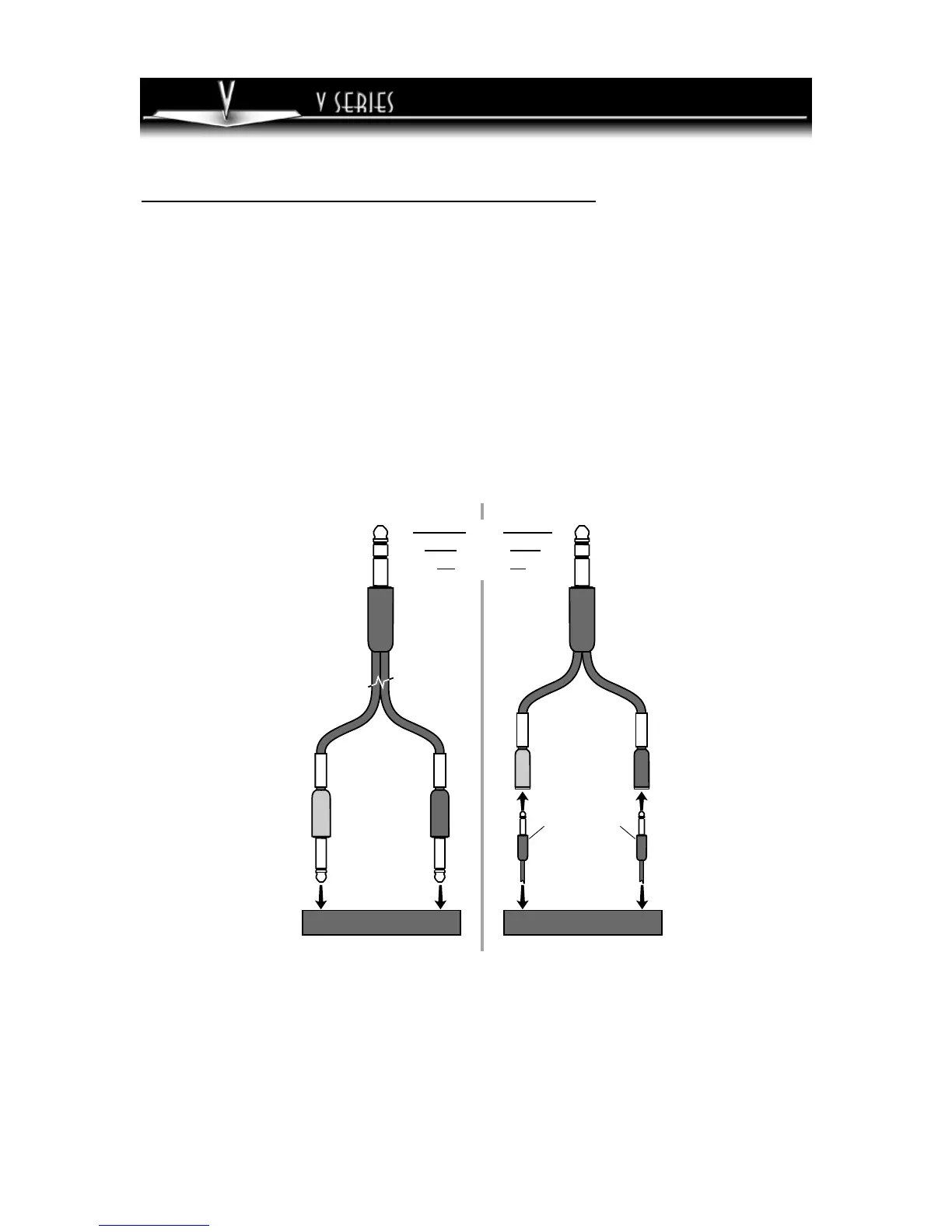

Using the Line Out Jack as an Insert Jack:
TIP
RING
SLEEVE
SEND
RETURN
GROUND
Stereo-to-mono Y-cord:
to Line Out
jack
to Line Out
jack
(STP201, 3'
STP202, 6'
STP203, 9')
(YPP117)
(1/4"-TO-1/4"
MONO SHIELDED
CABLES)
to
effect
"OUT"
jack
to
effect
"IN"
jack
External Effect
TIP
RING
SLEEVE
Y-adapter and 2 cables:
External Effect
TIP
TIP
RING
RING
to
effect
"OUT"
jack
to
effect
"IN"
jack
