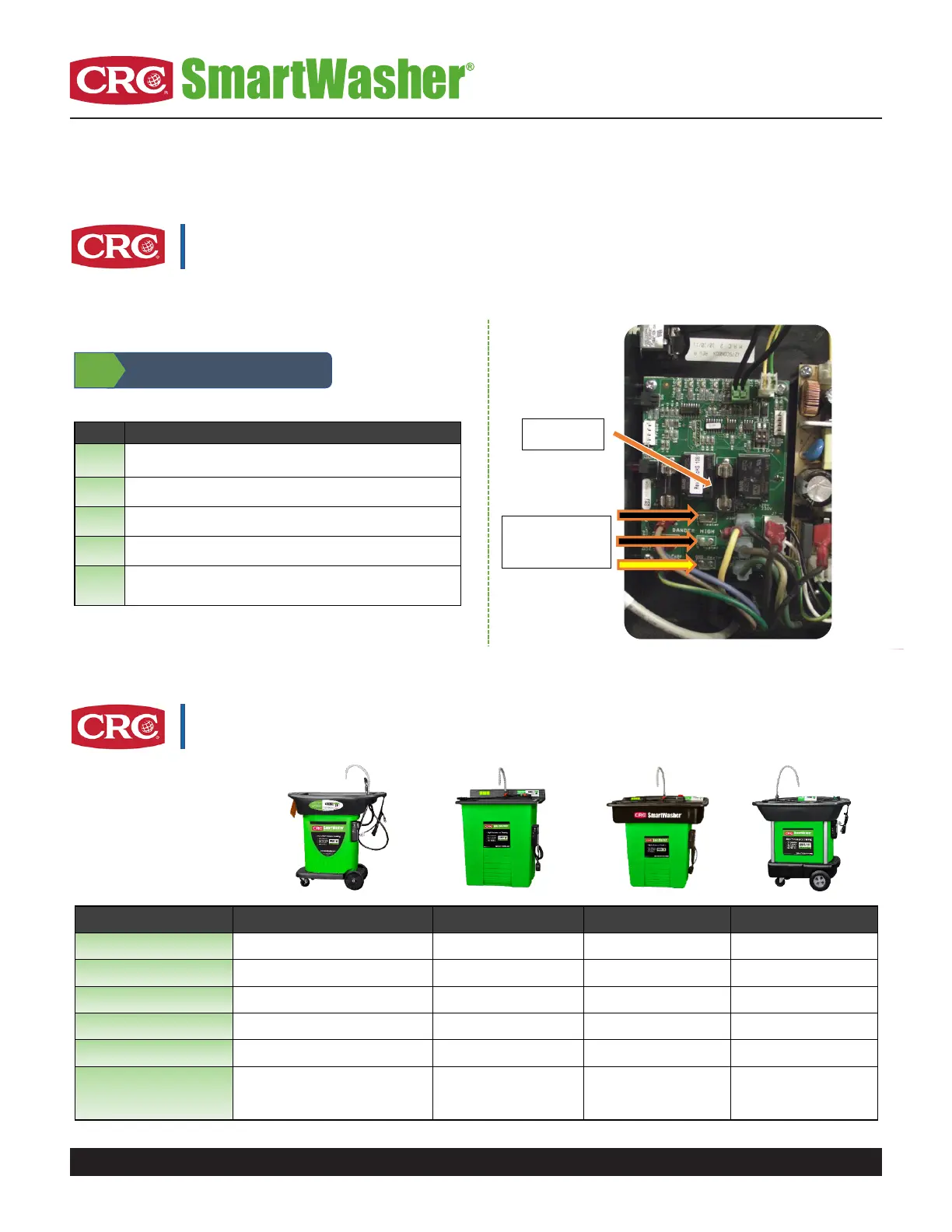

Troubleshooting Continued
Issue: Machine Does Not Heat (Part 3)
Process StepsProcess
Check for 120 volts coming out of the circuit board at the connection terminals.
Unplug the 2 black and 1 yellow wires.
A
If 120 volts is present out of the top and bottom terminals, you will need to replace
the heater element.
B
If 120 volts is not present, check for voltage across the fuse. If blown, replace fuse
and heater. Heater spec are 14.1ohms (+/- 1 ohm) across 2 black wires.
C
If the fuse is good and no voltage present, replace the control box. D
Inspect front and back of circuit board for discoloration or burn marks, if so
replace the control board assembly as well.
*
Heater Terminals
Top: (Line) Black
Middle: (Neutral) Black
Bottom: (Ground) Yellow
Heater Fuse
10 AMP Slow Blow
Step
4
Heater LED is on solid and the
OzzyJuice® is cold.
8
Replacement Part Numbers
SW-37SW-28 / XESW-25SW-23Model
1005067 / 147931005065 / 147911005065 / 147911005065 / 14791Probe
1005121 / 148551005073 / 147991005073 / 147991005072 / 14798Heater
1750059 / 147941750059 / 147941750059 / 147941750059 / 14794Heater Fuse
1005140 / 148781004888 / 142851004888 / 142851005141 / 14879Pump
1750060 / 147951750060 / 147951750060 / 147951750060 / 14795Pump Fuse
1005125 / 148591005123 / 148571005123 / 148571005124 / 14858Control Box
