ENGLISH
8
• Choose the suspension bar that best suits your situation.
• Remove the bolt from the bar by removing the pin and thread the canopy (roof trim) and
motor canopy through the hanger bar. Next, route the fan motor wires through the inside of
the hanger bar. Fit the hanger bar to the engine and insert the bolt and cotter pin.

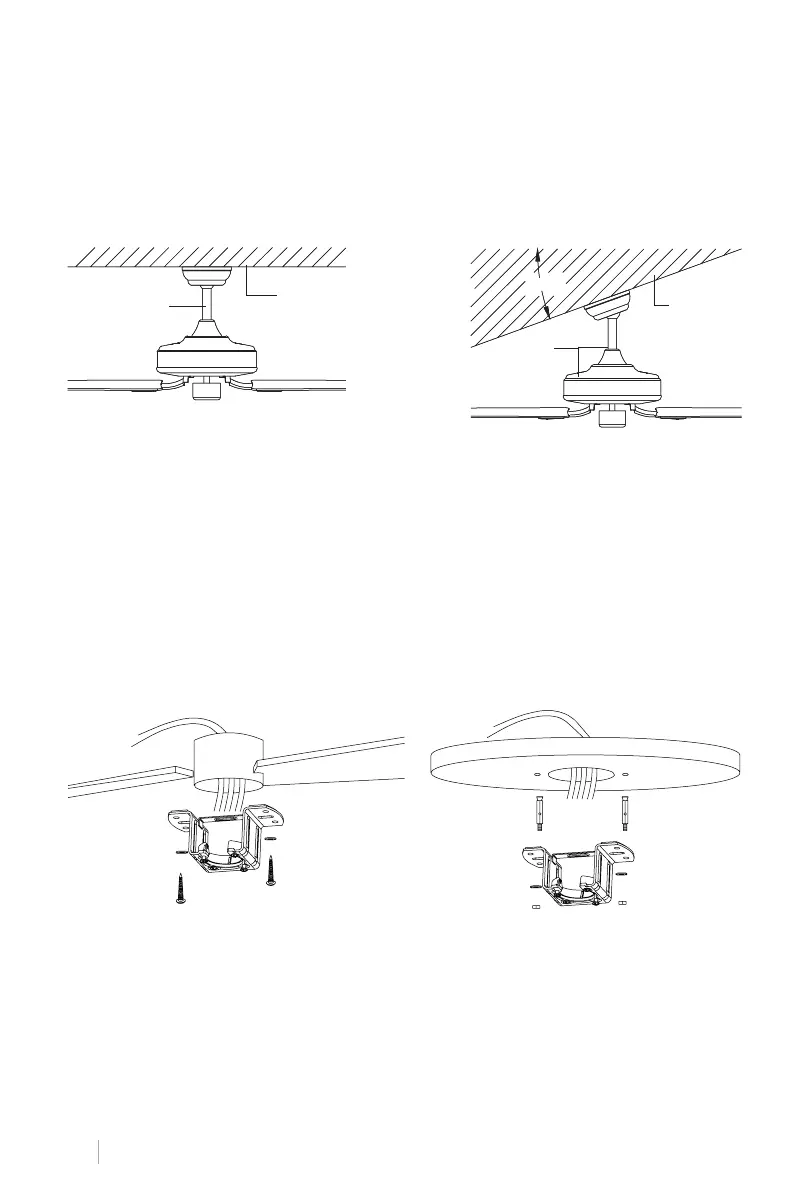

PREPARATION OF THE FAN LOCATION
20°20°
Medium
Traditional
mounting
style
The traditional mount hangs from the
ceiling with a bar.
Medium
Angle mount style
Angle mounting is recommended on sloped
or vaulted ceilings.
• The outlet box and beam must be securely mounted and capable of safely supporting at
least the weight of the fan.
• Do not x the mounting bracket directly on ceilings less than 10mm to avoid the risk of the
screw loosening and coming out.
INSTALLING THE MOUNTING BRACKET
Wood roof
Attach mounting bracket with wood screws
and washers at ceiling joints.
Concrete ceiling
Drill the holes with an 8mm drill bit,
according to the length of the expansion
bolts. Next, x the mounting bracket to the
ceiling with the expansion screws.
To Next Page
