Create WINDLIGHT MINIMAL DC - Fan Assembly Steps; Mounting the Blades; Assembling the Connection Panel; LED Panel and Decorative Screen

ENGLISH
10
Blade arm screw
1
2

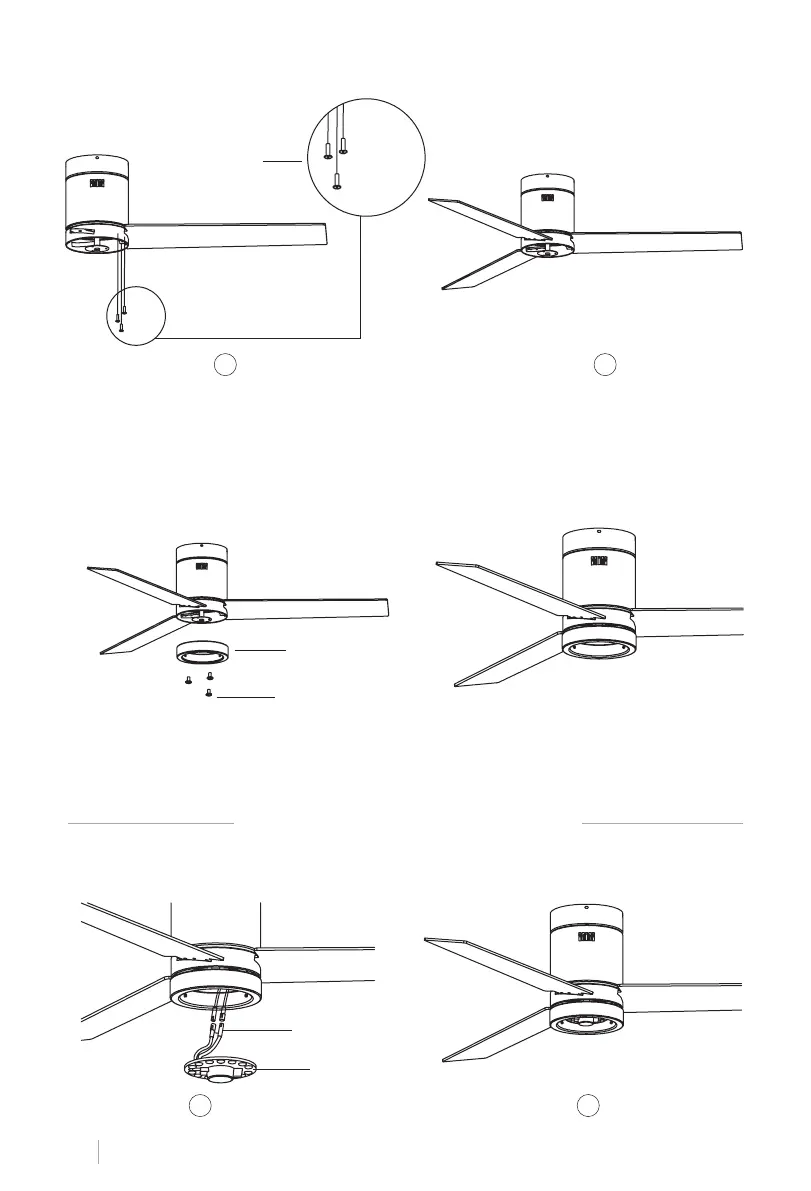

MOUNTING THE BLADES
• TIP: Blade bolt washers can be attached to each bolt prior to installing blades. Align the
juicers on the blades with the screw holes on the motor. Tighten all the screws once you
have hooked the blades. Before permanently xing the screws, repeat this process with
the remaining ones.
Lamp panel
Lamp panel
screw
ASSEMBLING THE CONNECTION PANEL
Attach the connection plate to the bottom of the fan by inserting the heads of the xing
screws into the holes intended for this. Drive in the screws and then secure them.
Pin
LED panel
1
2
CEILING FAN WITH LED LIGHT
LED PANEL AND DECORATIVE SCREEN
Lamp panel
