Create WINDLIGHT MINIMAL DC - Remote Control Connection; Receiver Placement

9
ENGLISH
Attach the motor to the left hook, and then lead the wiring.
• TIP: Someone else should help you hold the ladder and hand you the fan after you get on it.
1
2
3

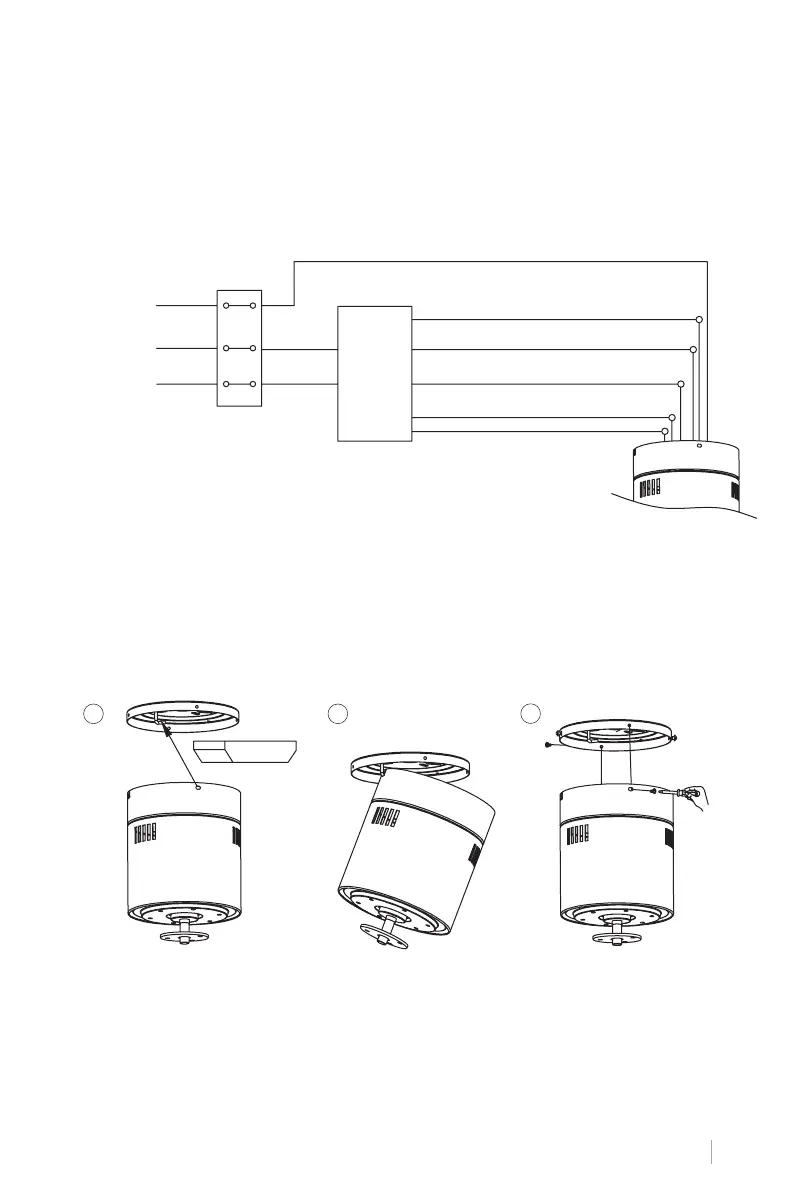

REMOTE CONTROL CONNECTION
RECEIVER PLACEMENT
• Make the connection between the receiver wires and the fan motor wires following the
color indications. Make sure the connection is rm.
DC motor L (red)
Remote
control
receiver
Take
ground
L
N
L input
(black)
Input N
(white)
Neutral N (white)
L clear (blue)
DC motor L (pink)
DC motor L (gray)
Ground (green / yellow)
