5.2.2 Installation of cutting media
This machine is suitable not only for single-sheet media, but also a roll of media。

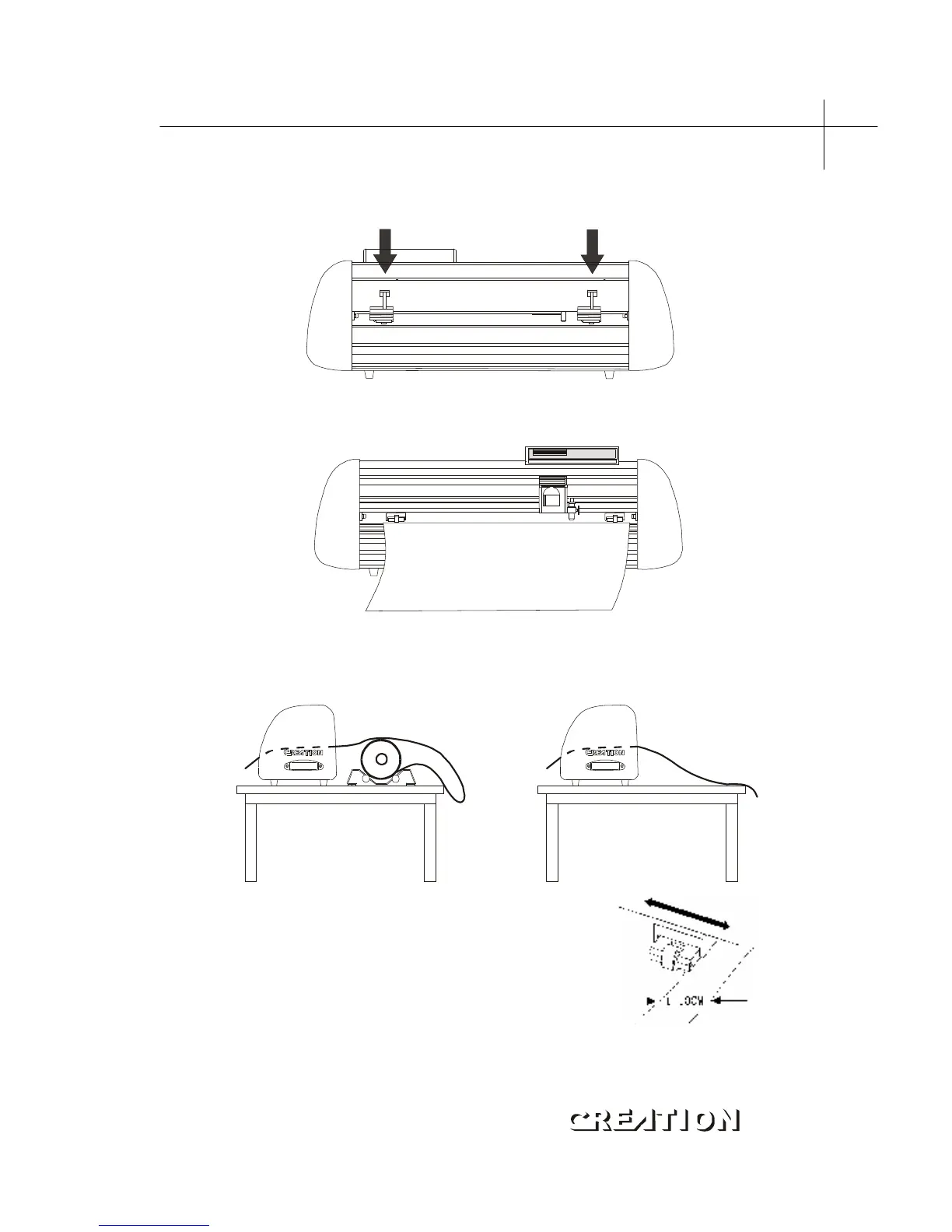

6.2.2.1 Press down the handle of paperweight wheel behind the machine to raise
the paperweight wheel。
6.2.2.2 Insert the media into the space between paperweight wheel and main shaft,
and pull out the media to appropriate length from the front of the host。
Using roll of media Using single sheet of media
Pulling it out to required length Cutting required length from paper roll
6.2.2.3 Adjust horizontal position of paperweight
wheel according to width of paper. a distance
of minimum 1-10CM is set between paper-
weight wheel and paper edge to ensure good
running of paper。
6.2.2.4 Raise two handles of paperweight wheel, to
make paperweight wheel down to press paper。
