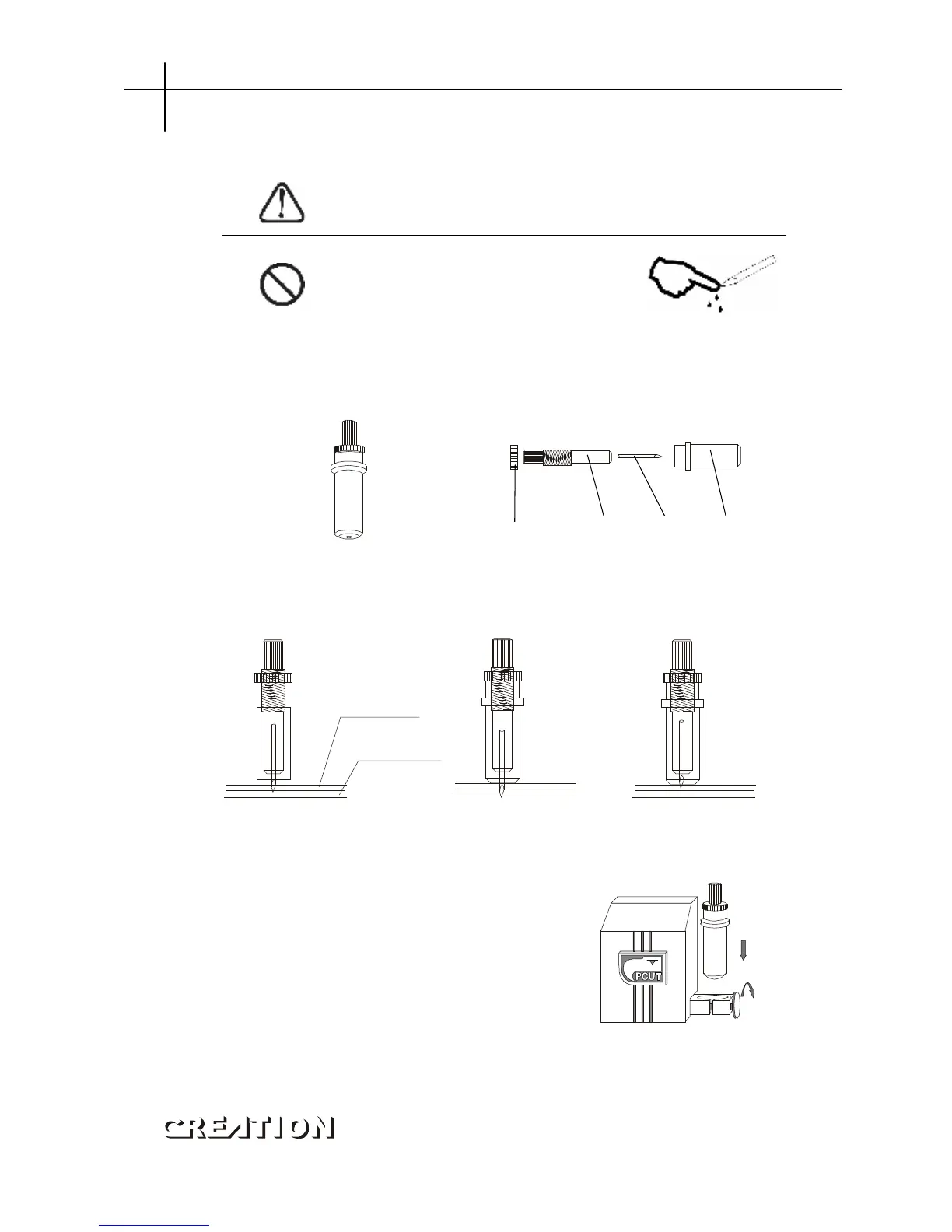

3.2.1 Fit cutter into rotary tool, the knife and tool are as shown in following
drawings:
(front view) (disassembly view)
3.2.2 Adjust the protruding length of the knife top as required for specific cutting
media。
Correct Too long protruding Too short protruding
length of knife tip length of knife tip
3.2.3 (1) Loosen the screw of tool carrier.
(2) Assembly the tool with knife into the tool
carrier。
(3) When the tool is in appropriate position screw
it and fix the screw。
