OPTICAL OUT
MIC 1 MIC 2
LINE IN
FRONT
REAR/
SIDE R
SUB/
C/SIDE L
2
3
5
4
1

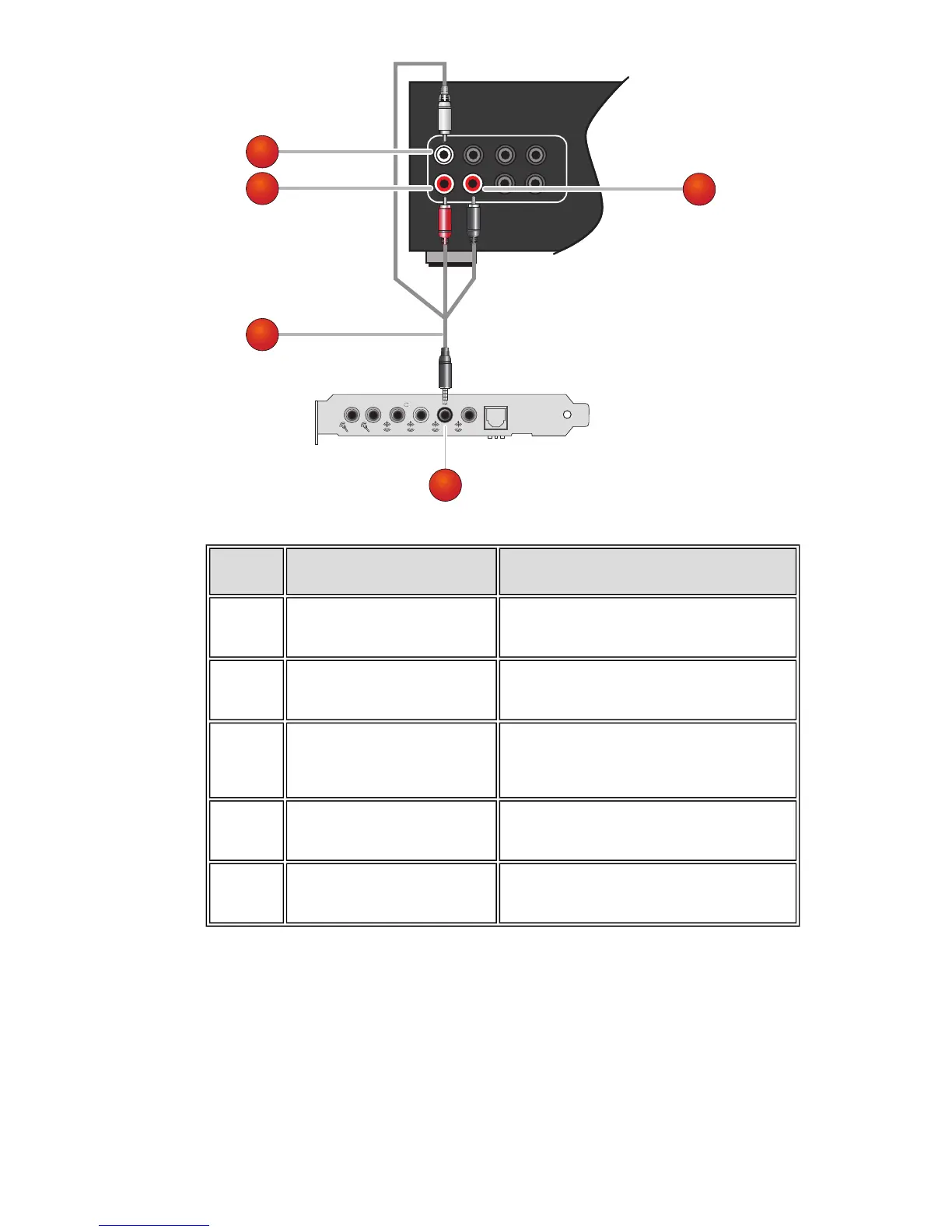

Jack, Connector or Cable Description
1. Side Right connector
Connects to the Line Out 2 jack on your
Sound Blaster Audigy 5.
2. Line Out 2 jack
Connects to the Rear Left, Rear Right and
Side Right connectors on an AV Amplifier.
3.
3.5 mm (1/8-inch) stereo-
to-RCA cable (available sep-
arately)
Connects the Sound Blaster Audigy 5 and
AV Amplifier.
4. Rear Right connector
Connects to the Line Out 2 jack on the Sound
Blaster Audigy 5
5. Rear Left connector
Connects to the Line Out 2 jack on the Sound
Blaster Audigy 5.
Connecting Related Peripherals 14
