Creative audigy 5 - Stereo and 4-Pole Jack Diagrams

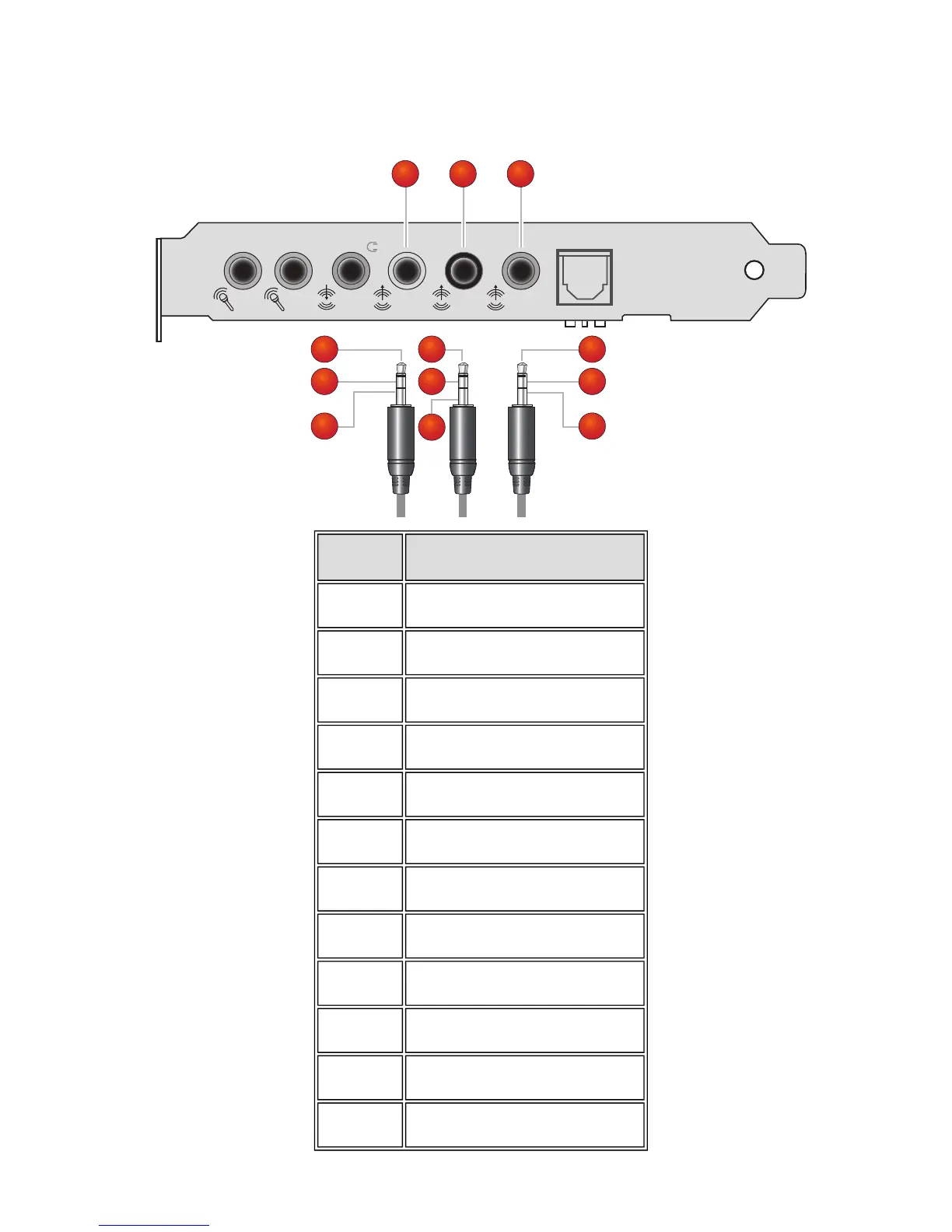

Stereo and 4-Pole Jack Diagrams
5.1 channel analog audio
OPTICAL OUT
MIC 1 MIC 2
LINE IN
FRONT
REAR/
SIDE R
SUB/
C/SIDE L
1
4
5
6
10
11
12
7
8
9
2 3
5.1 channel analog audio
1. Line Out 1 jack
2. Line Out 2 jack
3. Line Out 3 jack
4. Front Left
5. Front Right
6. Ground
7. Rear Left
8. Rear Right
9. Ground
10. Center
11. Subwoofer
12. Ground
Connectivity 25
