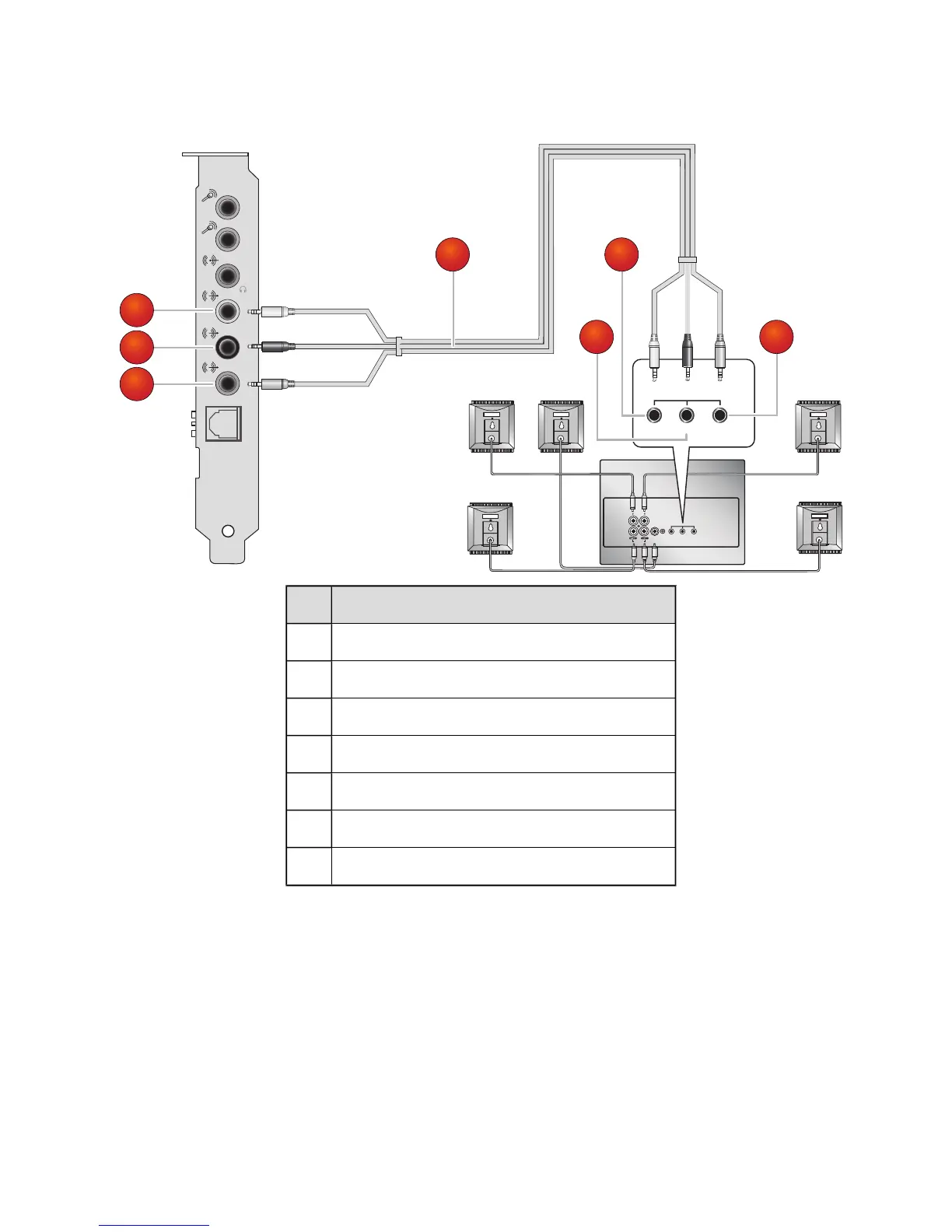

5.1 channel analog speakers
OPTICAL OUT
MIC 1
MIC 2
LINE IN
FRONT
REAR/
SIDE R
SUB/
C/SIDE L
1
2
3
front rear center/
subwoofer
audio
inputs
center
speaker
front
speakers
rear
speakers
front rear center/
subwoofer
audio
inputs
6 7
54
Jack, Connector or Cable
1.
Line Out 1 jack
2.
Line Out 2 jack
3.
Line Out 3 jack
4.
5.1 channel audio cable (available separately)
5.
Front (Audio Input) connector
6.
Rear (Audio Input) connector
7.
Center / Subwoofer (Audio Input) connector
Connecting Analog Speaker Systems 22
