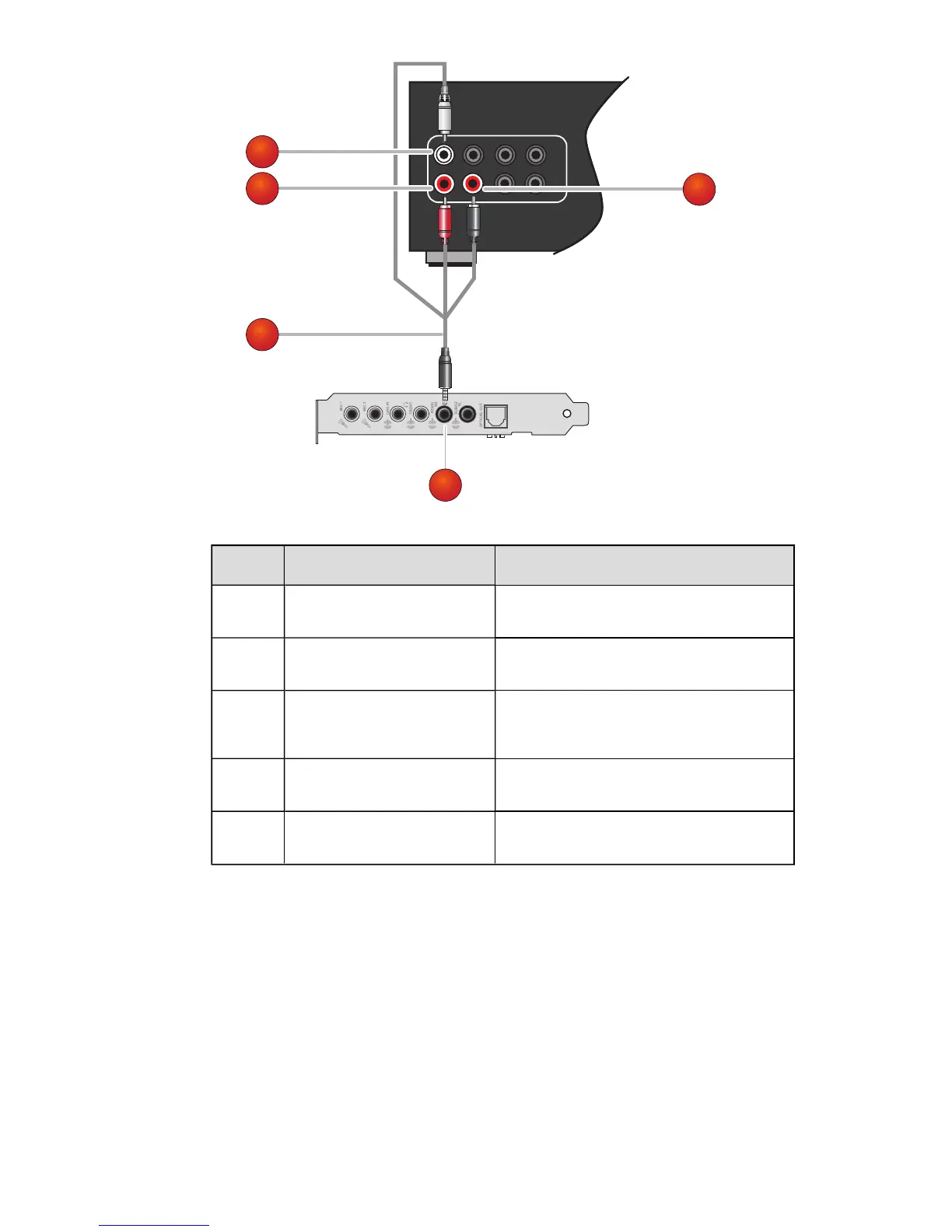

Jack, Connector or Cable Description
1. Side Right connector
Connects to the Line Out 2 jack on your Sound
Blaster Audigy 5/Rx.
2. Line Out 2 jack
Connects to the Rear Left, Rear Right and
Side Right connectors on an AV Amplifier.
3.
3.5 mm (1/8-inch) stereo-
to-RCA cable (available sep-
arately)
Connects the Sound Blaster Audigy 5/Rx and
AV Amplifier.
4. Rear Right connector
Connects to the Line Out 2 jack on the Sound
Blaster Audigy 5/Rx
5. Rear Left connector
Connects to the Line Out 2 jack on the Sound
Blaster Audigy 5/Rx.
