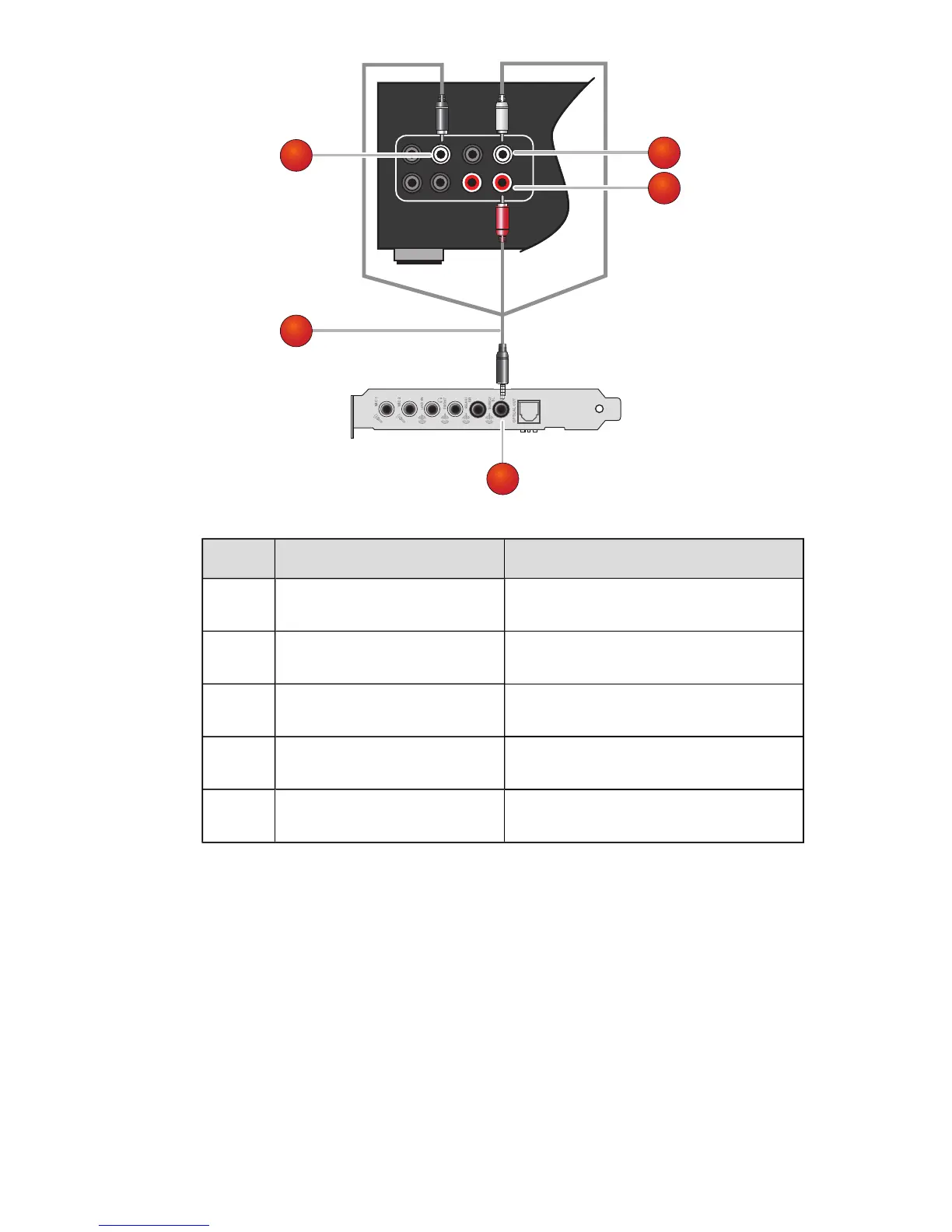

Jack, Connector or Cable Description
1. Side Left connector
Connects to the Line Out 3 jack on the Sound
Blaster Audigy 5/Rx.
2. Center connector
Connects to the Line Out 3 jack on the Sound
Blaster Audigy 5/Rx.
3. Subwoofer connector
Connects to the Line Out 3 jack on the Sound
Blaster Audigy 5/Rx.
4. Line Out 3 jack
Connects to the Side Left, Center and Sub-
woofer connectors on an AV Amplifier.
5.
3.5 mm (1/8-inch) stereo-to-RCA
cable (available separately)
Connects the Sound Blaster Audigy 5/Rx and
AV Amplifier.
