6. Munti-Unit Communication Setting
6.1 Sketch map of Multi-Unit PCB

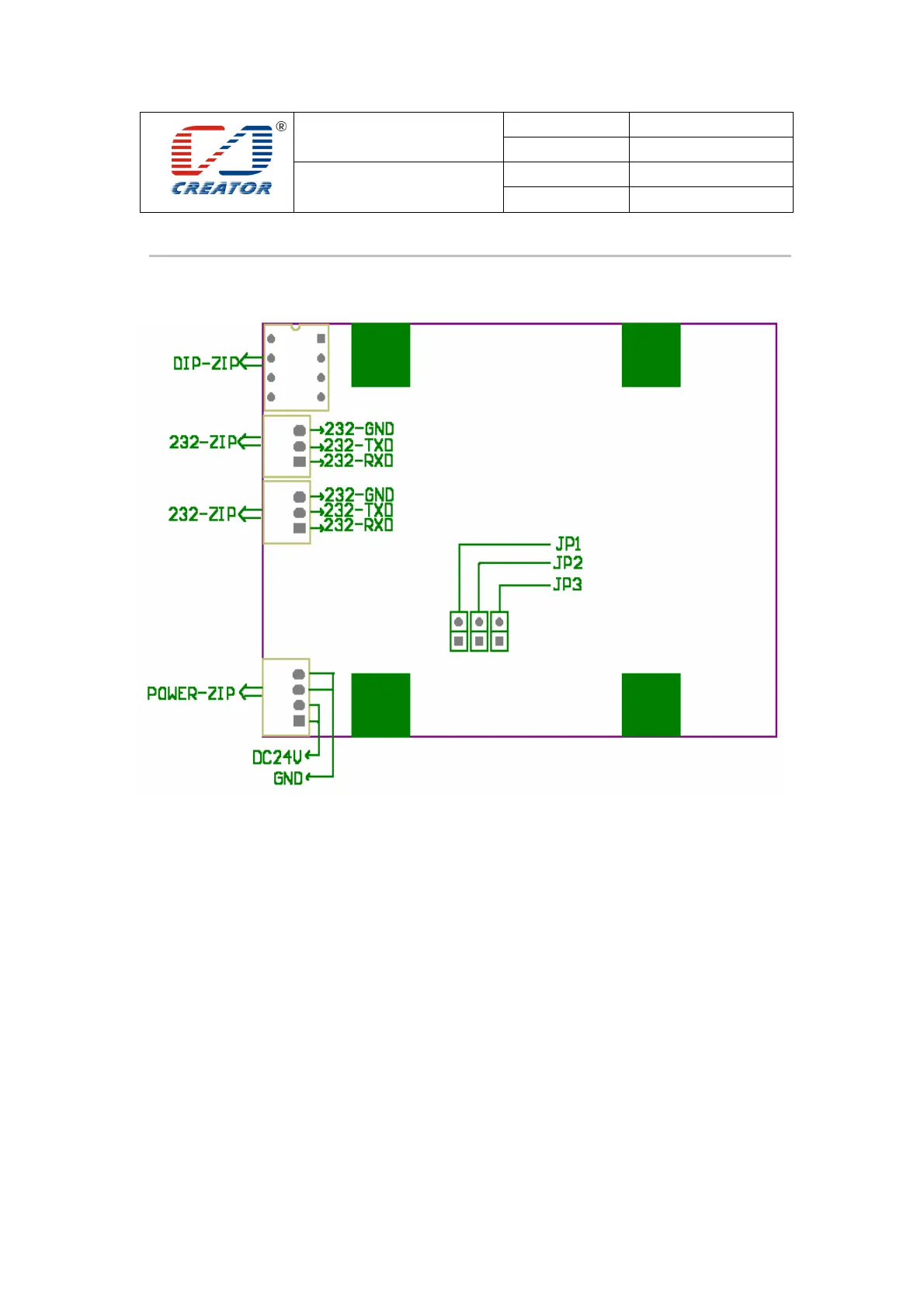

The following diagram show the PCB of Multi-Unit CRT-541.
Note1232-ZIP : Two 232 interfaces complete the same. One connects to extension.
2DIP-ZIPThe multi-switch used to distribute the address of dispenser.
