4. CRT-541 Design Specification
4.1 Card Thickness Adjustment
CRT-541 makes it more accurate and convenient to dispense the
cards in different thickness via rotating the turn-knob to different gear
position so as to adjust the gap between the upper and lower transmiting
wheels, which can eliminate the inconvenient and inaccurate gap
adjustment defects. With this feature, CRT-541 is quite suitable for the
unattended vending devices to dispense various cards of distinct
thickness.
There are several steps to adjust the thickness of cards:
1. Confirm the thickness of cards ( Raised type character are not
involved in)

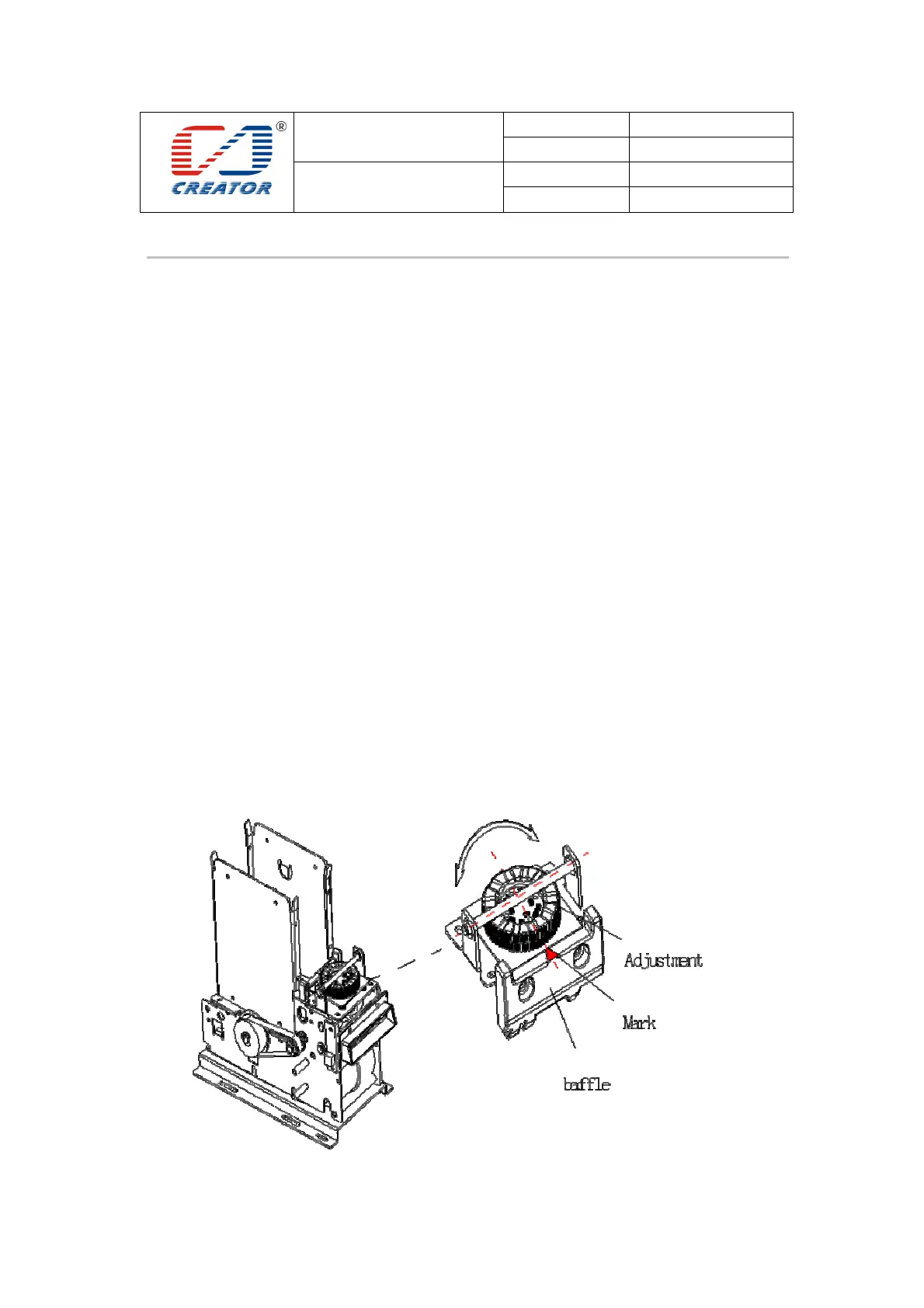

2. Push the turn-knob and turn around to the graducation pointed by the
red arrow. Seeing pictures below.
3. Make sure the adjustment on the right position by insert cards from
stacker. (Inserting one card from stacker will be smooth and two cards
simultaneously from behind can be impossible)
