Cleaning and Maintenance of the Oven Doors
- Drop-Down door Glass

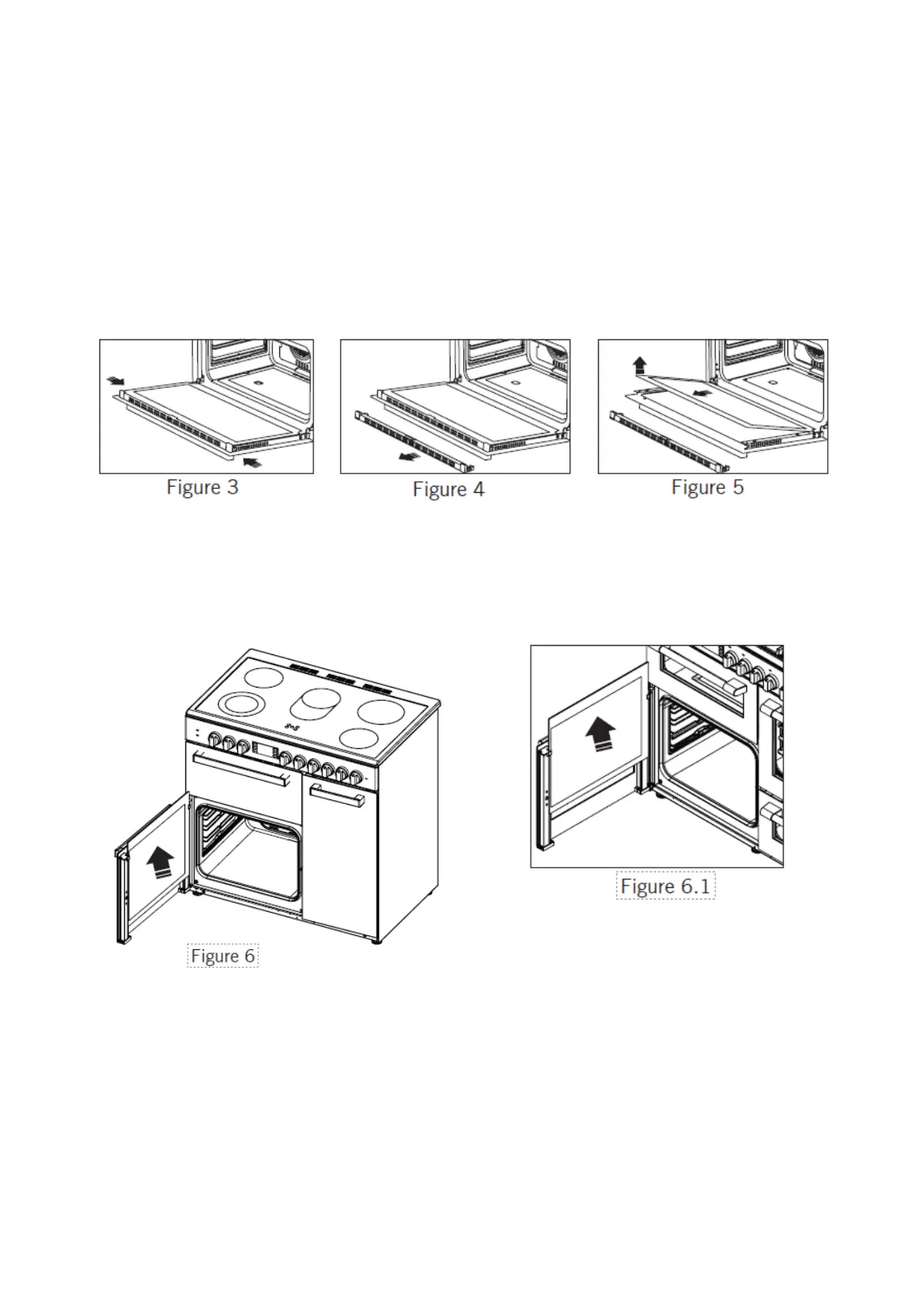

Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 3 and pulling the
profile towards yourself as shown in figure 4 Then remove the inner-glass as shown in figure 5 If required, middle
glass can be removed in the same way. After cleaning and maintenance are done, remount the glasses and the
profile in reverse order. Make sure the profile is properly seated in its place.
- Side Opening Door Glass
Open the door glass. Remove the glass by pulling upward. The outer glass is fixed to the oven door profile. After
removing the glass, cleaning can be done easily. After determining procedures for cleaning and maintenance, please
put the glass by pushing down. Make sure the glass is well installed.
