crest Optics X-Light V2 TP - 2.6 Attaching the Camera

26

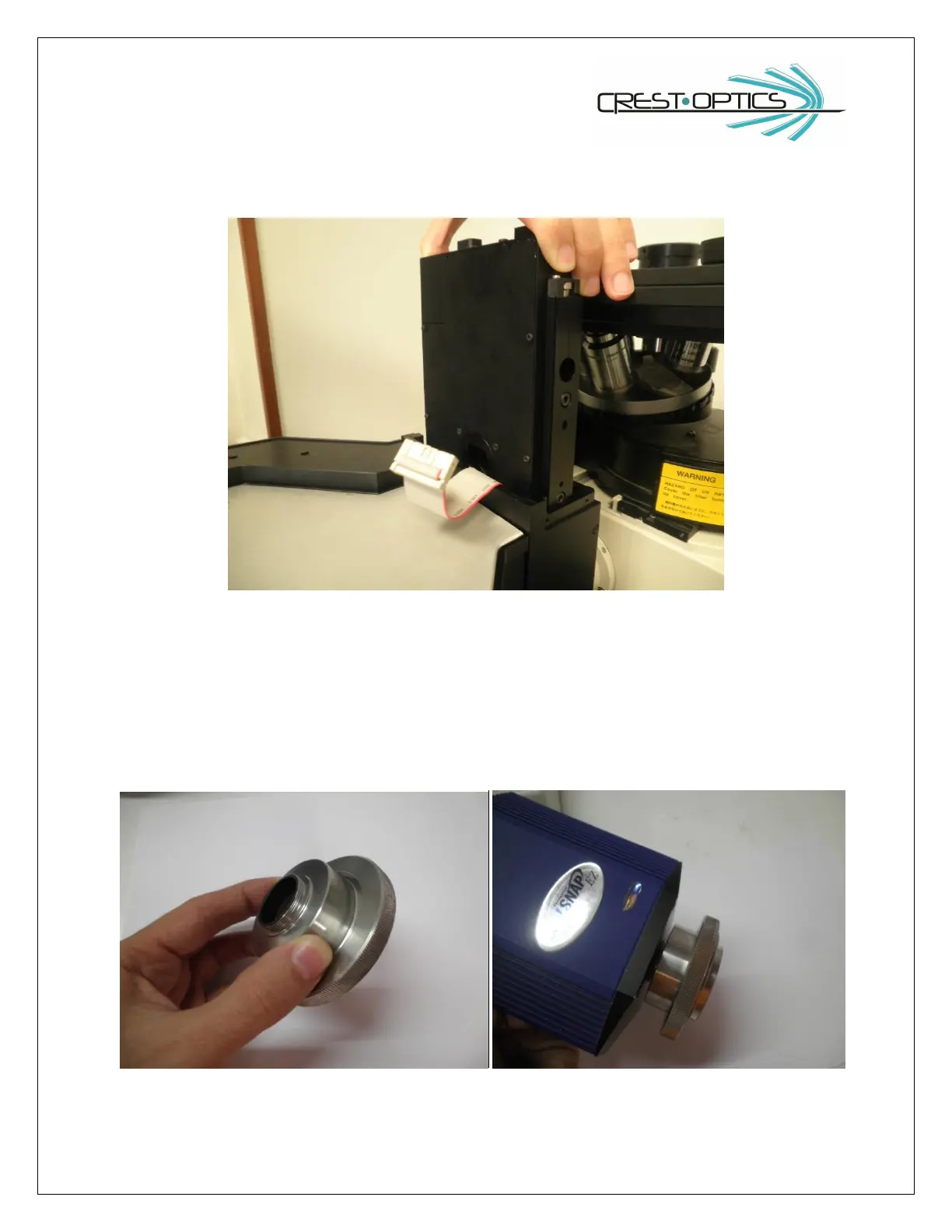

You can finally lift the spinning disk box
2.6 Attaching the camera
A range of CCD/sCMOS cameras can be used with the X-LIGHT V2
TP
. Mount the CCD/sCMOS to the C-
mount confocal head adapter. You will need to mount the c-mount and the ring at the same time (see
pictures). Secure the camera in its final position by blocking it with the threaded ring (see pictures).
