Crestron C2ENET-1 User Manual

2-Series Ethernet Interface Expansion Cards Crestron C2ENET-1/-2
Specifications
The following table provides specifications for the C2ENET-1/-2.
Specifications of the C2ENET-1/-2
DETAILS
Power Requirements: C2ENET-1 2 Watts (0.083 amps @ 24 VDC)
C2ENET-2 3 Watts (0.125 amps @ 24 VDC)
Network Type 10/100BaseT, half or full duplex
Protocols TCP/IP, UDP/IP, ICMP (Ping), & HTTP
SIMPL™ Windows®
Version 2.00 or later
1
VT Pro-e
Version 2.3.3.1 or later
1, 2
Version C2-1001.CUZ or later
4
Internet Explorer Version 4.0 or later
Netscape Navigator Version 4.5 or later
IP Address Configuration Static and dynamic addressing
Dimensions Height: 0.98 in (2.49 cm)
Width: 4.28 in (10.86 cm)
Depth: 4.71 in (11.95 cm)
Weight: C2ENET-1 2.40 oz (0.07 kg)
C2ENET-2
2.60 oz (0.08 kg)
2-Series Control System Update File
3
SPECIFICATION
1. The latest software versions can be obtained from the Downloads | Software Updates section of the
Crestron website (www.crestron.com
).
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems that are Ethernet-enabled directly or via a
C2ENET-1/-2 Ethernet card.
NOTE: Crestron software and any files on the website are for Authorized Crestron
dealers only. New users may be required to register to obtain access to certain areas
of the site (including the FTP site).
Physical Description

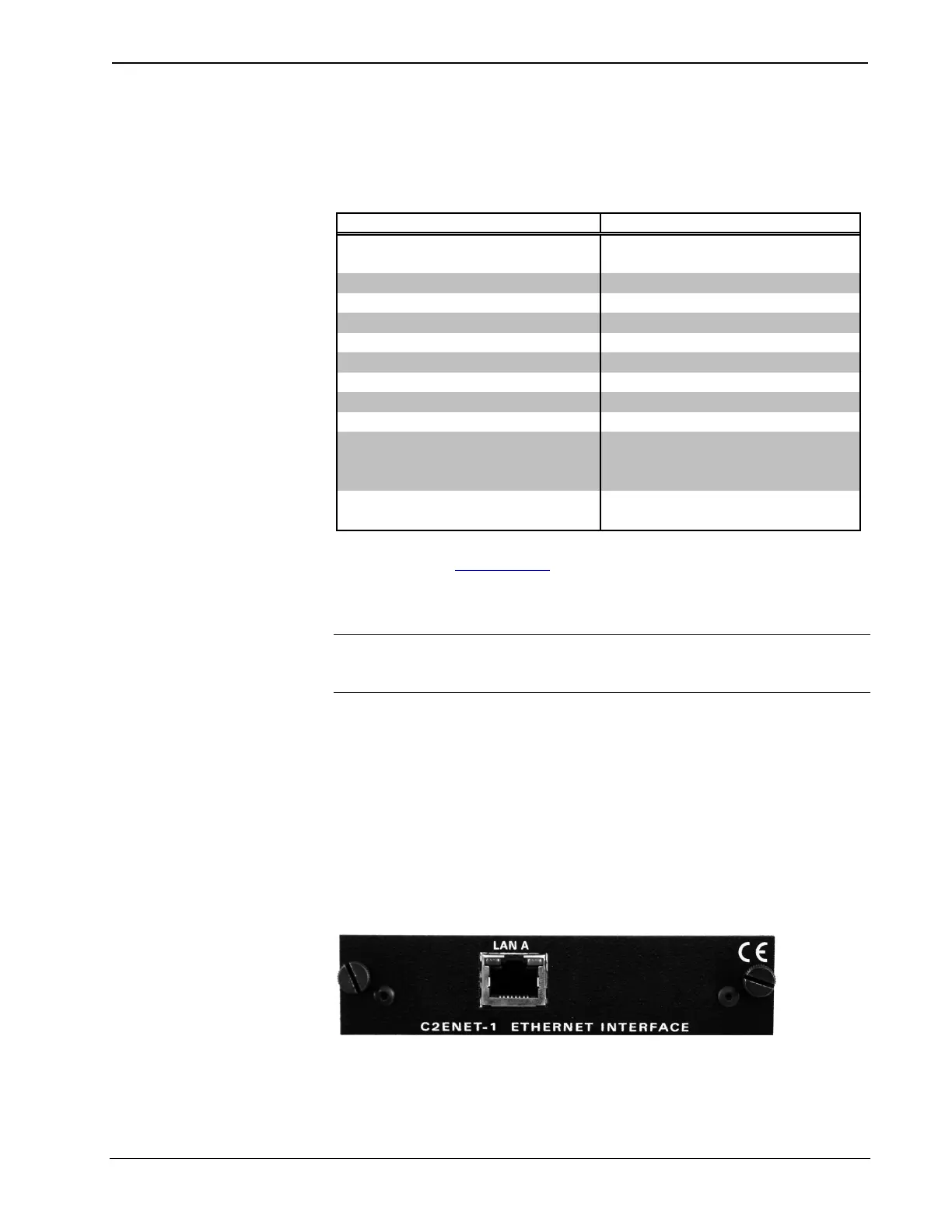

The C2ENET-1 and C2ENET-2 (refer to graphics below and on next page) are
printed circuit boards (PCBs) fastened to aluminum faceplates. The cards are
designed to be installed in a Z-BUS expansion slot on the 2-Series control systems.
Two thumbscrews secure the cards.
The C2ENET-1 contains one 8-wire RJ-45 Ethernet/LAN port. The C2ENET-2
contains two 8-wire RJ-45 ports (LAN A and LAN B). The port(s) is used for
connection using an Ethernet cable (refer to cable connection example on page 4) to
the Ethernet.
C2ENET-1
2 • 2-Series Ethernet Interface Expansion Cards: C2ENET-1 & C2ENET-2 Operations & Installation Guide – DOC. 5962B
