Crestron C2ENET-1/-2 2-Series Ethernet Interface Expansion Cards
C2ENET-2
NOTE: When the C2ENET-2 is used as a router, the WAN must be connected to
LAN A and the LAN must be connected to LAN B.
As shown in the illustration below, the port(s) contains two light-emitting diodes
(LEDs). The green LED in the upper-left corner of the port(s) illuminates when it is
connected to a working Ethernet. The yellow LED in the upper-right flashes to
indicate Ethernet activity.

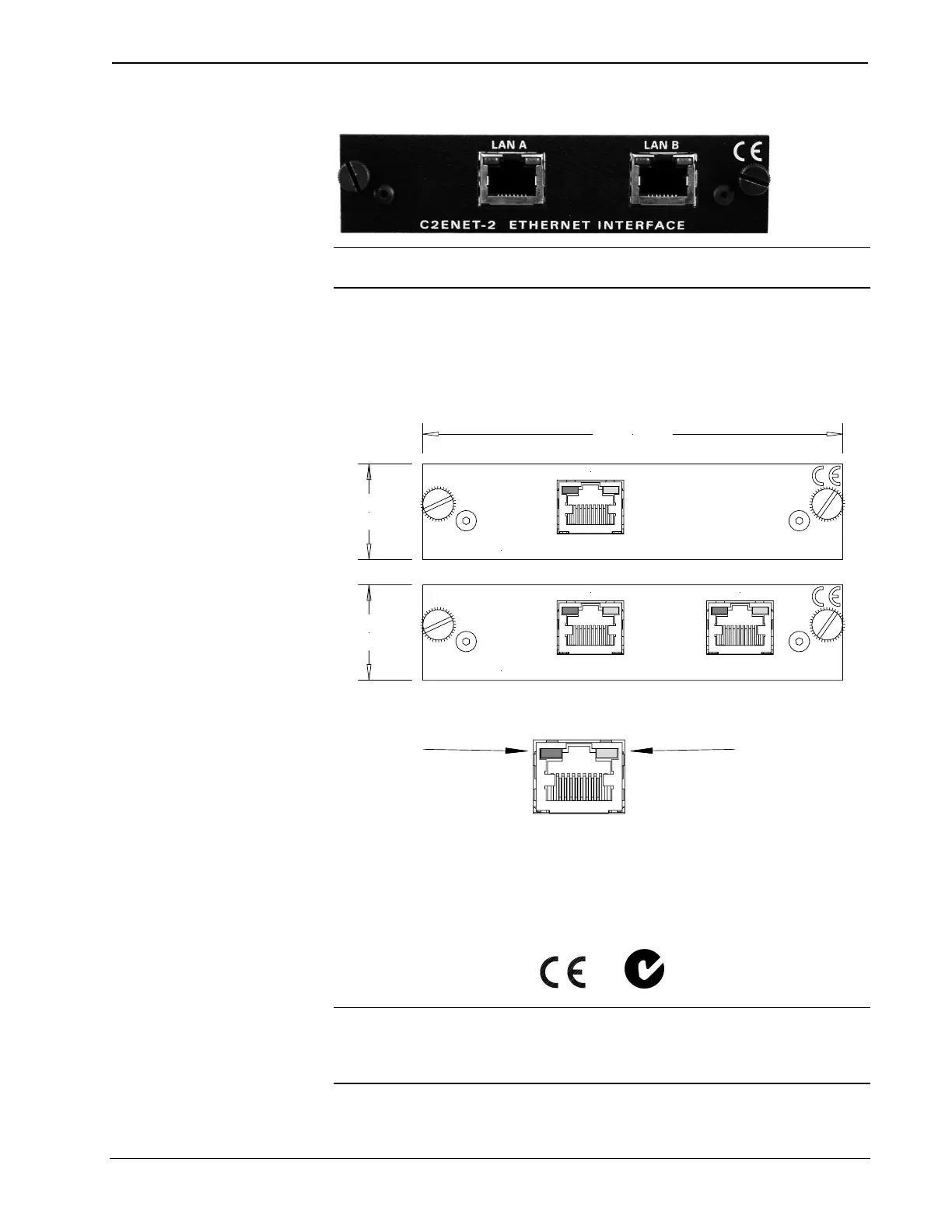

C2ENET-1 & C2ENET-2 Faceplates
4.28 in
(10.86 cm)
C2ENET-1 ETHERNET INTERFACE
C2ENET-2 ETHERNET INTERFACE
LAN A
LAN A LAN B
0.98 in
(2.49 cm)
0.98 in
(2.49 cm)
C2ENET-1/-2 Port Indicators
LINK STATUS
LED (GREEN)
ETHERNET
ACTIVITY
LED (YELLOW)
Industry Compliance
As of the date of manufacture, the C2ENET-1/-2 has been tested and found to
comply with specifications for CE marking and standards per EMC and
Radiocommunications Compliance Labelling (N11785).
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Operations & Installation Guide – DOC. 5962B 2-Series Ethernet Interface Expansion Cards: C2ENET-1 & C2ENET-2 • 3
