Connect the Device
Make the necessary connections as called out in the illustrations. A
miniature flathead screwdriver (not supplied) is required to attach the
control wires from the HVAC system.
Apply power after all connections have been made.
If the system being connected does not match the system described
below, contact Crestron Technical Support for assistance.

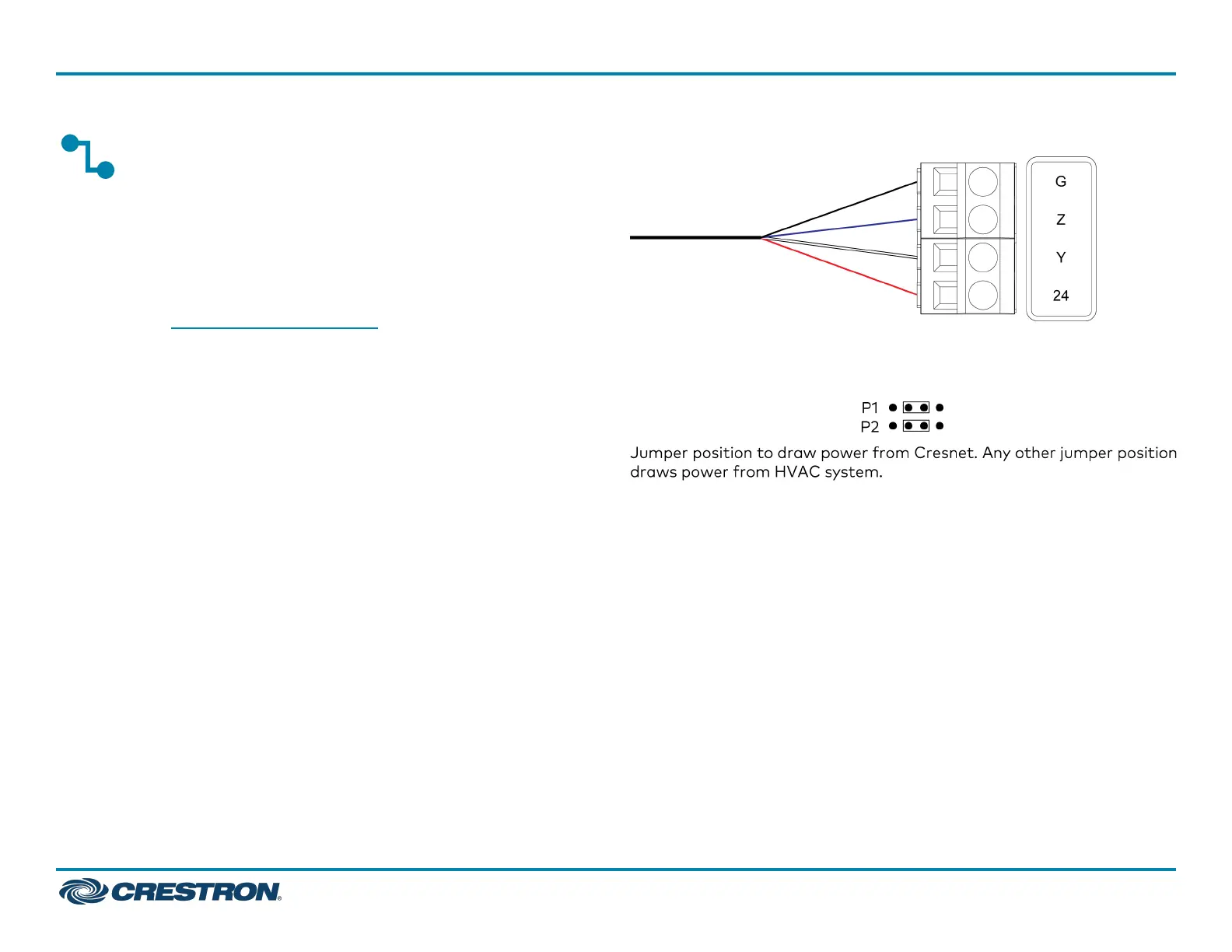

Wiring Diagrams
Cresnet® Wire Connections
Jumper Connections
3
CHV-TSTAT-FCU-PIR-10
QuickStart
0-10 V Heating/Cooling Fan-Coil Thermostat, White Textured
