Crestron DM-RMC-200-C User Manual

Crestron DM-RMC-200-C DigitalMedia 8G+™ Receiver 200

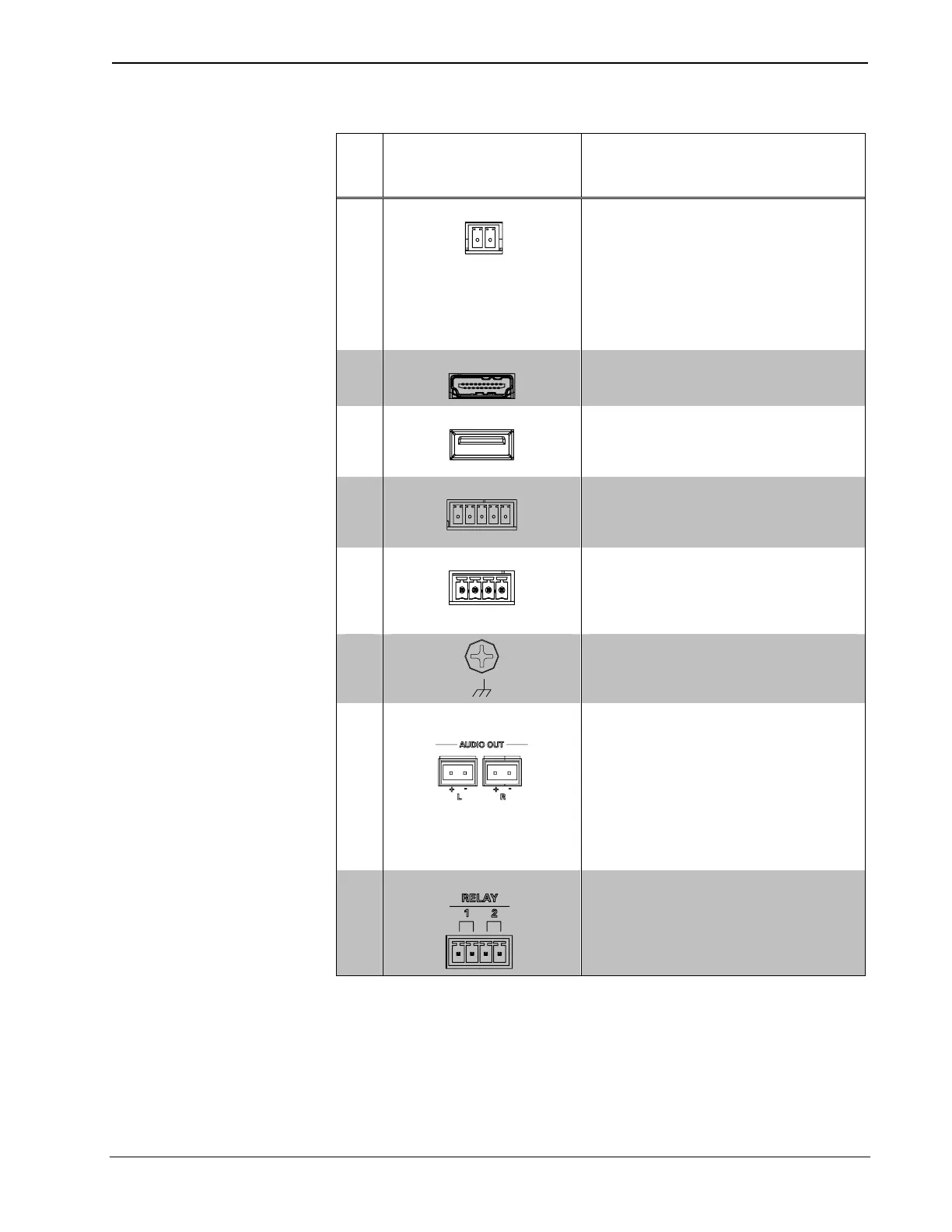

Connectors, Controls & Indicators (Continued)
#
CONNECTORS
1
,
CONTROLS &
INDICATORS
DESCRIPTION
11
DIG IN
(1) 2-pin 3.5 mm detachable terminal
block;
Digital/contact closure sensing input;
Rated for 0-24 Volts DC, referenced
to GND;
Input Impedance: 2.2k Ohms pulled up to
5 Volts DC;
Logic Threshold: 2.5 Volts DC nominal
with 1 Volt hysteresis band
12
HDMI OUT
(1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Also supports DVI
4
13
USB HID
(1) USB Type A female;
USB 2.0 host port for connection of a
mouse/keyboard or other USB
HID-compliant device
14
COM (1) 5-pin 3.5 mm detachable terminal
block, bidirectional RS-232 port;
Up to 115.2k baud, hardware and
software handshaking support
15
IR 1-2 (1) 4-pin 3.5 mm detachable terminal
block comprising two IR/Serial ports:
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up
to 19200 baud
5
16 (1) 6-32 screw, chassis ground lug
17
AUDIO OUT L, R
(Speaker)
2
(2) 2-pin 5 mm detachable terminal
blocks;
Left and Right speaker-level audio
outputs;
Paralleled with top panel AUDIO OUT
(Speaker) connectors;
Wire Size: Connector accepts 12 AWG
maximum;
Output Power: 15 Watts per channel at
8 Ohms
18
RELAY 1-2
(1) 4-pin 3.5 mm detachable terminal
block comprising two normally open,
isolated relays;
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across contacts
(Continued on following page)
Operations & Installation Guide – DOC. 7126B DigitalMedia 8G+™ Receiver 200: DM-RMC-200-C • 15

Crestron DM-RMC-200-C Specifications

General

Type	AV receiver
Material	Metal
Product color	Black
Maximum resolution	2048 x 1152 pixels
Maximum refresh rate	60 Hz
Ethernet LAN	Yes
RJ-45 input ports	1
Connectivity technology	Wired
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	47 mm
Width	276 mm
Height	202 mm
Weight	1480 g
