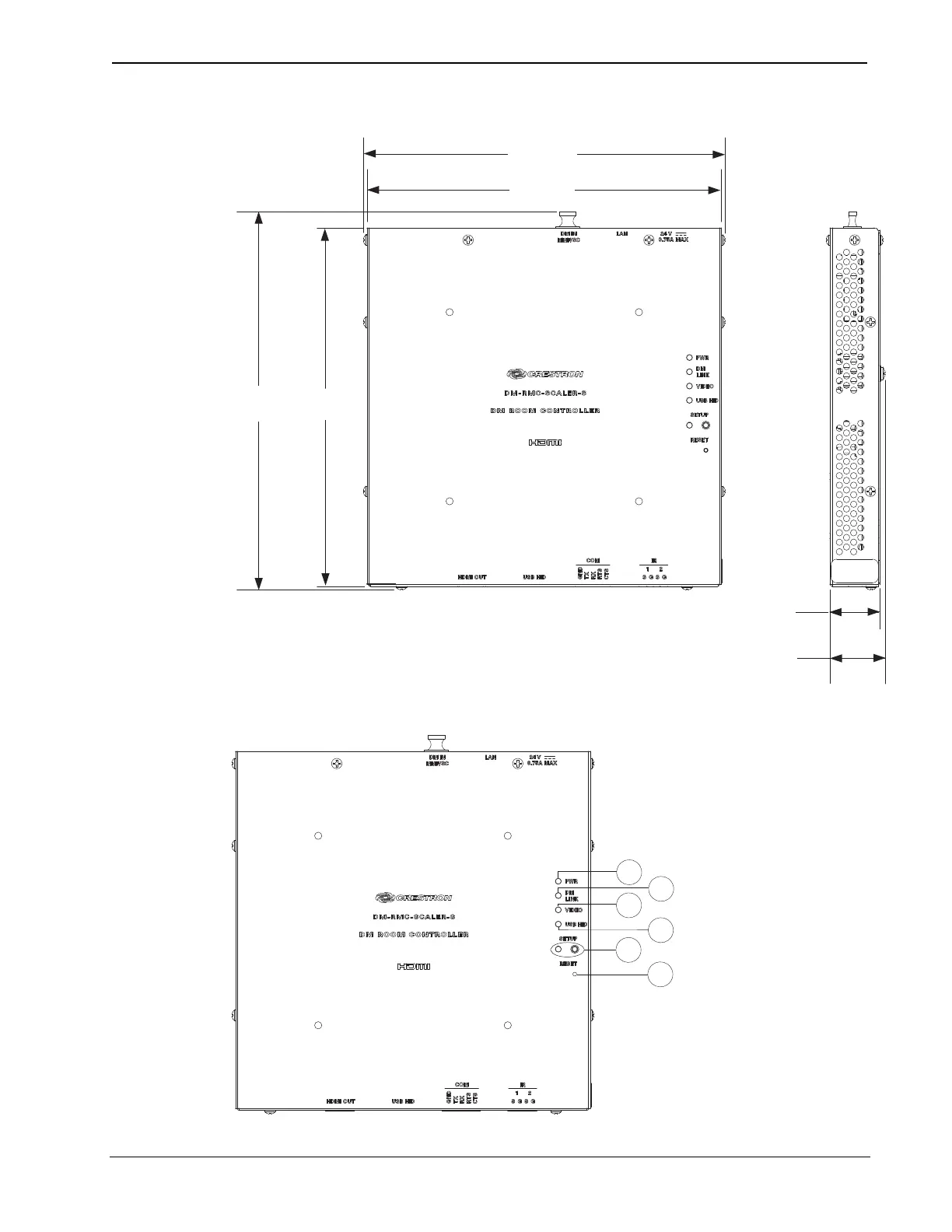

DM-RMC-SCALER-S/DM-RMC-SCALER-S2 Overall Dimensions (Front and Side Panels)
1.05 in
(27 mm)
1.17 in
(30 mm)
7.60 in
(193 mm)
7.45 in
(190 mm)
7.95 in
(202 mm)
7.54 in
(192 mm)
DM-RMC-SCALER-S/DM-RMC-SCALER-S2 Connectors, Controls & Indicators (Front Panel)
1
2
3
4
5
6
