DigitalMedia 8G Fiber Receiver Crestron DM-RMC-SCALER-S/S2
14  DigitalMedia 8G Fiber Receiver: DM-RMC-SCALER-S/S2 Operations & Installation Guide – DOC. 7324B

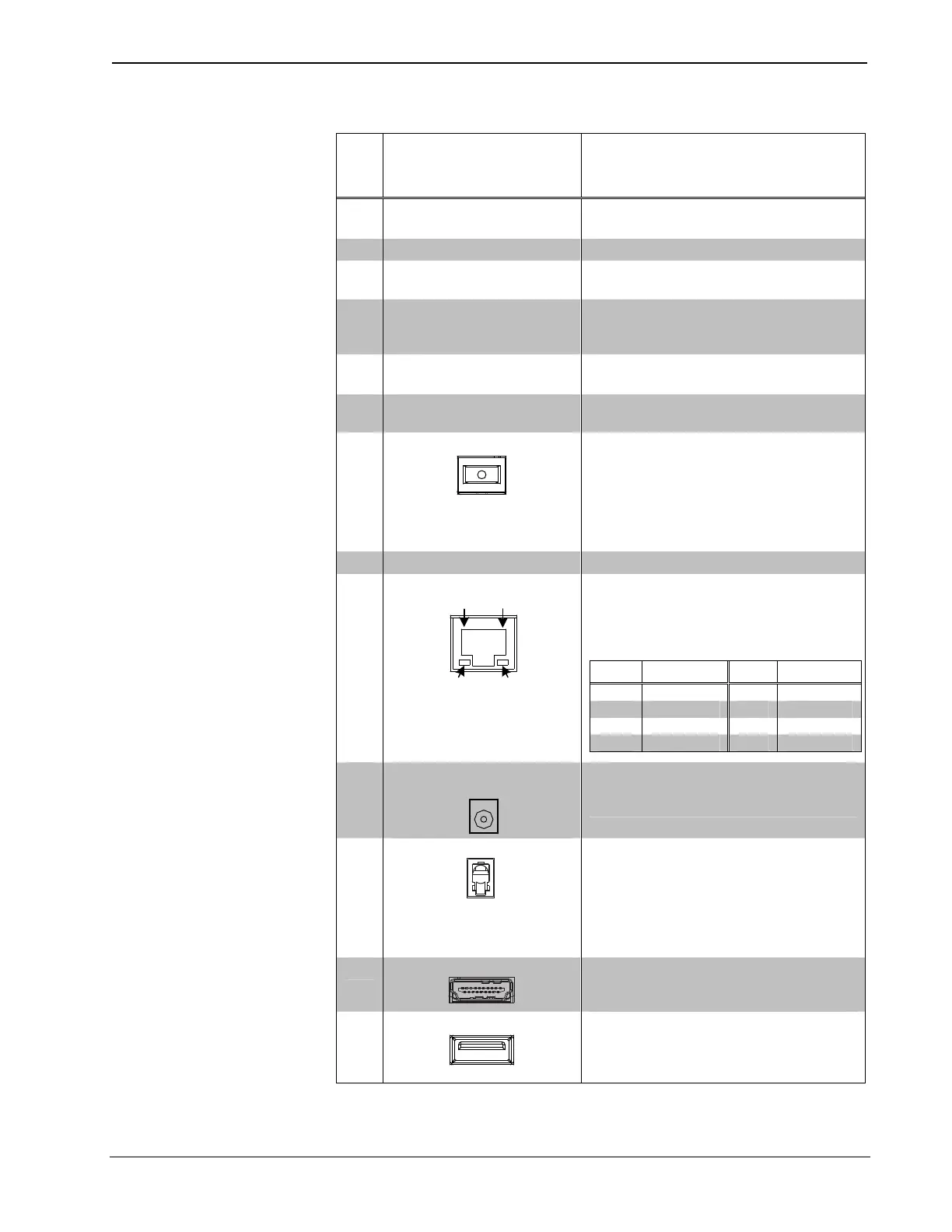

Connectors, Controls & Indicators
#
CONNECTORS
1
,
CONTROLS &
INDICATORS
DESCRIPTION
1 PWR LED
(1) Green LED, indicates operating
power supplied from local power pack
2 DM LINK LED (1) Green LED, indicates DM link status
3 VIDEO LED
(1) Green LED, indicates video signal
presence and lock status
4 USB HID LED
(1) Green LED, indicates a valid device
connection and activity on the USB HID
port
5
SETUP
(LED and Button)
(1) Red LED and (1) miniature recessed
push button for Ethernet setup
6 RESET
(1) Miniature recessed push button for
hardware reset
7
DM IN MMF/SC (DM-RMC-SCALER-S only)
(1) SC female optical fiber connector;
DM 8G fiber input;
Connects to DM 8G fiber output of a DM
switcher, transmitter, or other DM device
(each sold separately) via CresFiber 8G
fiber optic cable
2
8 DM IN LED (1) Green LED, indicates DM link status
9
LAN
Green
LED
Amber
LED
Pin 8
Pin 1
(1) 8-pin RJ-45 female, shielded, with
two LED indicators;
10BASE-T/100BASE-TX Ethernet port;
Green LED indicates Ethernet link status;
Amber LED indicates Ethernet activity
PIN SIGNAL PIN SIGNAL
1 TX + 5 N/C
2 TX - 6 RX -
3 RX + 7 N/C
4 N/C 8 N/C
10
24 V
0.75A MAX
(1) 2.1 x 5.5 mm dc power connector;
24 volt dc power input;
Power pack included
11
DM IN SMF/LC
(DM-RMC-SCALER-S2 only)
(1) LC female optical fiber connector;
DM 8G single-mode fiber input;
Connects to DM 8G SMF output of a DM
switcher, transmitter, or other DM device
via CresFiber 8G SM single-mode fiber
optic cable
2
12
HDMI OUT (1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Supports DVI
3
13
USB HID
(1) USB Type A female;
USB 2.0 host port for connection of
a mouse/keyboard or other USB
HID-compliant device
(Continued on following page)
