Crestron MP-AMP30 Media Presentation Audio Amplifier

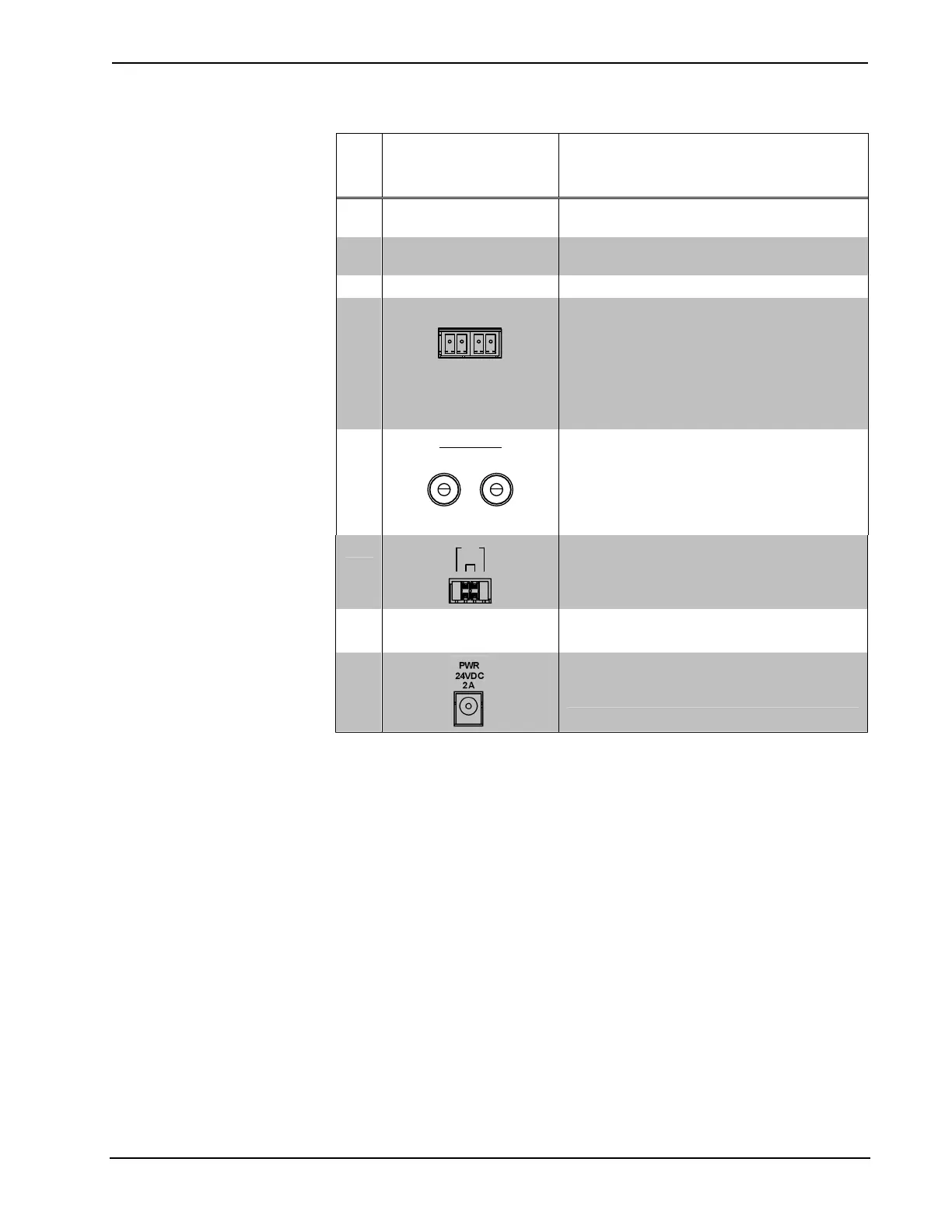

Connectors, Controls & Indicators
# CONNECTORS*,
CONTROLS &
INDICATORS
DESCRIPTION
1 BASS Control
Rotary low frequency boost/cut adjustment,
flat at center detent
2 TREBLE Control
Rotary high frequency boost/cut adjustment,
flat at center detent
3 VOL Control Rotary input level adjustment
4
AUDIO OUT 8Ω, R, L
+ - + -
R L
(2) 2-pin 3.5 mm detachable terminal blocks;
Left & right channel speaker-level audio
outputs
Wire Size: Connector accepts 16 AWG
maximum
Output Power: 15 Watts per channel at 8 or 4
Ohms
5, 6 AUDIO IN
L R
(2) RCA female
Unbalanced stereo line-level audio input
Maximum Input Level: 2 V
rms
Input Impedance: 18k Ohms
3 ft (0.9 m) stereo RCA-RCA cable included
7
ST
MO
Mode selection jumpers, select stereo or
mono-summed operation
8
PWR
O
(1) green LED, indicates operating power
supplied from external power supply
9
(1) 2.1 mm barrel DC power jack, 24 Volt DC
power input;
(Power supply included)
* Interface connectors for AUDIO OUT ports are provided with the unit.
Operations & Installation Guide – DOC. 6917B Media Presentation Audio Amplifier: MP-AMP30 • 5
