3.6-Inch Wall Mount Touchpanel Crestron Isys
®
TPS-4L

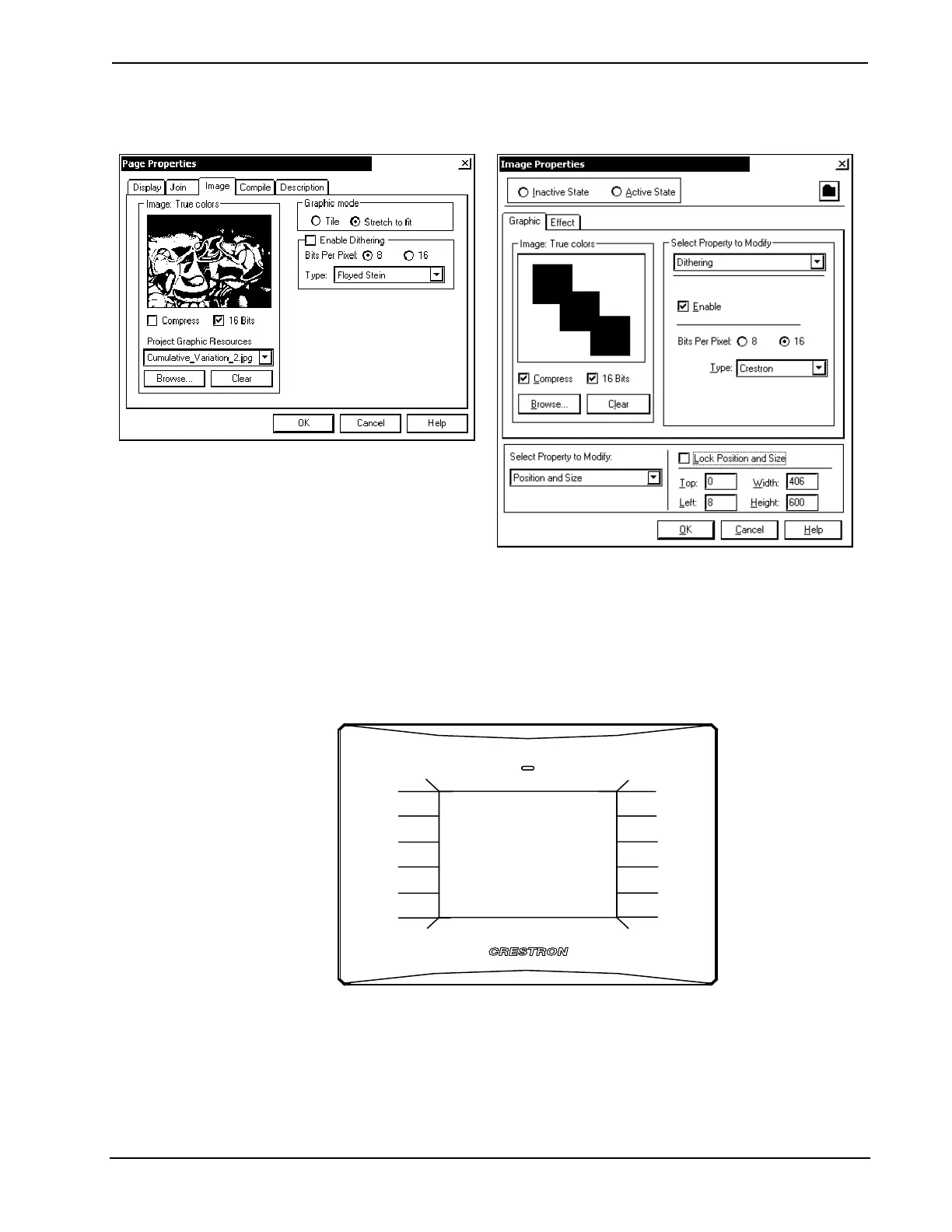

VT Pro-e “Page Properties” Window – Bit Depth Selection VT Pro-e “Image Properties” Window – Bit Depth Selection
Pushbutton Programming
The ten pushbuttons that flank the display can be programmed to access any
frequently used command. Each button has a permanently fixed digital join number.
The sequence of digital join numbers are (top to bottom, left to right) 1 through 5 and
6 through 10. Refer to the following illustration. A description for each button signal
is given in the SIMPL Windows help file (F1).
Pushbutton Layout and Join Number Assignment
1
2
3
4
5
6
7
8
9
10
MultiByte International Characters
Most languages use a single byte of eight bits to represent a character, e.g. English,
French, German, Hebrew, Russian, Thai, etc.
Multibyte character fonts require more than the usual eight bits to specify a
character. This occurs when a language has more than 256 characters (2
8
) in a font.
22 • 3.6-Inch Wall Mount Touchpanel: TPS-4L Operations & Installation Guide – DOC. 6449A
