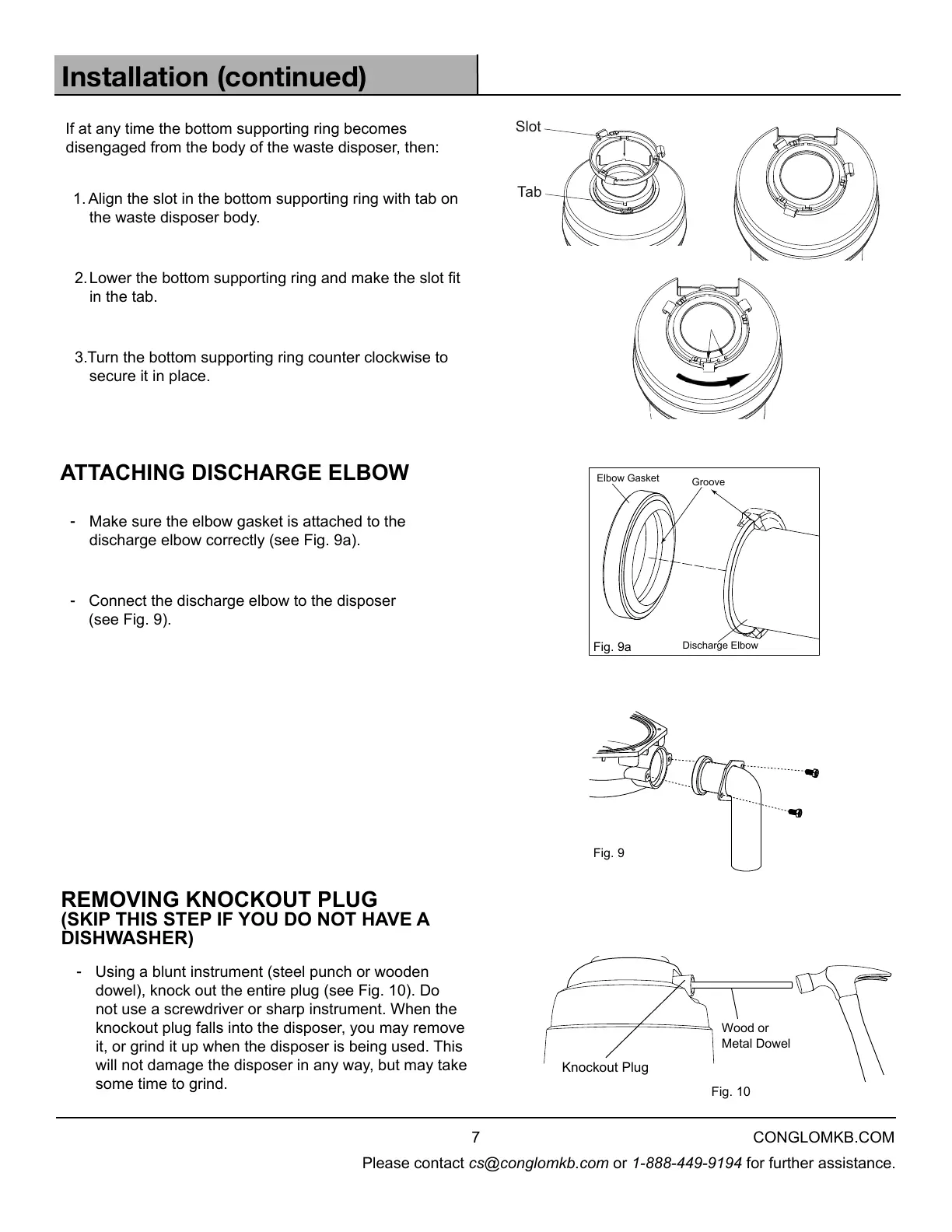

Installation (continued)
If at any time the bottom supporting ring becomes
disengaged from the body of the waste disposer, then:
1. Align the slot in the bottom supporting ring with tab on
the waste disposer body.
2. Lower the bottom supporting ring and make the slot t
in the tab.
3. Turn the bottom supporting ring counter clockwise to
secure it in place.
Slot
Tab
ATTACHING DISCHARGE ELBOW
Elbow Gasket
Groove
Discharge Elbow
Fig. 9a
Fig. 9
- Make sure the elbow gasket is attached to the
discharge elbow correctly (see Fig. 9a).
- Connect the discharge elbow to the disposer
(see Fig. 9).
REMOVING KNOCKOUT PLUG
(SKIP THIS STEP IF YOU DO NOT HAVE A
DISHWASHER)
- Using a blunt instrument (steel punch or wooden
dowel), knock out the entire plug (see Fig. 10). Do
not use a screwdriver or sharp instrument. When the
knockout plug falls into the disposer, you may remove
it, or grind it up when the disposer is being used. This
will not damage the disposer in any way, but may take
some time to grind.
Fig. 10
Knockout Plug
Wood or
Metal Dowel
