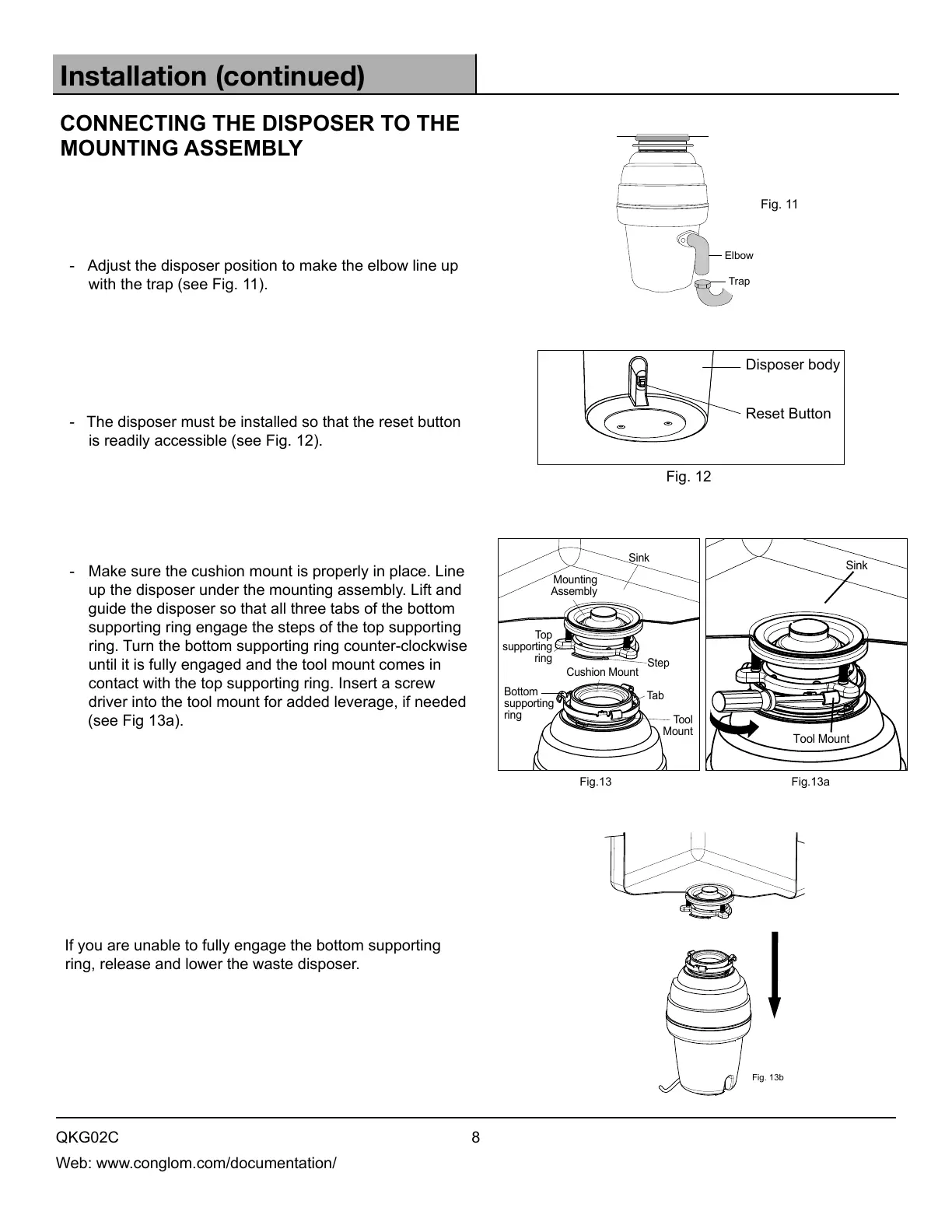

Installation (continued)
CONNECTING THE DISPOSER TO THE
MOUNTING ASSEMBLY
Elbow
Trap
Fig. 11
Fig. 12
Disposer body
Reset Button
Fig.13
Top
supporting
ring
Bottom
supporting
ring
Tab
Tool
Mount
Step
Sink
Mounting
Assembly
Cushion Mount
Fig.13a
Sink
Tool Mount
- Adjust the disposer position to make the elbow line up
with the trap (see Fig. 11).
- The disposer must be installed so that the reset button
is readily accessible (see Fig. 12).
- Make sure the cushion mount is properly in place. Line
up the disposer under the mounting assembly. Lift and
guide the disposer so that all three tabs of the bottom
supporting ring engage the steps of the top supporting
ring. Turn the bottom supporting ring counter-clockwise
until it is fully engaged and the tool mount comes in
contact with the top supporting ring. Insert a screw
driver into the tool mount for added leverage, if needed
(see Fig 13a).
If you are unable to fully engage the bottom supporting
ring, release and lower the waste disposer.
Fig. 13b
To Next Page
