Crossfire 190CUB - Control Panel Diagram; Operation Environment; Outdoor Operation Guidelines; Indoor Operation Guidelines

8
terminal
6 Air switch 1 Main power switch
7 Circuit protection switch 2 Prevent the two sockets from overloading
8 120v power supply
receptacle
2 120V 20A
9 240v twist lock receptacle 1 240V 30A
10 Fuel margin display 1 Indicate the remained quantity of fuel
11 Fuel tank cover 1 Fuel tank cover

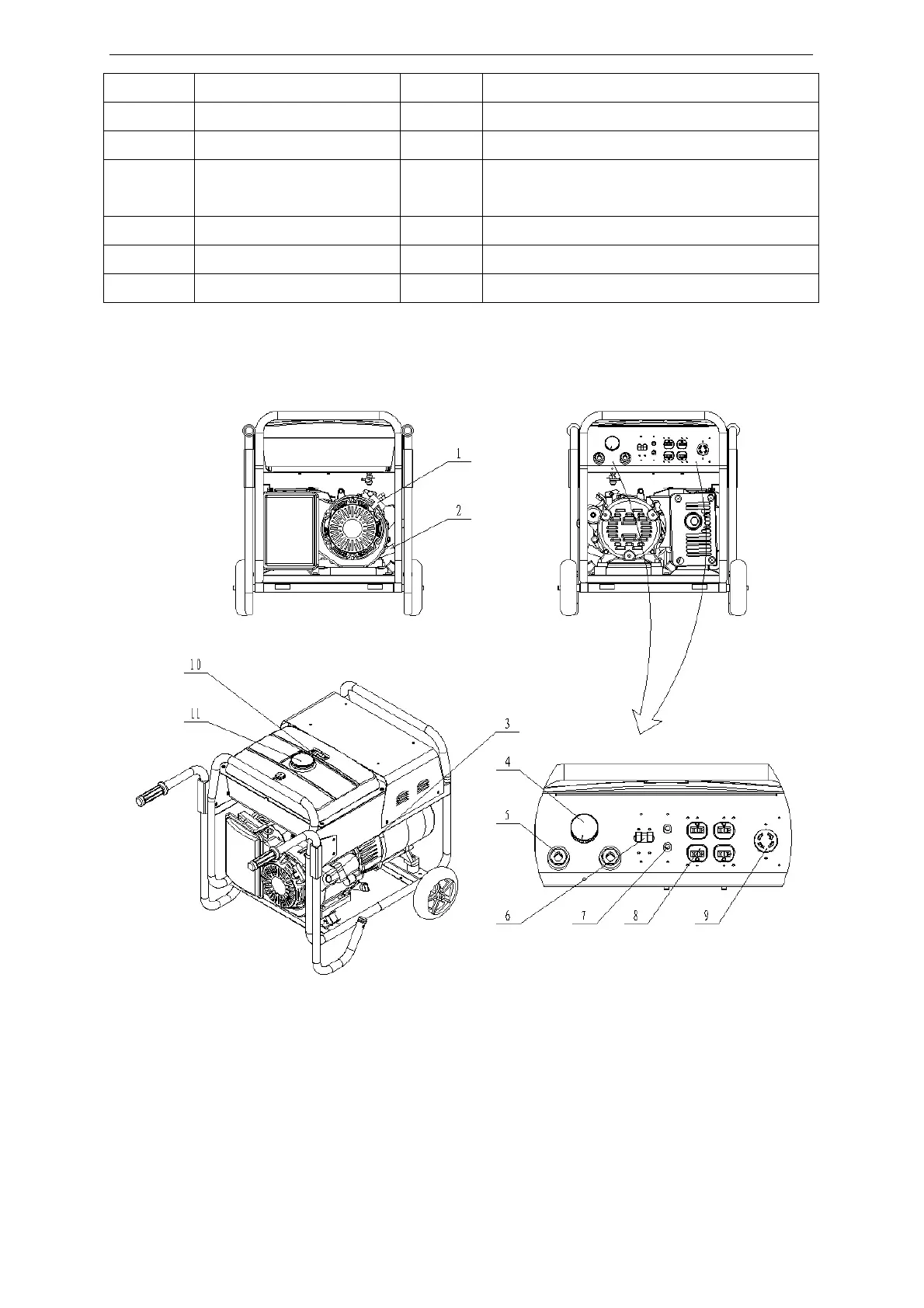

4.2． Control Panel
Drawing（ 1）
5、 Operation environment
5.1. Outdoor operation
5.1.1 The welder must be loaded in the place where less dust.
5.1.2 Avoid direct sunlight and place the machine at shady and cool area.
5.1.3 Place the machine at flat field in case of any shift.
5.2. Indoor operation
5.2.1 Operation should be at well ventilated place and exhaust waste gas to outside. Keep
