Fuel consume rate g/HP-H 230
Unit
（ Length × Wide × Height ）
mm
800×595× 720（ with
wheel）
903 WN
3.4． Standard applied:
* CEI 60974-1

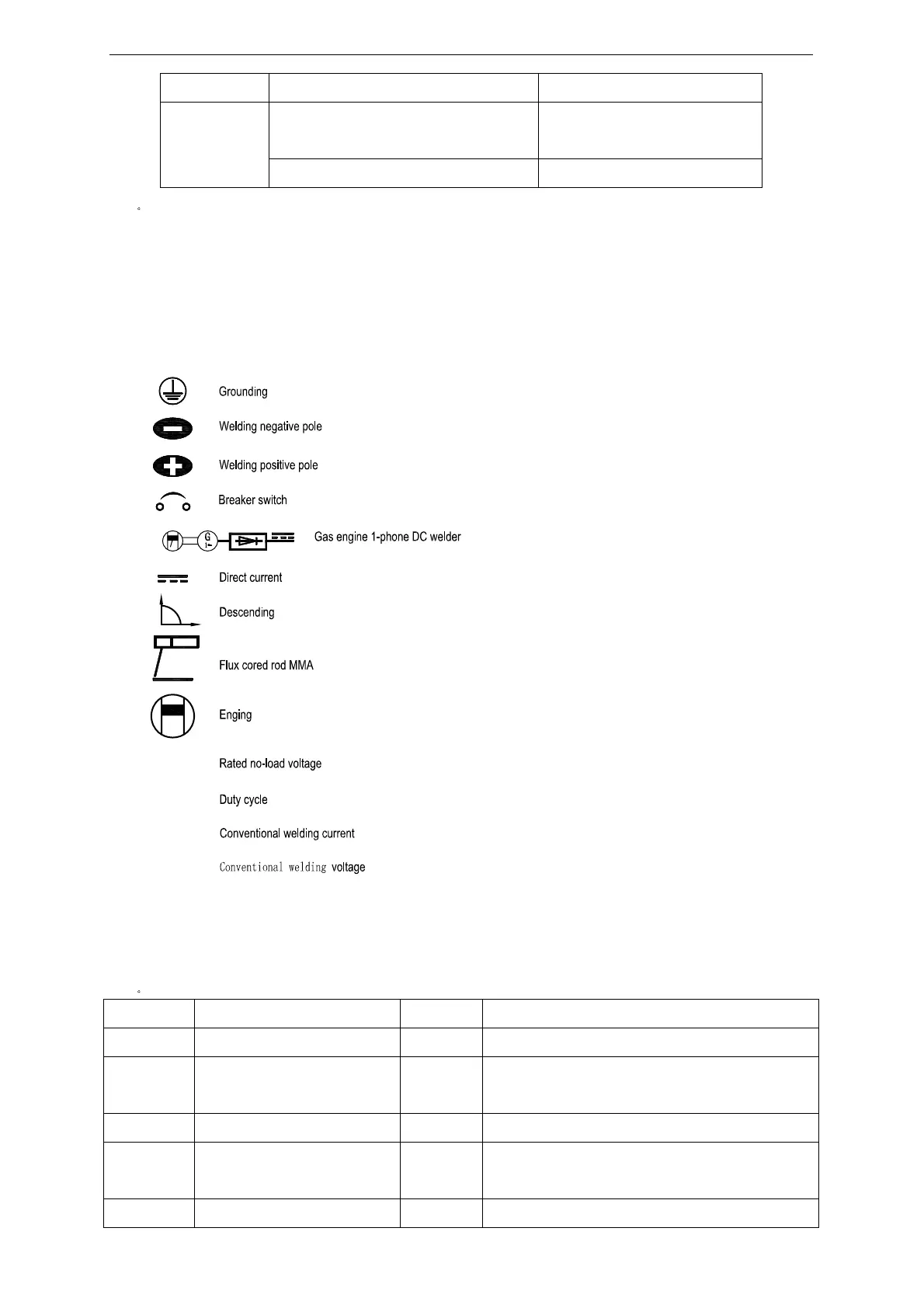

3.5. Remark & Sign of Illustration
4. Control Panel
4.1． Control panel, parts name and function
Item Name Qty. Function
1 Start handle 1 Start engine（ refer to engine manual）
2 Fuel tank cap /dipstick 2 Fuel charging and fuel quantity
measurement
3 Engine power switch 1 Start engine（ refer to engine manual）
4 Welding current
modulate knob
1 Adjust welding current
5 Welding current output 2 Connect welding cable
U0
X
I2
U2
