Clip SGD

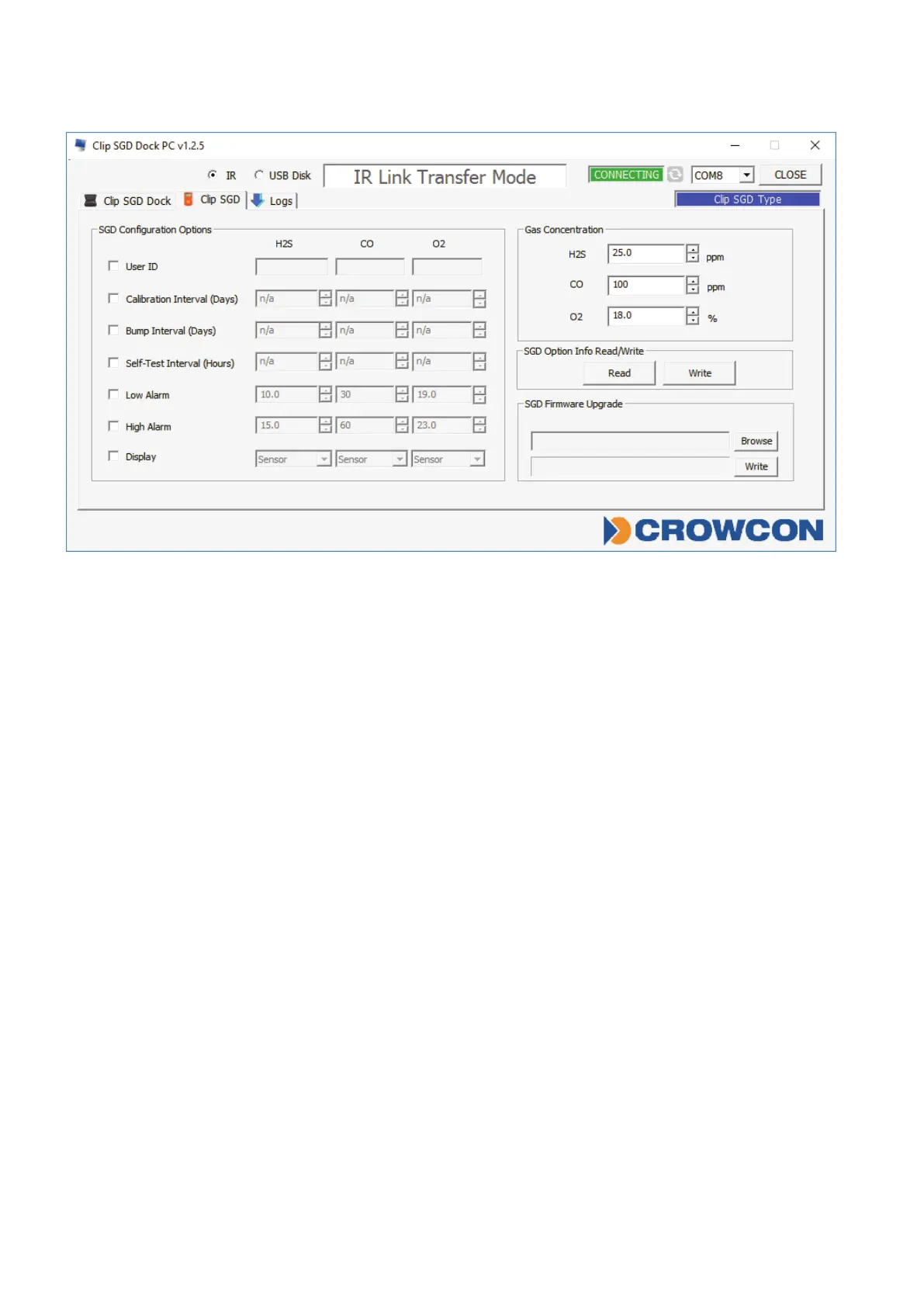

Figure 4
Gas Concentration
AllowsthegaslevelsinthecylinderconnectedtotheClipSGDDockingStationtobe
entered
• Choosegasconcentrationrequiredforcalibration,defaultsettingsareasfollows:
H
2
S:25ppm,CO:100ppm,O
2
:18%Vol
SGD Firmware Upgrade
• AllowstheClipSGDrmwareupgradeletobespecied–click‘Browse’tonavigateto
le.
• Click‘Write’todownloadle.
IR / USB Disk
ChoseeitherIRLinkorUSBSticktotransfercongurationtoandfromDockingstation
• Click‘IR’toconguredockingstationviatheClipSGDIRLink.
• Click‘USBDisk’toselectUSBStickconnectedtoPCandtransfercongurationtothe
USBStick–thiscanthenbeinsertedintotheDockingStationandtheconguration
uploaded.
• SGDOptionInfoRead/Write:Selectto‘Read’or‘Write’congurationtoDockingStation
viaIRlinkortoUSBStick
