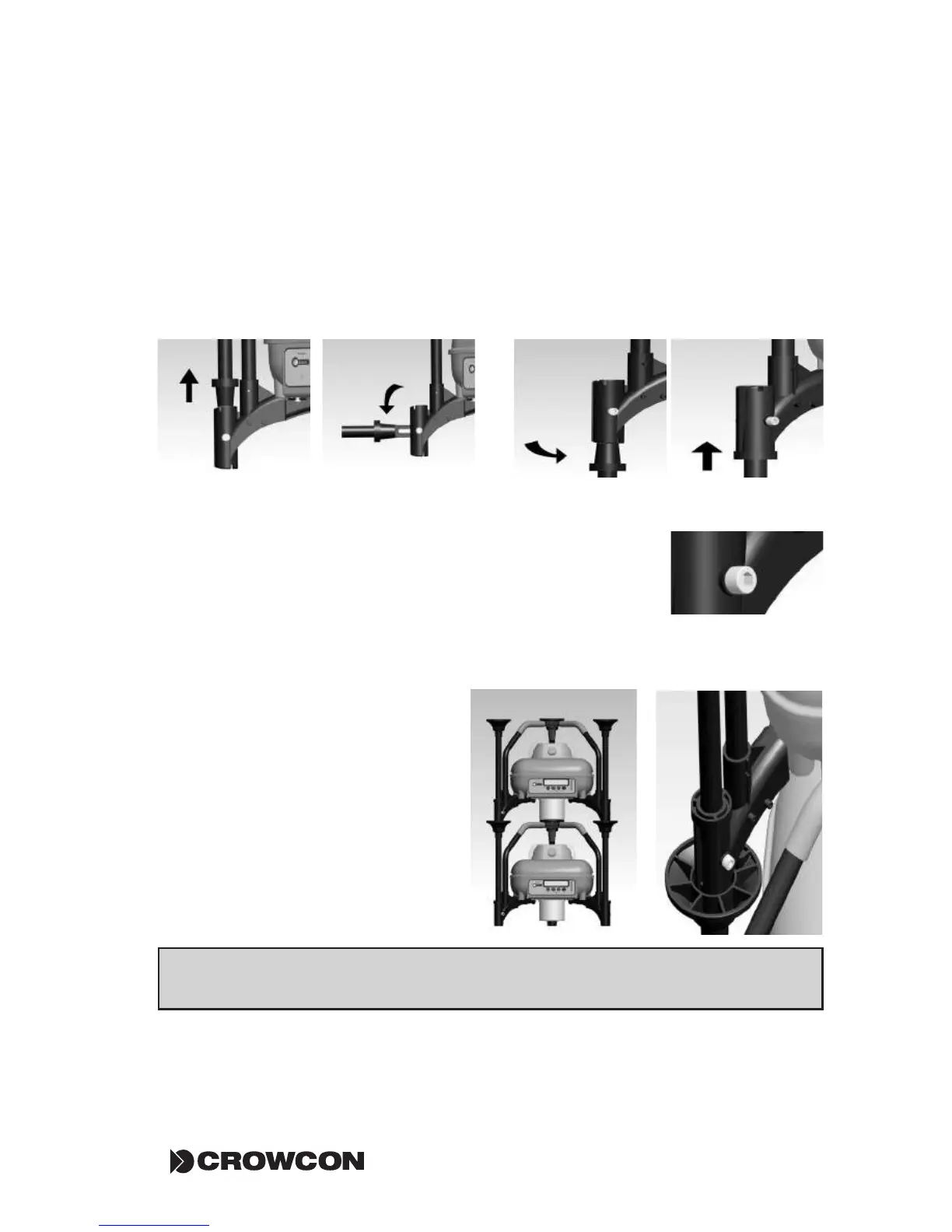

To unfold the legs
a) pull the leg upwards until it reaches its stop,
b) rotate the leg downwards away from the instrument until it is pointing
downwards,
c) push the leg upwards until it firmly fits into position.
a) b) c)
If the legs are too loose or are required to be permanently
deployed, gently tighten the fixing bolt at the leg hinge.
Similarly, if the leg joint is too tight simply loosen the fix-
ing bolt at the leg hinge, but dot not loosen it too far.
When packing the unit away, simply reverse the above
procedure.
When the legs are in the folded
position the Detective+ is designed
to be stacked one upon the other,
but it is recommended no more
than three units at a time are
stacked together.
When stacking units the user must be careful to comply with local
health and safety regulations.
Detective+ Unpacking
Units MUST NOT be stacked in this fashion during transportation unless they are
otherwise suitably secured.
