CDi Series Power Amplifiers
Operation Manual
3 Operation (continued)
J. AC Line Connector
NEMA 5-15P (15A).
K. Output Connectors
4-position barrier strip with connectors for dual loudspeakers
or bridge-mono loudspeaker. Dual connectors work with 2-8
ohm or 70V loads. Bridge-mono connectors work with 4-8
ohm or 140V loads.
L. Fan
Front-to-rear forced airflow.
M. Input Connector
Two 3-pin removable Phoenix-type connectors each accept
a balanced line-level input signal.
N. HiQnet USB Connector
Type B, connects to a USB port on a PC.

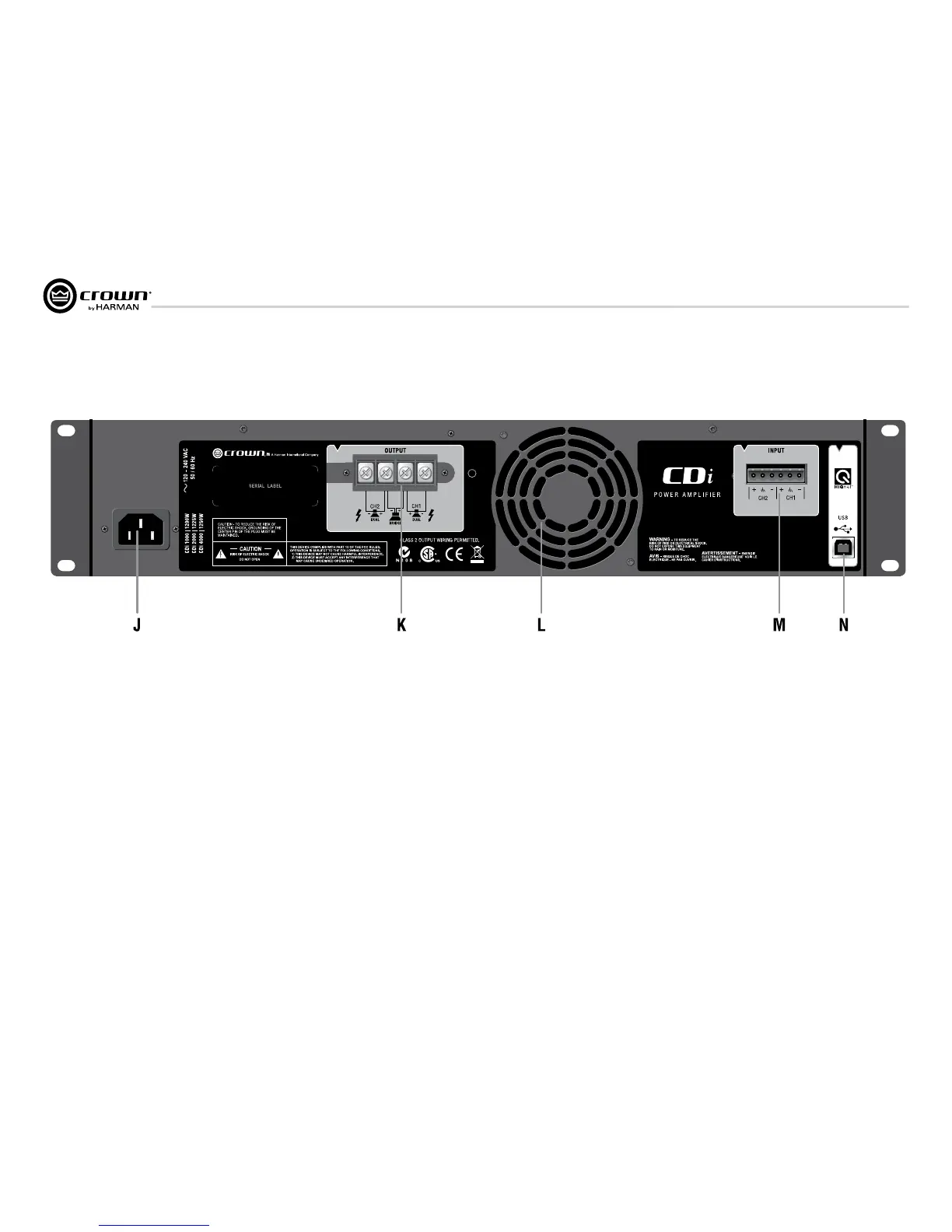

3.3 CDi 1K, 2K, 4K Back Panel Connectors
