Crown ce 4000 - CE4000 PS Output Heatsink Assembly

Parts 5-7
130485-1 Rev. B
CE 4000 Service Manual
©2002 Crown Audio, Inc.
7 X TYPE 340HEATSINK COMPOUND S2162-6
6 6 8-32 X .312 TORX PNPH SEM 103415-10805
5 6 CLIP, CE4000 2 FINGER 127552-1
4 4 DIODE, 300V ULTRAFAST APT15D30K D9053-6
3 8 MOSFET, 250V 16A MTP16N25E C10207-6
2 2 WAFER, 2.7000 X .90 X .04 CERAMIC 127564-1
1 1 EXTRU, CE4000 R-HALF HS MACHINED 127978-3
ASM. NUMBER:
128011-3
RECOMMENDED ASSEMBLY TORQUES
ITEM NO. C.P.N. TORQUE SETTINGS
6 103415-10805 22-24 IN LBS.

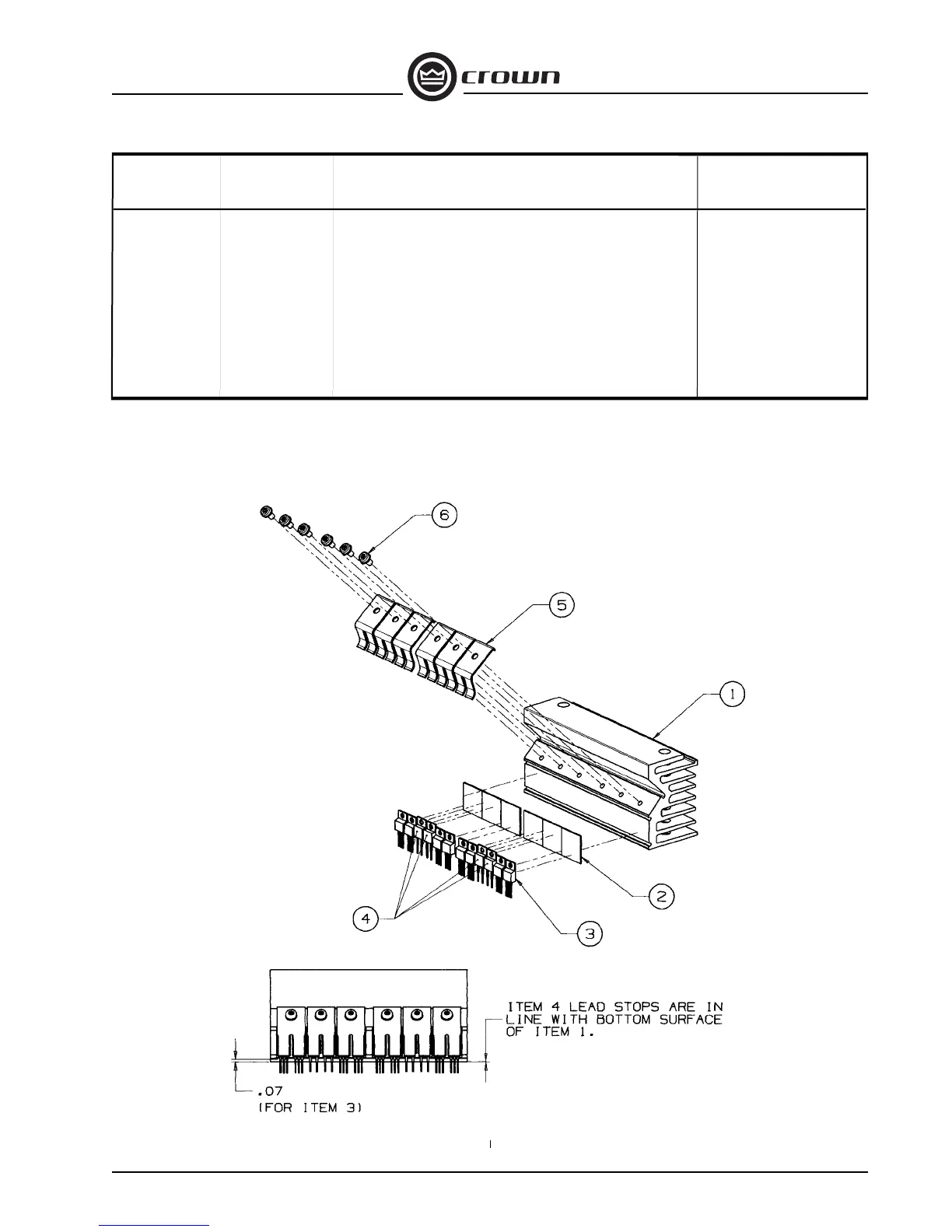

Figure 5.5 CE4000 PS Output Heatsink Assembly (Exploded View)
5.3.5 CE4000 PS Output Heatsink Assembly
Refer to Figure 5.5 for Exploded View
Item Quantity Description Part # (CPN)
