Crown Contractor Series - Figure 8.5 CL2 Power Draw, Current Draw and Thermal Dissipation; Figure 8.6 CL4 Power Draw, Current Draw and Thermal Dissipation

Page 34
Contractor Series Power Amplifiers
Reference Manual

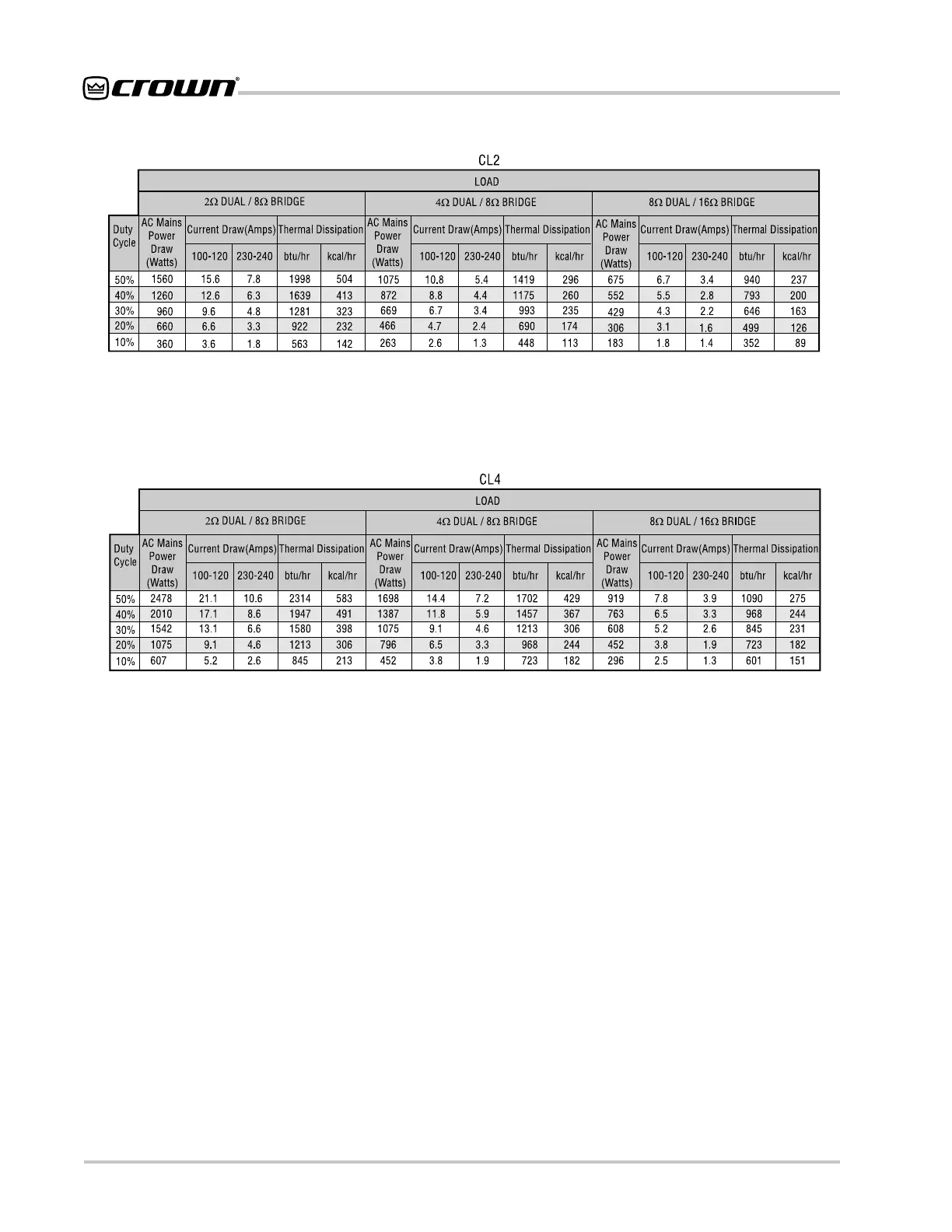

Figure 8.5 CL2 Power Draw, Current Draw and Thermal Dissipation at Various Duty Cycles
Figure 8.6 CL4 Power Draw, Current Draw and Thermal Dissipation at Various Duty Cycles
