R~E~VC!. O'--- _________ --'D~.'_'75'.CP~O~W:,oE~R~AM~P::=L!CJF_=JE.::!R _____ ~(J@l[l£1l)Ull9

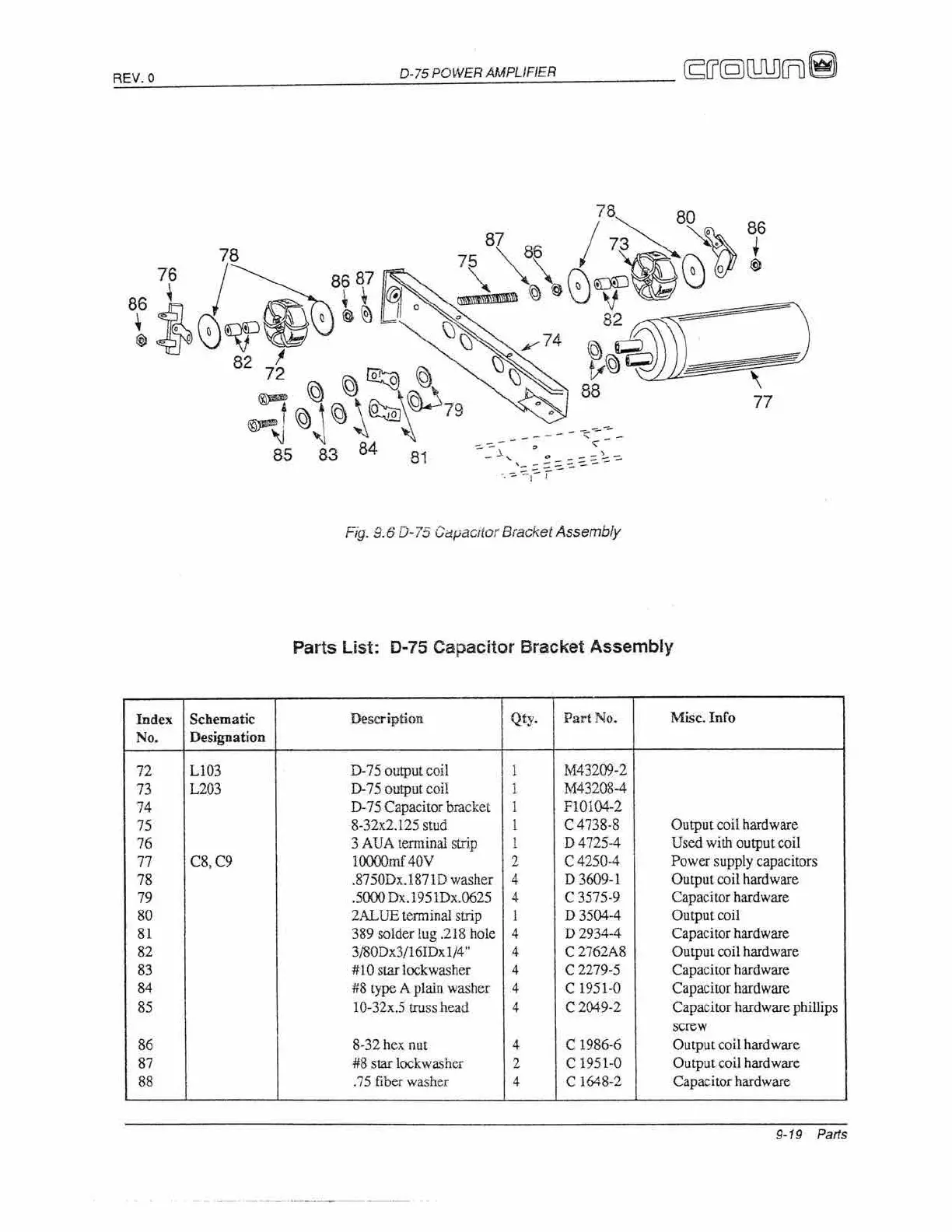

Fig . 9.6 D-75 Ci:1paCIIOr B rac ket Assembly
Parts List: D-75 Capacitor Bracket Assembly
Ind ex Schematic
De sc ri ption Qty.
Part No . Misc. Info
No .
Designation
72 L1D3
D· 7S output coil 1 M43209·2
73
L203 D- 75 output coi l 1
M43208-4
74
D- 75 Capacitor bracket 1 FlOI04·2
75
8-32x2.125 stud 1 C 4738·8
Output coil hardware
76 3 AVA temlinal strip 1
D4725-4 Used with output coil
77 C8.C9
lOOOOmf4QV
2 C4250-4
Powe r supply capacitors
78
.8750Dx.1871D washer 4 D 3609- \ Output coil hardware
79
.5000 Ox.19510x.0625 4 C 3575-9 Capacitor hardware
80 2ALUE tenninal strip I D 3504·4
Output coil
81 389 solder lug .218 hole 4
D 2934·4 Capacitor hardware
82 3/800x 3/ 16lDxl/4" 4 C2762A8
Output coil hardware
83
#10 star lockwashcr 4 C 2279-5 Capacitor hardware
84
#8 type A plain washer 4 C 1951· 0 Capacitor hardware
85
lQ.-32x.5 truss head 4 C 2049·2 CapacilOT hardware phillips
screw
86 8-32 hex nut
4
C
1986·6
Output coil hardware
87 #8 star lockwashcr
2
C
1951·0 Output co il hardware
88
.75 fiber washer
4
C 1648-2 Capacitor hardware
9-19 Parts
