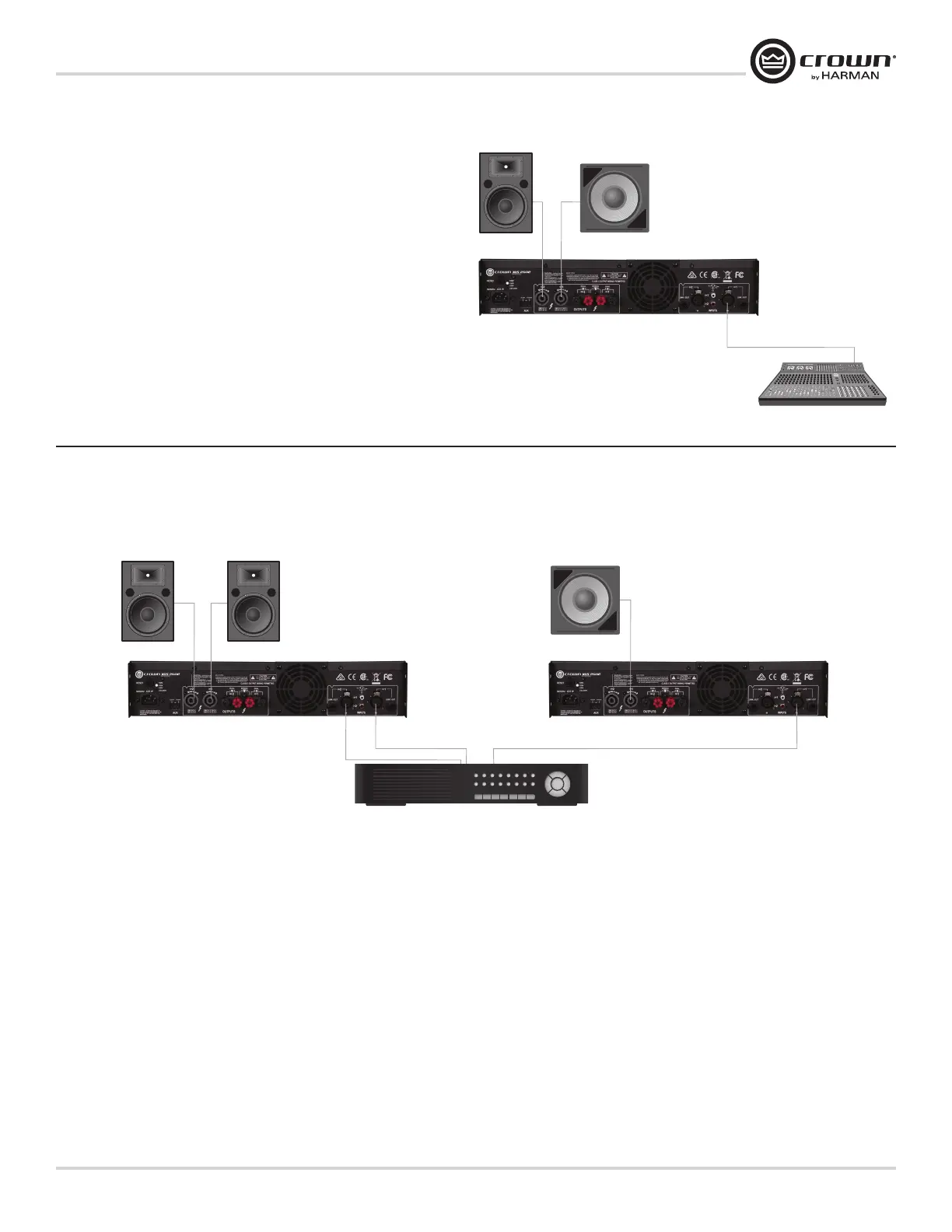

Crossover Mode
Stereo Bi-Amp System
A theater 2.1 sound amplification system can be easily set up using one amplifier in STEREO mode for the L and R channels and a second amplfier in BRIDGE mode with a
Low Pass filter set to the appropriate cutoff frequency.
Monaural Bi-Amp System
1. Configure the system as described in Input-Y section on page 8. The
woofer connected to Channel 1 and the mid/high drivers to Channel 2.
2. Set up Channel 1 as a Low Pass filter and use your crossover frequency as
the filter's cutoff frequency.
3. Set up Channel 2 as a High Pass filter using the same filter cutoff
frequency as in Step 2 above.
System Conguration Examples

Crown DriveCore XLS 1002 Specifications

General

Channels	2
Power Output (8 Ohms)	215W
Power Output (4 Ohms)	350W
Power 8 Ohms	215W
Frequency Response	20 Hz - 20 kHz
Total Harmonic Distortion (THD)	< 0.5%
Signal to Noise Ratio	> 100 dB
Input Sensitivity	1.4 V
Cooling	Convection
THD at full power	< 0.5%
Signal-to-Noise Ratio	> 100 dB
Damping Factor	> 200
Input Impedance	20 kOhm balanced, 10 kOhm unbalanced
Connectors	XLR, TRS, RCA
Power Requirements	100-240V, 50/60Hz
