Macro-Tech MA-24X6 & 36X12 Power Amplifiers
Operation Manual
2.4 Choose Input Wire
and Connectors

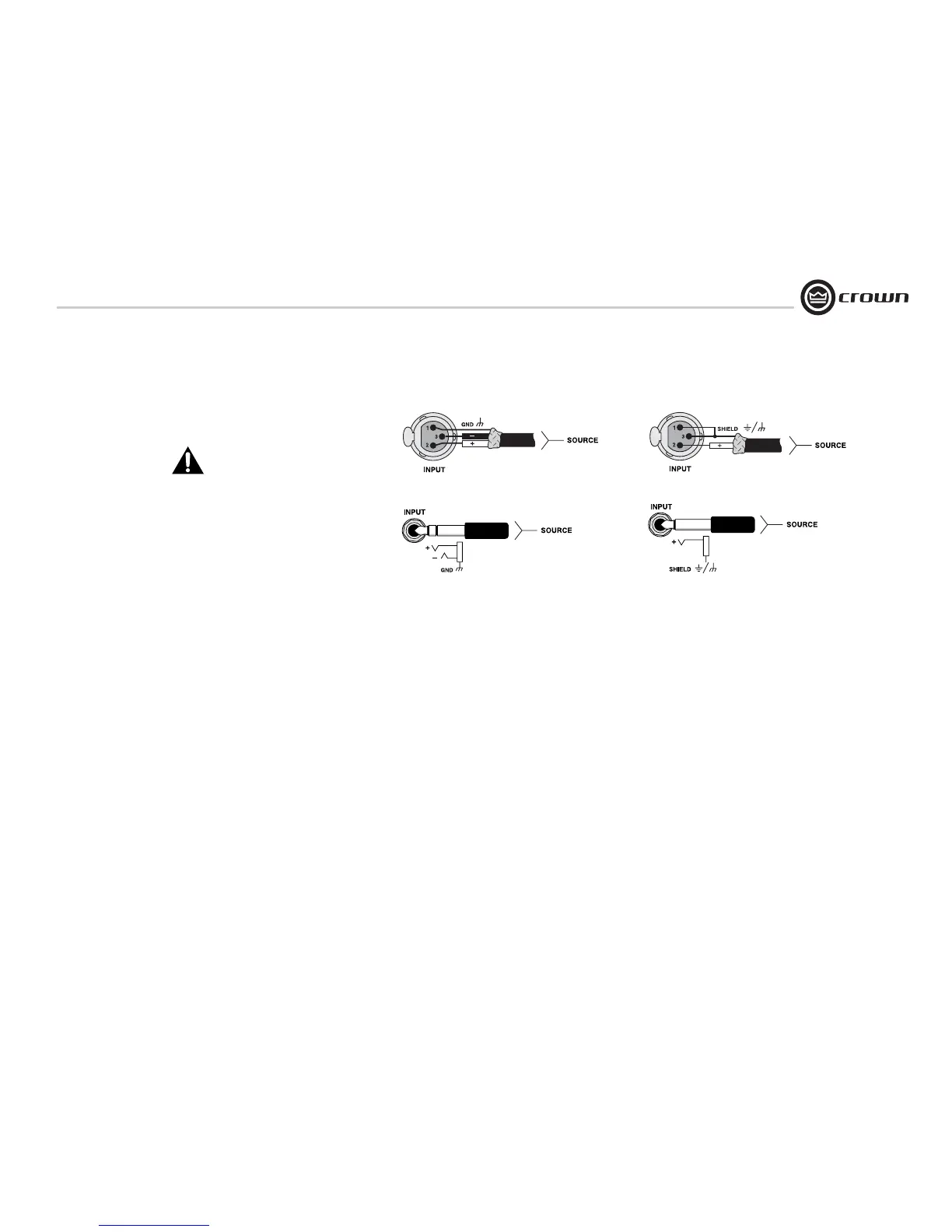

Figure 2.3 shows connector pin assignments for
balanced wiring, and Figure 2.4 shows connec-
tor pin assignments for unbalanced wiring.
NOTE: Custom wiring should only be
performed by qualified personnel.
Balanced Line
Unbalanced Line
Figure 2.3 Balanced Input
Connector Wiring
Figure 2.4 Unbalanced Input
Connector Wiring
