Operation Manual
MA-5002VZ Power Amplifier
page 14
O. PIP2 Module
Standard module (PIP2-FXQ) provides a
3-pin female XLR connector and a female
TRS jack for signal input to each channel.
P. TRS Input Jack (Standard PIP2
Module
One per channel; female TRS input jacks
are provided.
Q. XLR Inputs (Standard PIP2
Module
One per channel, female XLR input con-
nectors are provided.
R. Ground Lift Switch (Standard PIP2
Module)
Isolates the input signal grounds from the
AC (chassis) ground to help prevent
ground loops.

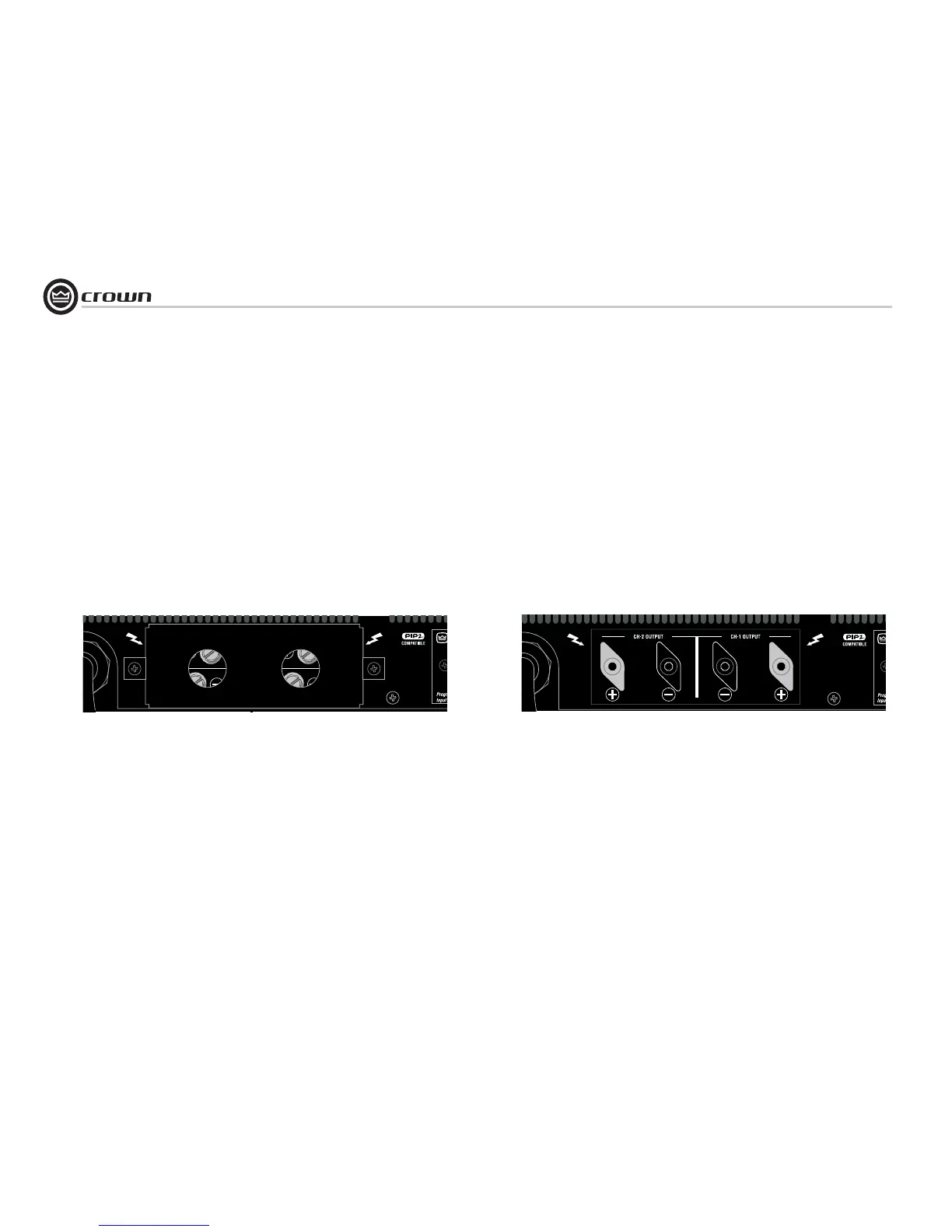

Figure 4.3 Output Cover
Figure 4.4 International Output Binding Posts
4 Operation (continued)
