XLS Series Power Amplifiers
page 8
Operation Manual
2.6 Wire Your System
2.6.1 Stereo Mode Using the 5-way
Binding Posts
Typical input and output wiring is shown in
Figure 2.7
INPUTS: Connect input wiring for both channels.
OUTPUTS: Maintain proper polarity (+/–) on
output connectors.
Connect Channel 1 loudspeaker’s positive (+)
lead to Channel 1 positive (red) terminal of amp;
repeat for negative (–). Repeat Channel 2 wiring
as for Channel 1.
Figure 2.7 shows how to wire stereo speakers to
the 5-way binding posts. The next page shows
how to wire stereo speakers to the single
Speakon
®
output connector.
2 Setup

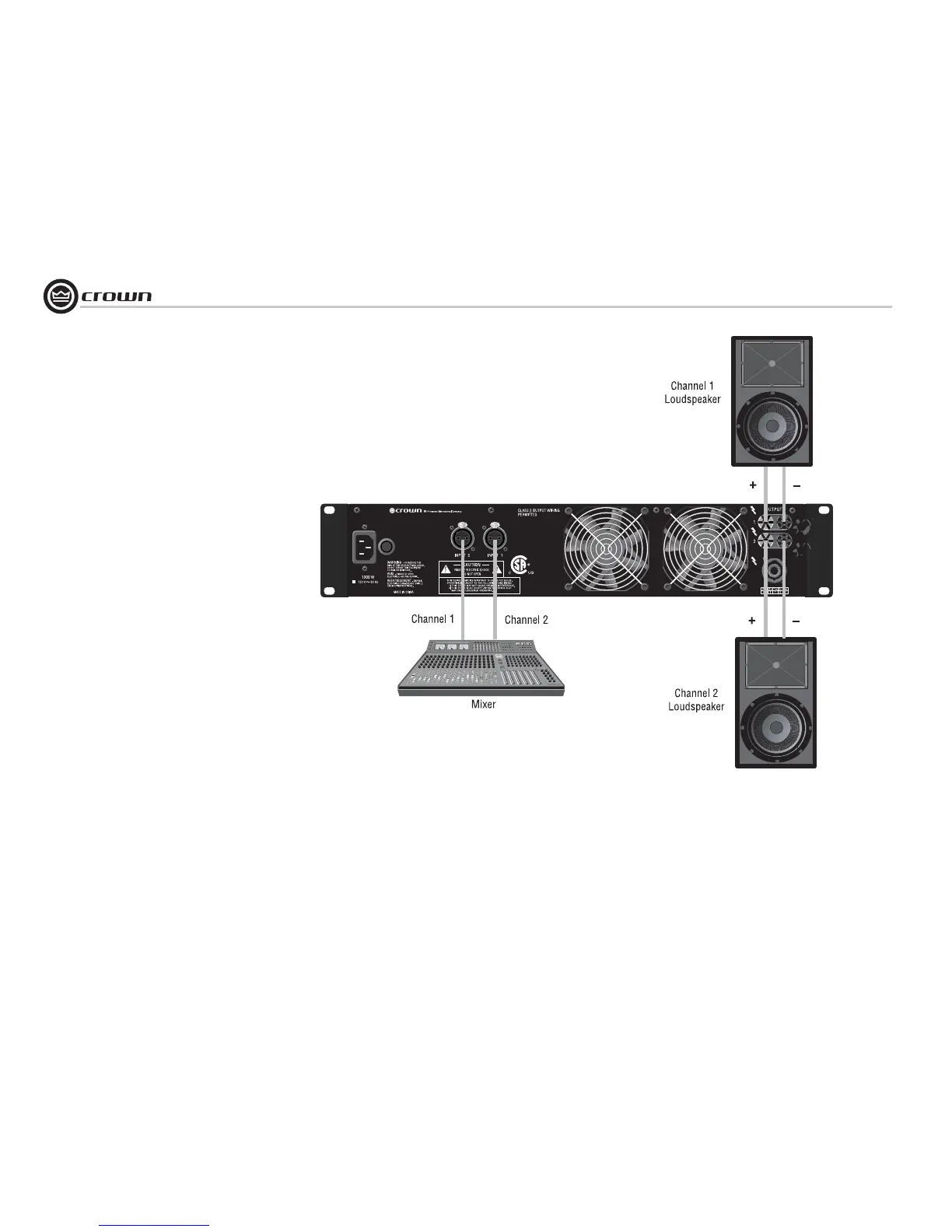

Figure 2.7
System Wiring, Stereo Mode Using
the 5-way Binding Posts
To Next Page
