Crunch GTR2000D - GTR1100.2 2-Channel Amplifier Applications; Full Range Stereo Application; Mono Bridged Application

GTR1100.2 2 CHANNEL AMPLIFIER APPLICATIONS
3
MONO
3. Crossover frequency control checklist:
This is the most basic application for the GTR Series 2 channel amplifiers.
N/A for full range operation.
1. Interconnect cable checklist: 4. Line Level:
Connect the LINE INPUTS to the Radio/CD with good quality RCA cables.
Refer to the section “Setting up systems after installation for best performance”.
2. Crossover Switch:
The X-OVER switch must be in the FULL position.
NOTE: Minimum final loudspeaker impedances:
The MODE switch must be in the STEREO position.
4 &-2-Ohms stereo mode or 4-Ohms mono mode
This amplifier will not do 1-Ohm stereo or 2/1-Ohm mono operation.
Switch setting checklist:
This application illustrates the basic mono bridging method for all Crunch 2 channel
- The X-OVER switch must be in the LPF position.
amplifiers.
Crossover frequency control setting checklist:
Interconnect cable checklist:
LPF: 80Hz (11 o’clock)
A MONO signal source is required, such as would be available from the mono sub bass
output of an active crossover, whether stand alone, or built into a head unit or equalizer.
Minimum final loudspeaker impedance:
Important: Do not be tempted to connect the hot, or positive outputs, from any source
- 4-Ohms mono.
together to obtain a mono signal, as this could very well damage the output stage of that
source.
It is necessary to feed the SAME signal to both left and right inputs via a Y-adapter RCA
cable. Connect the mono speaker positive terminal to the RIGHT +, and its negative
terminal to LEFT -.

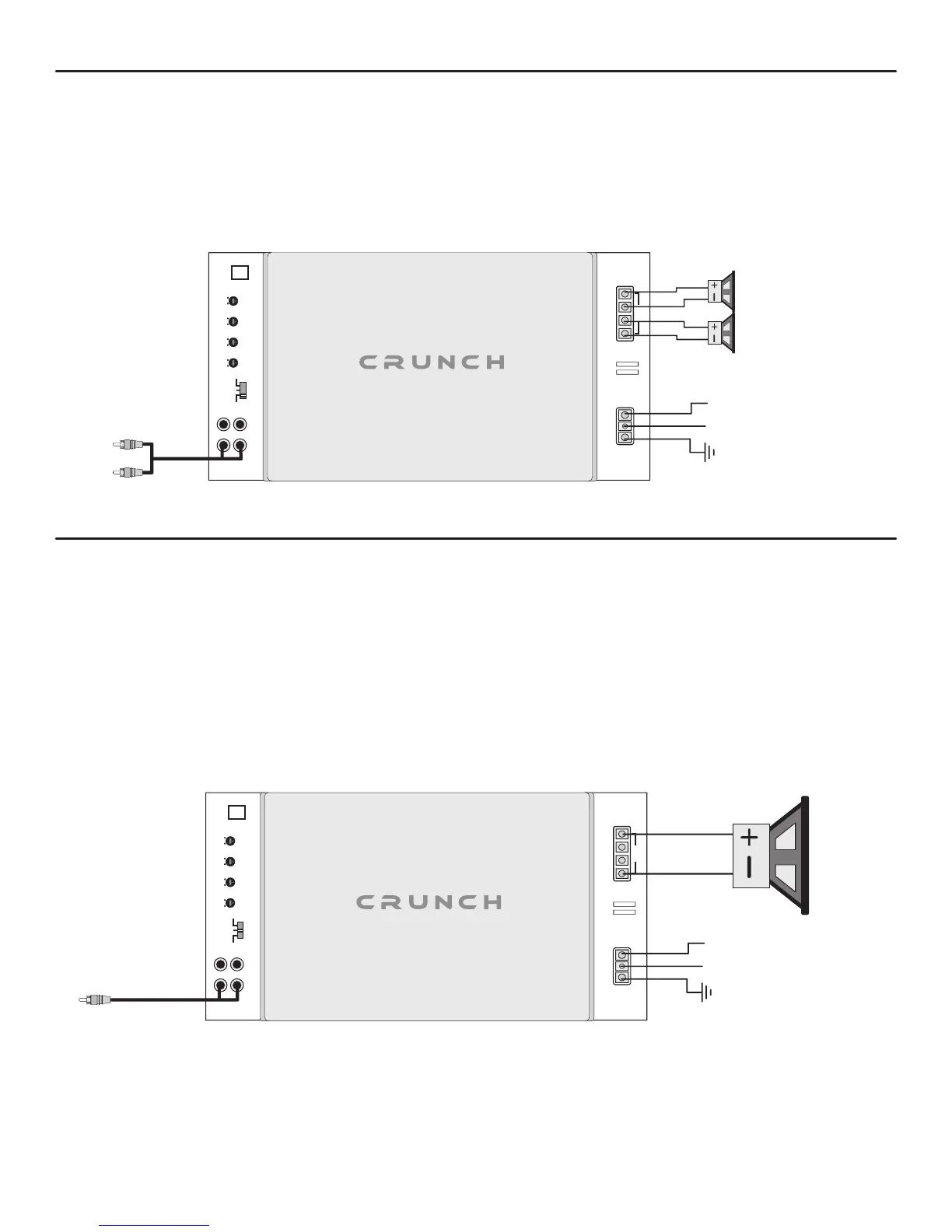

FULL RANGE STEREO
SUBWOOFER
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 volts VIA FUSE
POWER INPUT
SPEAKER OUTPUT
BRIDGED
- LEFT + - RIGHT +
FUSE
GND REM +12V
FULL RANGE
SPEAKERS
REMOTE TURN-ON
CHASSIS GROUND
TO BATTERY + 12 volts VIA FUSE
POWER INPUT
SPEAKER OUTPUT
BRIDGED
- LEFT + - RIGHT +
FUSE
GND REM +12V
LINE OUT LINE INPUT
LINE OUT LINE INPUT
R R
R R
L L
L L
0dB 9dB 30Hz 250Hz 60Hz 1.2KHz 6V 0.2V
0dB 9dB 30Hz 250Hz 60Hz 1.2KHz 6V 0.2V
BASS EQ LPF HPF LEVEL
BASS EQ LPF HPF LEVEL
X-OVER
X-OVER
HPF LPF FULL
HPF LPF FULL
REMOTE
CONTROL
REMOTE
CONTROL
FULL RANGE
STEREO LINE INPUT
FULL RANGE
MONO LINE INPUT
VIA Y-ADAPTER
FROM MONO SOURCE
