INPUT
LEVEL
REMOTE
CONTROL
0.2 V 5V40Hz 150Hz
LOW
PASS
15Hz 55Hz
SUB
SONIC
0dB 12dB
BASS
BOOST
INPUT LEVEL
Accepts line level (RCA) inputs
from 0.2 to 5 Volts
OUTPUT
Provides a full range line level
(RCA) output that allows the use
of additional amplifiers

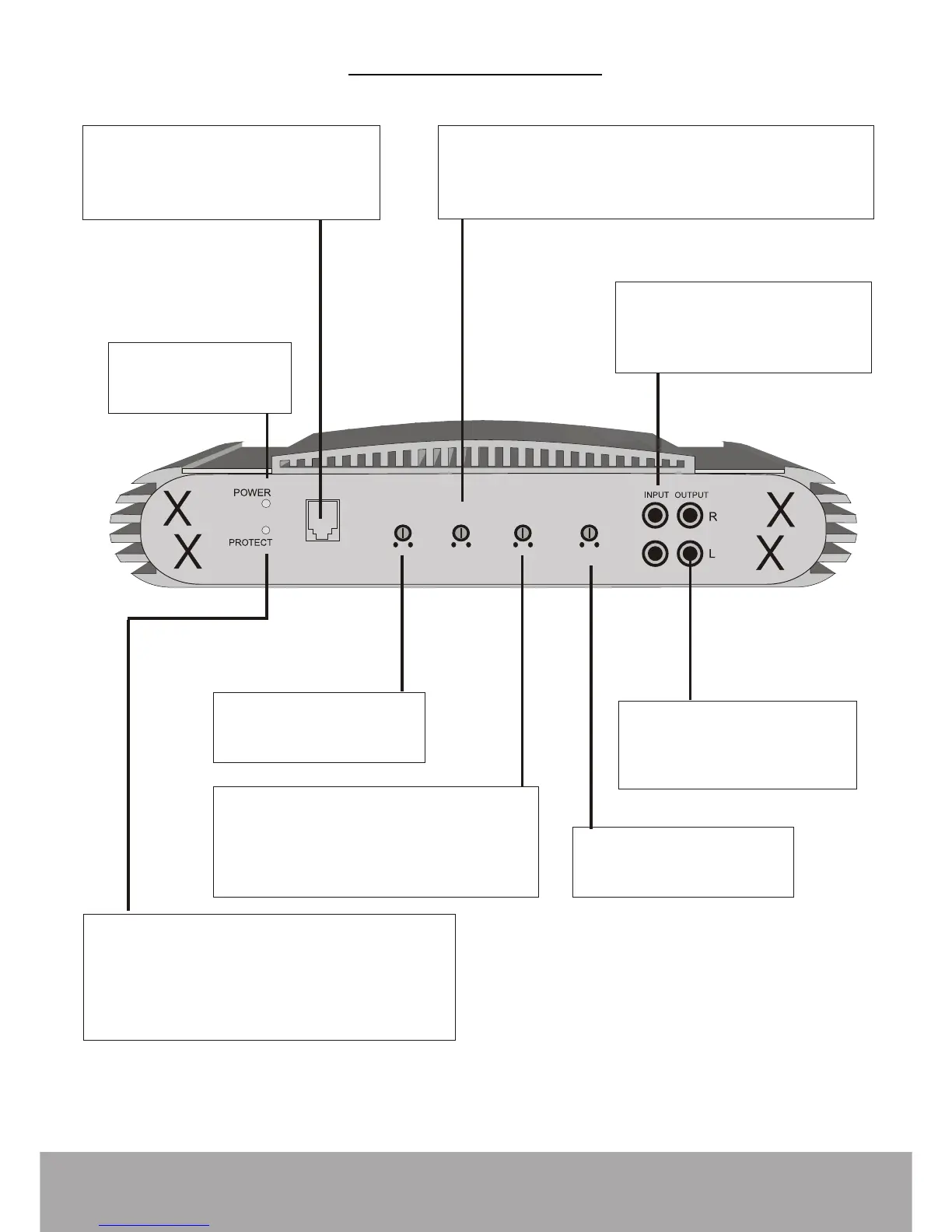

Amplifier - Features
INPUT RCA Jacks
This allows you to connect the head
unit via RCA (cinch) cables with the
amplifier.
BASS BOOST
Allows you to adjust the bass
boost from 0dB up to 12dB
REMOTE CONTROL
The jack is for use with the enclosed remote
control. Only the low pass signal will be
controlled.
PROTECT - LED
It indicates the fault operation of the amplifier. When the
fault conditions (overload, excessive heat or short circuit
of speaker) arise, the protection circuit is engaged to
protect both the speakers and the amplifier against
damage
POWER - LED
It indicates amplifier has
turn on signal
LOWPASS
The lowpass filter eliminates the higher
frequencies. The built in low pass filter is fully
variable from 40Hz to 150Hz with a rolloff of
12dB/octave
SUBSONIC
The Subsonic filter sets the lower cut-off frequency and protects
the Subwoofer from damage. The subsonic frequency is fully
variable from 15Hz to 55Hz
