CSL DualCom Pro 2 User Manual

MANUFACTURER PANEL CONNECTION CABLE/PLUG ON
SUPPLIED
CABLES
Honeywell Galaxy RS485
4 Pin
(cable provided)
Green
Blue
Red
-
-
-
RTN
RS485-B
RS485-A
Orisec All TTL
4 Pin
(cable provided)
Green
Blue
Red
-
-
-
RTN
TTL-T
TTL-R
Pyronix Euro/Enforcer RS232
6 Pin
(cable provided)
Green
Blue
Red
-
-
-
RTN
RS232-R
RS232-T
Texecom Premier/Elite TTL
5 Pin
(cable provided)
Green
Blue
Red
-
-
-
RTN
TTL-R
TTL-T
HKC 1070/10270 TTL
4 Pin
(cable provided)
Green
Blue
Red
-
-
-
R-TTL
RTN
TTL-T
For RISCO, Eaton, UTC and other panels, please purchase the relevant cable from CSL Live. For other connections
or further instructions on Control Panel programming, panel guides can be found by clicking the panel type (after
selection) via the My Base App, by scanning the QR code below or visiting the Installer Zone of our website.

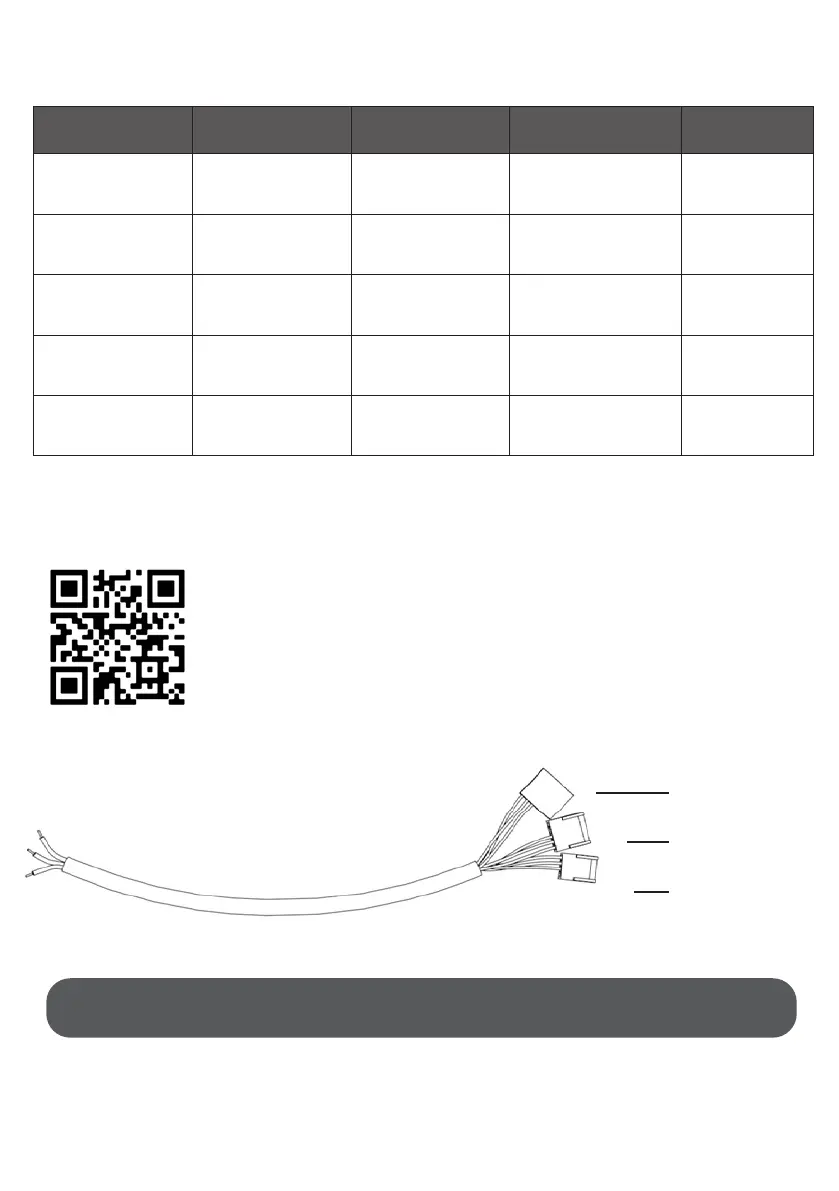

Figure 8 - Serial Cable (RS232/485/TTL)
6 Pin - Pyronix
5 Pin - Texecom
4 Pin - Honeywell /
Orisec / HKC
Figure 7 - Panel Connection Information
9
YOU MUST POWER DOWN THE CONTROL PANEL AND DUALCOM PRO 2 BEFORE CONNECTING THE
SERIAL LEAD TO AVOID DAMAGE
