3.1.2 POWER SUPPLY

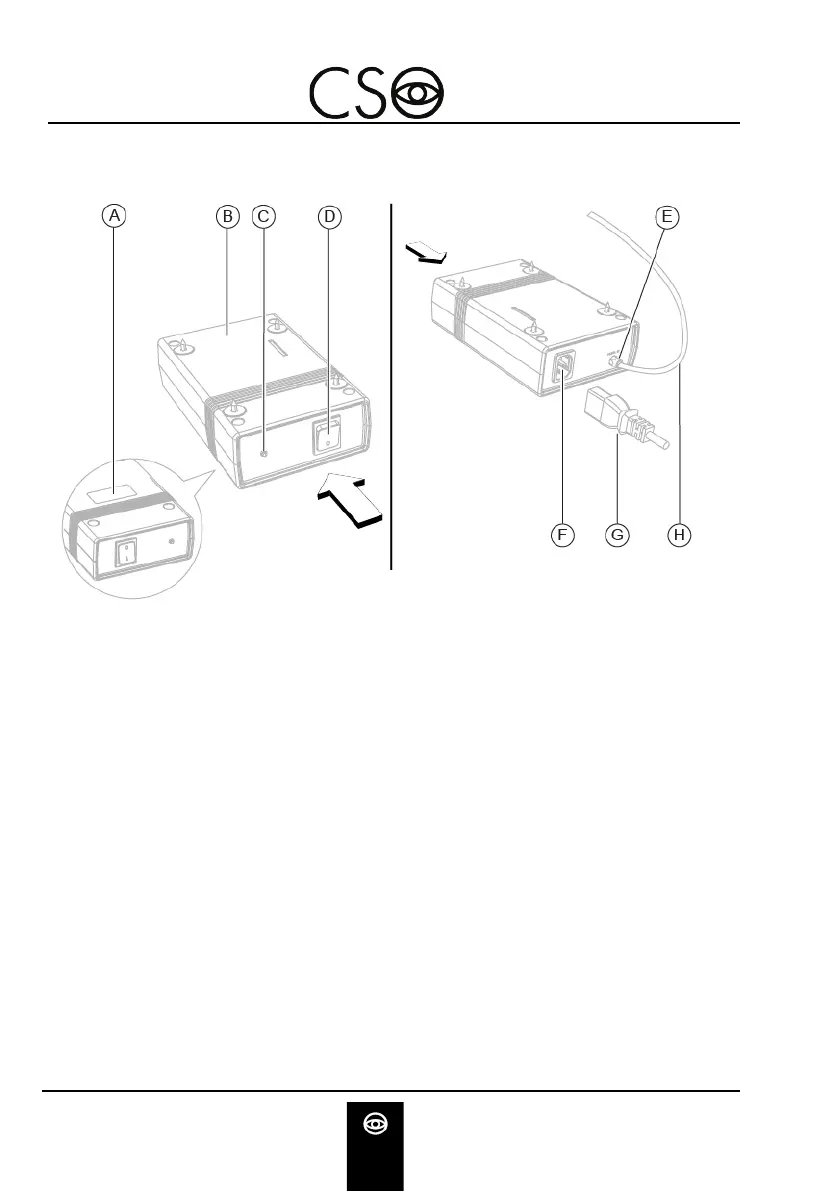

Fig 8 - Power supply
Pos
Description
A
Data plate
B
Power supply
C
Power ON control light
D
ON/OFF switch
E
Power supply out connector
F
Power supply mains connector
G
Power supply cable
H
Device power supply cable
