3.1.3 CHIN REST

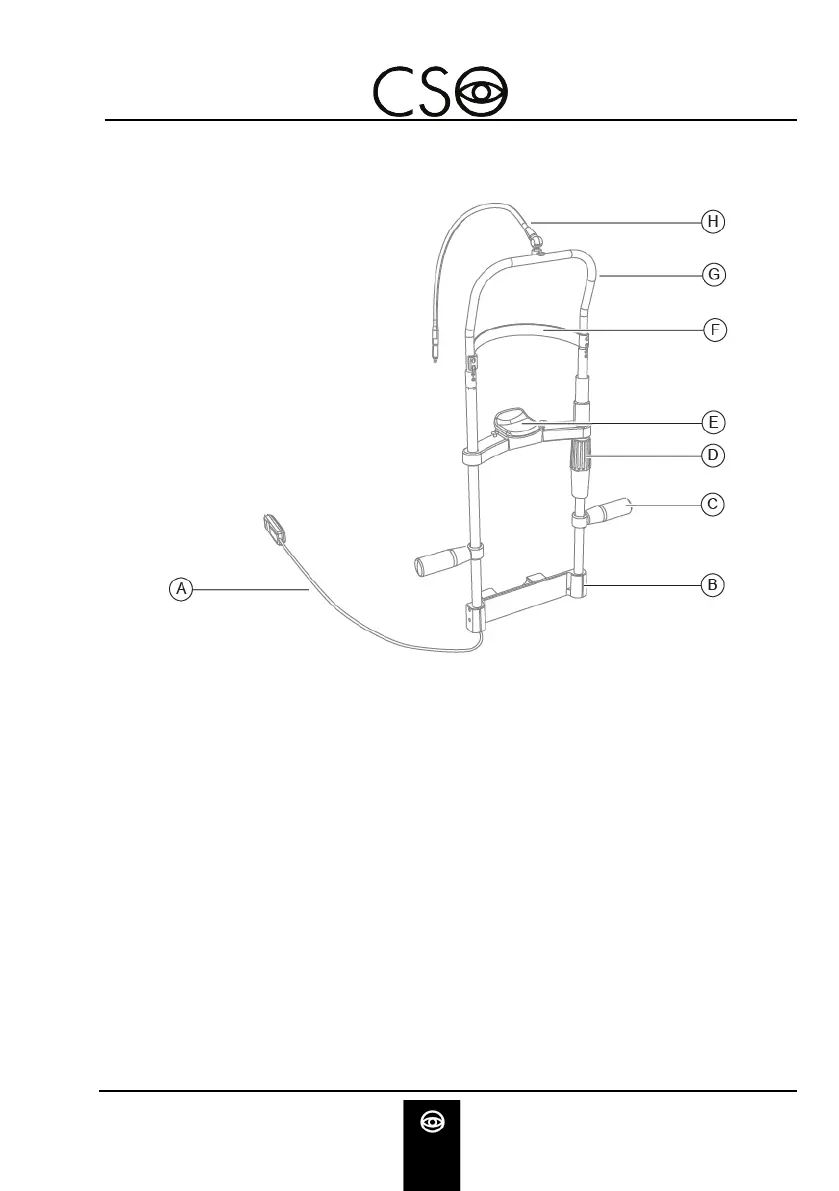

Fig 9 - Chin rest
Pos
Description
A
Connection cable for fixation point
B
Chin rest support
C
Handle
D
Knob
E
Chin cup
F
Forehead rest
G
Chin rest structure
H
Fixation point
